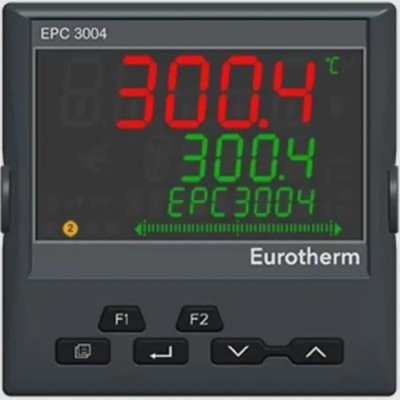

Eurotherm Panel PID Controller 1 Input 1 Relay DC Logic SSR 24V 96mm x 101mm EPC3004
Specifications
| Country of Origin | Poland |
|---|---|
| Display Type | LCD |
| Brand | Eurotherm |
| Length | 101mm |
| Model | EPC3004 |
| IP Rating | IP65 |
| Width | 96mm |
| Mount Type | Panel |
| Number of inputs | 1 |
| Output type | 1 Relay, DC, Logic/SSR |
| Series | EPC3004 |
| Input Type | Voltage, Current, Thermocouple |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet/IP and BACNet protocol support |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 24V |
| Panel Depth | 90mm |
Key Features
- Equipped with 1 relay output supporting DC logic and SSR 24V control.
- Operates within a temperature range of 0°C to 55°C ensuring reliable performance.
- Compact panel mount design with dimensions 96mm width, 101mm length, and 90mm depth.
- Features a clear LCD display for easy monitoring and operation.
- Supports multiple input types including voltage, current, and thermocouples for versatile measurement.
- Includes advanced Ethernet/IP and BACNet protocol interfaces for seamless industrial connectivity.
- Constructed to IP65 standard for dust and water resistance in harsh environments.
- Designed for Industry 4.0 and IIoT applications with fast native Ethernet and high configurability.
Product Description
Eurotherm EPC3004 panel PID controller offers high precision temperature control with 1 input and 1 relay output suitable for industrial thermal process automation. Operating at a maximum supply voltage of 24V, it features PID control technology and a user-friendly LCD display for accurate parameter monitoring.
The controller supports inputs such as voltage, current, and thermocouples, allowing adaptable integration across various thermal management applications. Its compact panel-mount design with dimensions 96mm width, 101mm length, and 90mm panel depth allows easy installation in control panels. Rated at IP65, it provides protection against dust and water ingress, suitable for industrial environments.
Connectivity is enhanced by native fast Ethernet with RJ45 and support for Modbus, Ethernet/IP, and BACNet protocols, making the EPC3004 ideal for Industry 4.0 and Industrial Internet of Things (IIoT) systems. This controller also includes Achilles Level 1 certification for cybersecurity resilience and optional Factory Mutual approved temperature limit functionality.
With enhanced Eurotherm PID control algorithms, it ensures precise and repeatable process control meeting stringent aerospace and industrial specifications. Manufactured in Poland and compliant with RoHS standards, it suits a diverse range of industrial applications including manufacturing, HVAC, process control, and water treatment facilities.
Equipped with 1 relay output supporting DC logic and SSR 24V control. Operates within a temperature range of 0°C to 55°C ensuring reliable performance. Compact panel mount design with dimensions 96mm width, 101mm length, and 90mm depth.
Features a clear LCD display for easy monitoring and operation. Supports multiple input types including voltage, current, and thermocouples for versatile measurement. Includes advanced Ethernet/IP and BACNet protocol interfaces for seamless industrial connectivity.
Constructed to IP65 standard for dust and water resistance in harsh environments. Designed for Industry 4.0 and IIoT applications with fast native Ethernet and high configurability. Manufactured in Poland adhering to RoHS compliance ensuring environmental standards.
This Eurotherm EPC3004 controller is an essential component for industrial automation requiring accurate temperature process control. Explore more Temperature Controllers and automation solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range of 0°C to 55°C.
This model supports multiple input types including voltage, current, and thermocouples.
The dimensions are 96mm in width, 101mm in length, and 90mm in depth.
It features 1 relay output supporting DC logic and SSR control.
The Eurotherm EPC3004 is rated IP65, providing protection against dust and water ingress.
It includes support for Ethernet/IP and BACNet protocols, facilitating seamless industrial connectivity.
The maximum supply voltage is 24V.
It features an LCD display for easy monitoring and operation.
It is manufactured in Poland.
This model complies with RoHS standards.
It is designed for panel mounting.
It is suitable for various industrial applications including manufacturing, HVAC, process control, and water treatment facilities.
