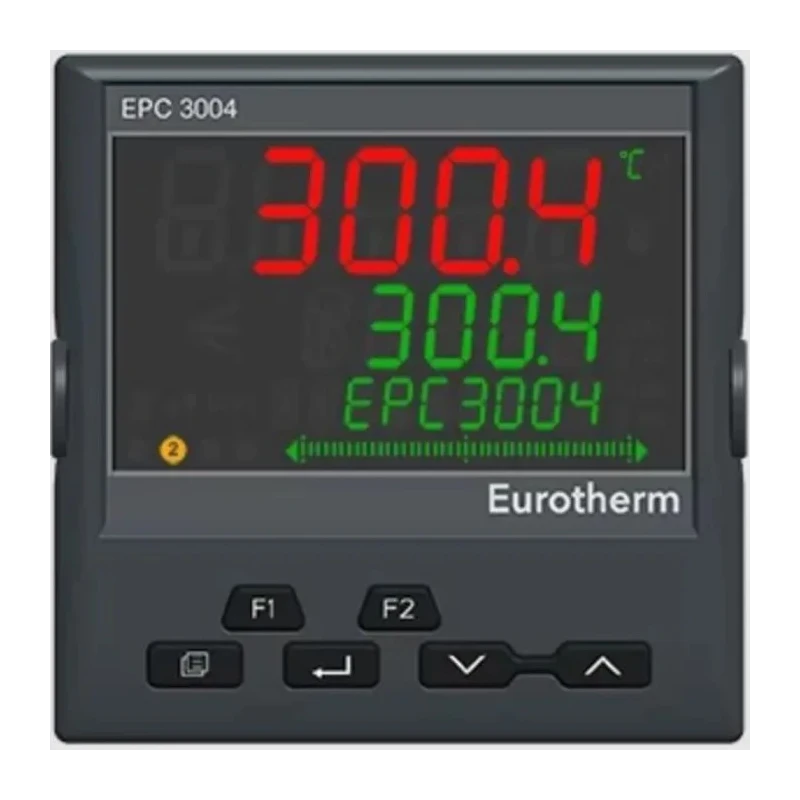

Eurotherm Panel PID Controller 1 Input DC, 2 Relay 24V with LCD Display EPC3004

Eurotherm EPC3004 Panel PID Controller is a precision single-loop programmable controller designed for temperature and process control in industrial environments. This model features one DC input compatible with voltage, current, and thermocouple signals, offering flexibility for a variety of sensors and applications. The controller provides two relay outputs operating at 24V, facilitating effective control outputs for heating or cooling systems.

The device is panel-mountable, housed in an IP65 rated enclosure to protect against dust and water ingress, making it suitable for harsh industrial conditions. The integrated LCD display allows operators to easily monitor parameters and configure settings for optimal process control. Operating temperature range is from 0°C to 55°C, making it adaptable to typical industrial ambient conditions.

The EPC3004 supports advanced Eurotherm PID control algorithms to optimize thermal process yields, with precision control accuracy up to 0.1%. Its communication capabilities include native high-speed Ethernet with support for Modbus, Ethernet/IP, and BACNet protocols, enabling integration into Industry 4.0 and Industrial Internet of Things (IIoT) applications. The device is also Achilles Level 1 certified for cybersecurity resilience, providing safe operation in connected environments.

This model measures 101mm in length, 96mm in width, and 90mm panel depth, facilitating compact installation in control panels. It features screw-type terminals for secure wiring connections. The product is RoHS compliant, adhering to environmental and safety standards.

Manufactured in Poland, the Eurotherm EPC3004 PID Controller is suitable for industrial process control, HVAC systems, manufacturing automation, and other applications requiring precise temperature regulation and process management.

Supports PID control with high accuracy suitable for industrial applications. Single input compatible with voltage, current, and thermocouple sensors. Equipped with 2 relay outputs at 24V for versatile control options. Panel mounting with IP65 rated enclosure for reliable protection.

Features a clear LCD display for easy data monitoring and configuration. Operates within temperature range of 0°C to 55°C for stable performance. Complies with RoHS standards ensuring environmental safety. Native Ethernet connectivity supports Modbus, Ethernet/IP, and BACNet protocols for IIoT integration.

Manufactured in Poland ensuring quality and reliability. Explore our catalog for advanced Temperature Controllers including the Eurotherm EPC3004 series to enhance your industrial automation and control systems.
