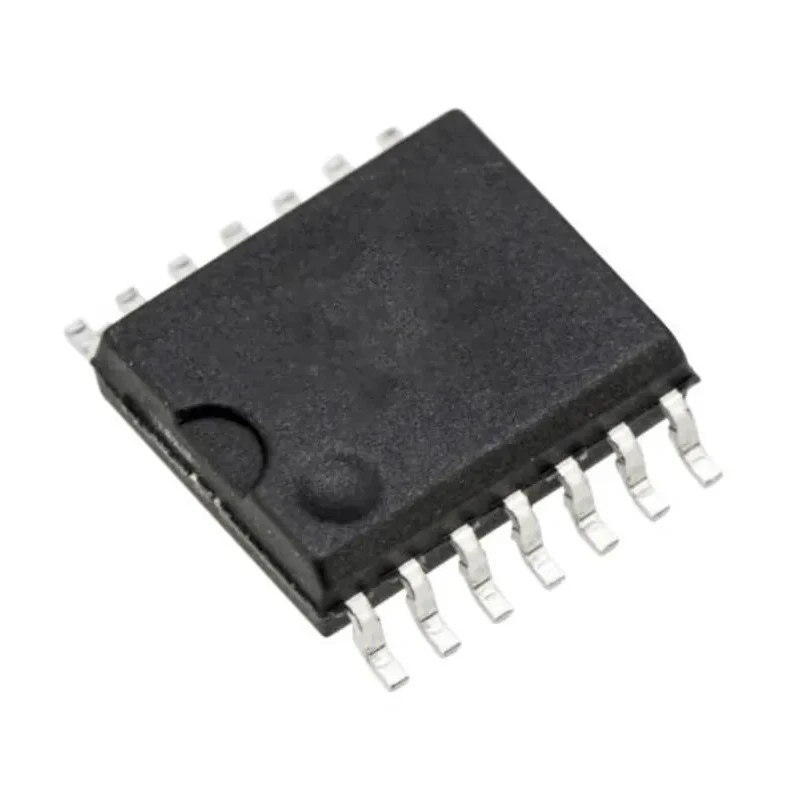

Microchip 12 bit AVR ATTINY Microcontroller 20 MHz 8kB FLASH 14-Pin SOIC ATTINY824-SSU

Microchip ATTINY824-SSU is a 12 bit AVR Microcontroller featuring an AVR CPU with a hardware multiplier, providing clock speeds up to 20 MHz. It includes 8kB of flash memory, 1 KB SRAM, and 128 Bytes of EEPROM, housed in a compact 14-Pin SOIC surface mount package suitable for compact and low-power embedded applications.

This microcontroller supports advanced peripherals with 9 channels of 12-bit ADCs and an analog comparator with an internal DAC voltage reference for precise analog measurements. It contains 3 timers including 2x 16-bit Timer/Counter type B modules, enabling complex timing and control functions required in industrial and commercial embedded solutions.

The device offers versatile serial communication interfaces such as 2x USART, SPI, and I2C, facilitating connectivity with a wide range of digital sensors and modules in automation, control, and IoT systems.

Designed to operate over a wide voltage range from 1.8V to 5.5V and temperature range from -40°C to 85°C, it is suitable for demanding industrial environments that require robust performance and reliability.

Further, the Microchip ATTINY824-SSU meets RoHS3 and REACH environmental standards ensuring compliance for environmentally conscious product designs.

This product is ideal for embedded systems in industrial control, consumer electronics, and automotive applications that require high-precision analog inputs combined with efficient 12-bit AVR processing power.

The microcontroller features an AVR CPU with a hardware multiplier for efficient processing. It operates at up to 20 MHz clock frequency with low power consumption. Equipped with 8 KB Flash program memory, 1 KB SRAM, and 128 Bytes EEPROM.

Includes advanced peripherals such as 9 12-bit ADCs and 1 analog comparator with DAC reference. Offers 3 timers and multiple serial communication interfaces including 2x USART, SPI, and I2C. Supports a minimum operating temperature of -40°C and maximum up to 85°C for rugged industrial use.

Compact 14-pin SOIC surface mount package enables efficient PCB integration. Complies with RoHS3 and REACH standards for environmental safety. Minimum supply voltage is 1.8V with maximum supply voltage at 5.5V ensuring wide range power compatibility.
