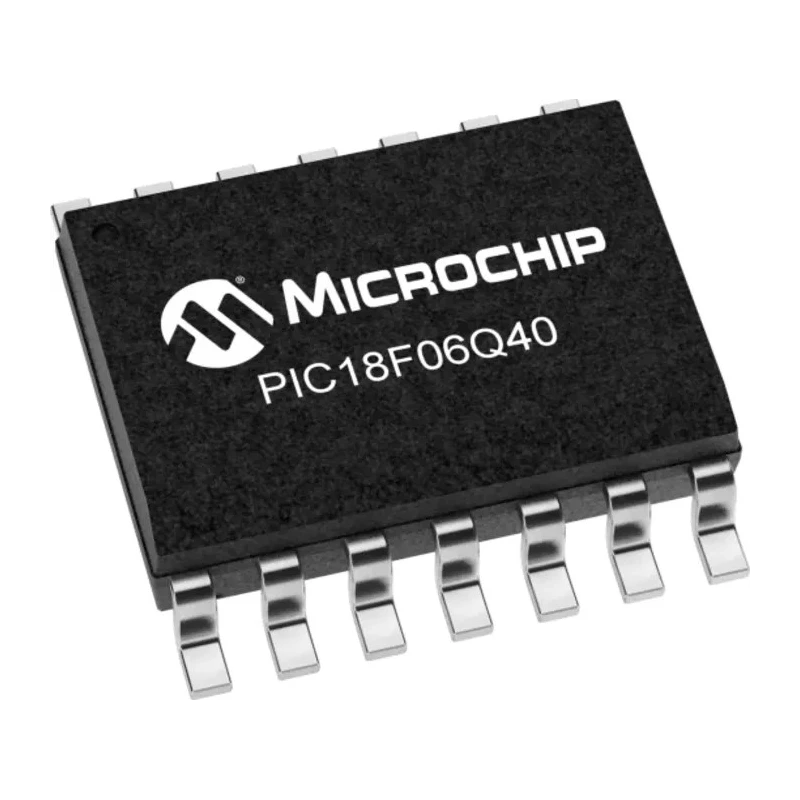

Microchip 8 bit PIC Microcontroller, PIC18F06Q40-I/SL, 64 MHz, 64kB FLASH, 14-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.27mm |
| Length | 8.9mm |
| Model | PIC18F06Q40-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Features an 8 bit PIC device core suitable for embedded applications.
- 64kB FLASH program memory and 4kB RAM for efficient processing.
- Operates between 2.5V to 5.5V supply voltage with RISC architecture.
- Includes 10 bit ADCs, two analogue comparators, and five timers for versatile sensor interfacing.
- Compact SOIC surface mount package with 14 pins for space constrained designs.
- Operating temperature range from -40°C to 85°C for reliable industrial use.
- Equipped with 12 programmable input/output pins and multiple communication interfaces.
- RoHS compliant and designed for real-time control and sensor applications.
Product Description
Microchip PIC18F06Q40-I/SL is an 8 bit PIC microcontroller featuring a 64 MHz maximum clock frequency and 64kB of FLASH program memory, housed in a 14-Pin SOIC surface mount package. Designed for compact and efficient embedded system applications, it supports versatile real-time control and sensor interfacing.
The microcontroller core utilizes a RISC architecture to optimize processing efficiency. With 4kB of RAM and a program memory size of 64kB FLASH, it enables sophisticated program execution and data handling.
This device operates over a wide supply voltage range of 2.5V to 5.5V and covers an operating temperature span from -40°C to 85°C, making it suitable for harsh industrial environments. Its compact pin count of 14 pins suits constrained PCB layouts where space is premium.
Equipped with 10 bit ADCs, two analogue comparators, and five timers, the PIC18F06Q40-I/SL microcontroller is well equipped for complex sensor data acquisition and timing control. The 12 programmable I/O pins offer flexible peripheral connectivity options. It also features 5 bit DACs and supports direct memory access and configurable logic cells, providing enhanced embedded control capabilities.
8 bit PIC device core for embedded processing. 64kB FLASH memory and 4kB RAM for program and data storage. Wide operating voltage from 2.5V to 5.5V compliant with RISC architecture. Includes 10 bit ADCs, analogue comparators, and multiple timers.
Compact 14-Pin SOIC surface mount package for space saving. RoHS compliant and designed for real-time control and sensor applications. Operating temperature range -40°C to 85°C for industrial robustness. 12 programmable I/O pins for connectivity and control.
This microcontroller suits use in industrial automation, sensor nodes, embedded control, and real-time applications requiring compact size and efficient processing. It is an ideal choice for projects demanding low power with capable analog and digital peripherals integrated.
For more products in the Microchip microcontroller range, browse the Electronics & Electricals > Semiconductor > Microcontroller category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This microcontroller features 64kB of FLASH program memory.
It operates with a supply voltage ranging from 2.5V to 5.5V.
The PIC18F06Q40-I/SL is equipped with 12 programmable I/O pins.
It comes in a compact 14-Pin SOIC surface mount package.
This microcontroller includes 10-bit ADCs for analog-to-digital conversion.
It features five timers for various timing operations.
This model has a RAM size of 4kB.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
It utilizes a RISC architecture to optimize processing efficiency.
It is designed for real-time control and sensor applications, making it suitable for industrial automation and embedded control.
