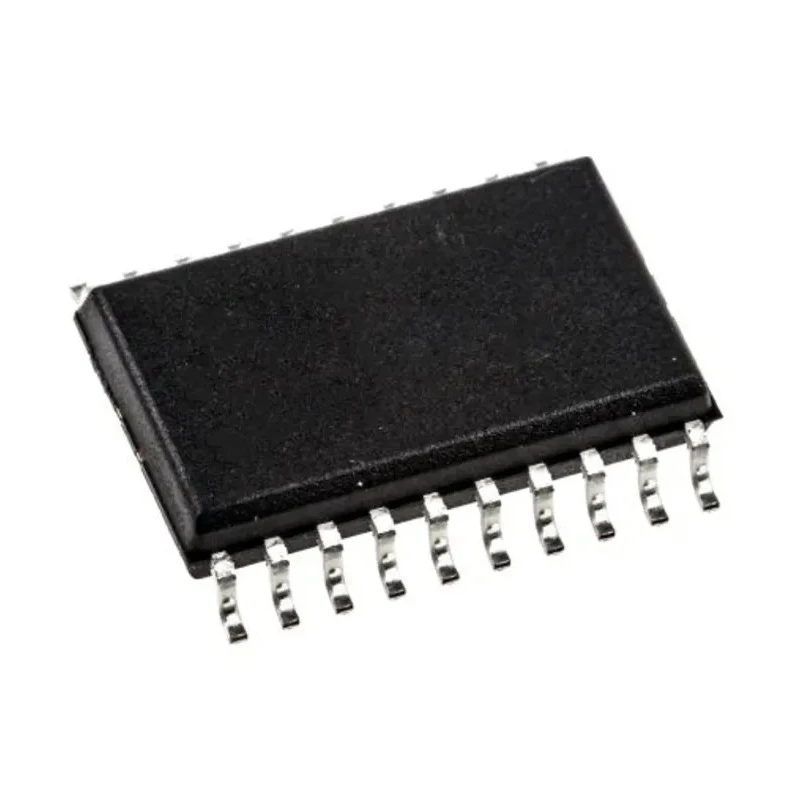

Microchip 12 bit AVR ATTINY Microcontroller 20 MHz 16kB FLASH 20-Pin SOIC ATTINY1626-SU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ATTINY1626-SU |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | ATTINY |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 1 |
| Number of Timers | 3 |
| Instruction Set Architecture | AVR |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| Serial communication interfaces | 2x USART, SPI, I2C |
Key Features
- Features 12-bit data bus width for efficient processing.
- Includes 2kB RAM and 256B EEPROM for versatile memory applications.
- Operates within supply voltage range of 1.8V to 5.5V ensuring flexible power options.
- Equipped with 12-bit differential ADC and internal DAC reference for precise analog measurements.
- Includes hardware multiplier and Core Independent Peripherals with low power consumption.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- Integrated 3 timers and one analog comparator enhance timing and signal comparison capabilities.
- Surface mount SOIC package with 7.5mm width allows compact PCB designs.
Product Description
Microchip ATTINY1626-SU is a 12 bit AVR microcontroller designed to deliver high performance with low power consumption. It features a hardware multiplier and operates at a maximum clock frequency of 20 MHz. The microcontroller includes 16kB of Flash program memory, 2kB of SRAM, and 256 bytes of EEPROM, providing ample space for embedded applications.
Encased in a 20-pin SOIC surface mount package with a width of 7.5mm, the ATTINY1626-SU is suitable for compact and space-sensitive designs. It supports a supply voltage range from 1.8V to 5.5V, making it compatible with various power systems.
The device architecture incorporates Core Independent Peripherals including a 6-channel event system, configurable custom logic, and multiple serial communication interfaces such as 2x USART, SPI, and I2C. Its 12-bit differential ADC with programmable gain amplifier and internal DAC reference supports accurate analog signal processing, ideal for sensor data acquisition in industrial and commercial applications.
The microcontroller is designed for reliable operation in demanding environments with an operating temperature range of -40°C to 85°C. It is RoHS3 and REACH compliant, supporting environmental sustainability standards.
Features 12-bit ADC with programmable gain amplifier enhancing measurement precision. Includes one analog comparator to support analog signal comparison tasks. Equipped with 3 timers providing flexible timing and counter functions for control applications.
Utilizes AVR instruction set architecture ensuring compatibility and software availability. Designed without automotive standards, focusing on general industrial and commercial uses.
Microchip ATTINY1626-SU microcontroller is ideal for industrial control, embedded systems, instrumentation, and other electronics requiring efficient processing and versatile peripheral integration. Its compact package and broad operating conditions make it suitable for a variety of applications in industrial, laboratory, and manufacturing environments.
Explore additional Microchip Microcontrollers and electronic components for your projects and industrial solutions with EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates within a supply voltage range of 1.8V to 5.5V.
This model features 16kB of Flash program memory.
It is encased in a 20-pin SOIC surface mount package with a width of 7.5mm.
The operating temperature range is from -40°C to 85°C.
It supports 2x USART, SPI, and I2C serial communication interfaces.
It includes 2kB of RAM.
Yes, it features a 12-bit differential ADC with a programmable gain amplifier.
This microcontroller includes 3 timers for flexible timing and counter functions.
It has a pin count of 20.
It is compliant with REACH and RoHS3 environmental sustainability standards.
It utilizes the AVR instruction set architecture.
