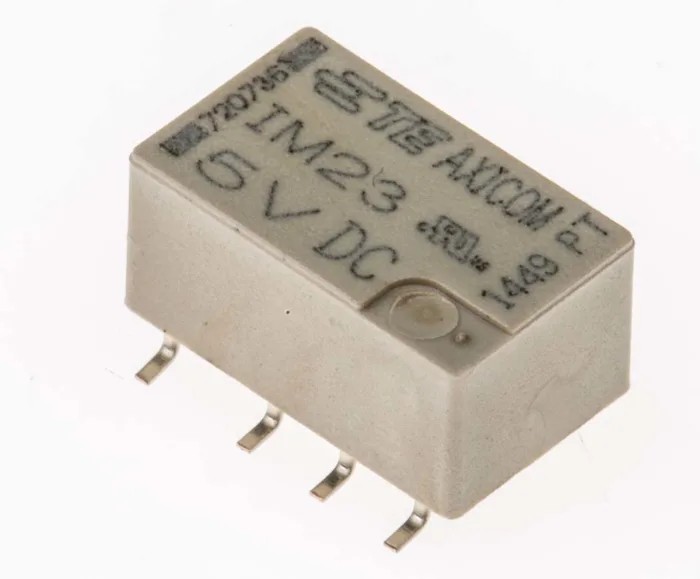

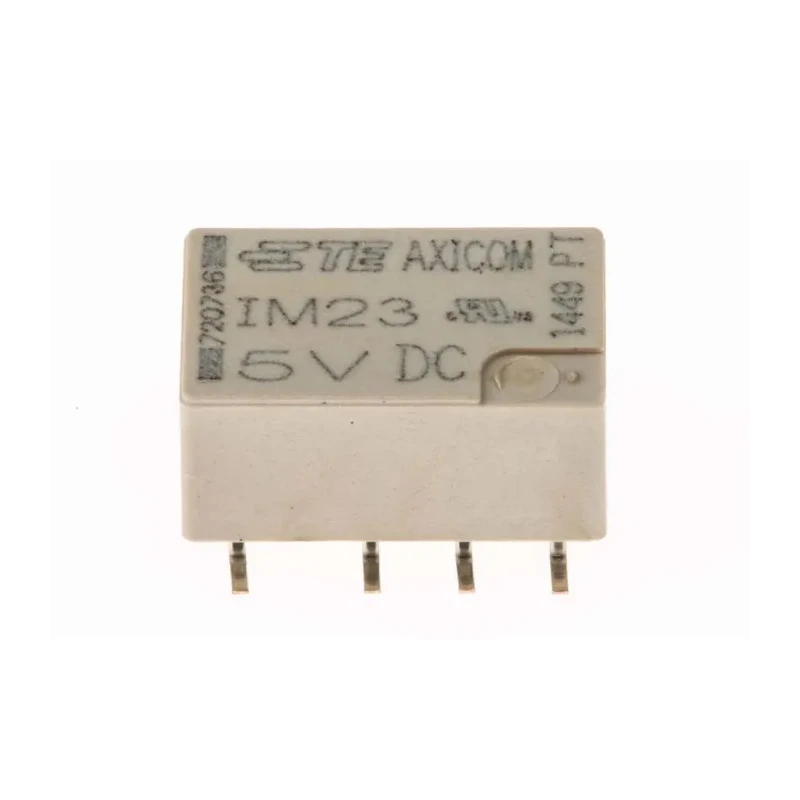

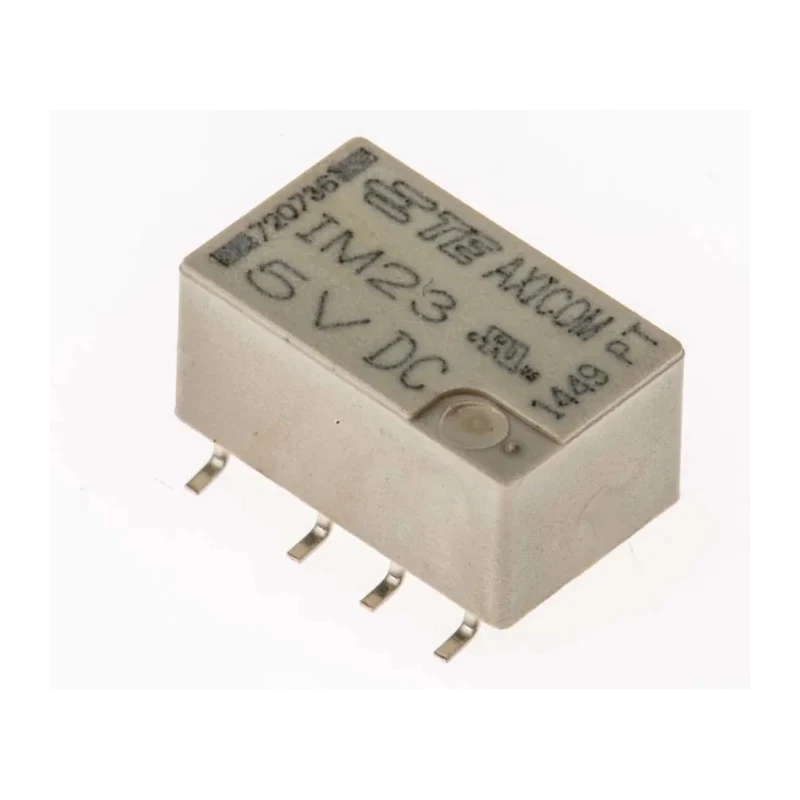

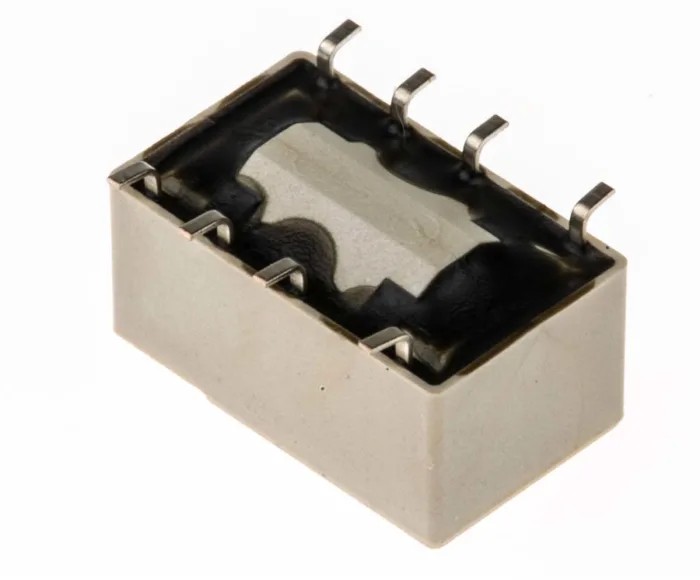

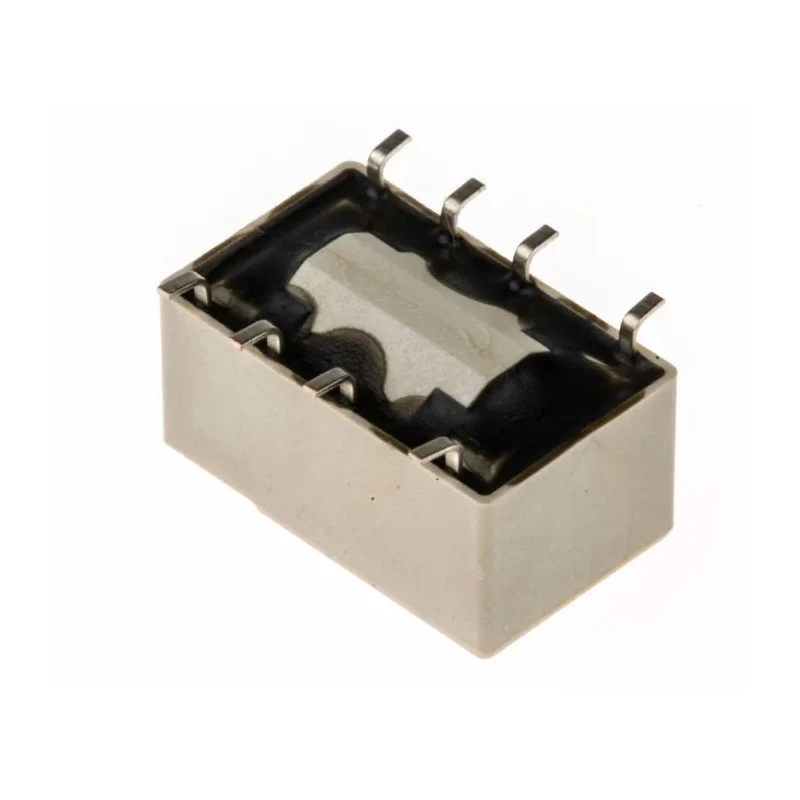

TE Connectivity Surface Signal Relay, 5V DC Coil, 2A Switching Current, DPDT Contact Configuration IM23GR 2-1462039-9

TE Connectivity IM23GR 2-1462039-9 Surface Signal Relay is a compact and robust signal relay designed for reliable switching of electrical signals in industrial, telecommunications, and automation applications. This relay features a 5V DC coil and supports a switching current of 2A with a DPDT (Double Pole Double Throw) contact configuration, suitable for complex signal routing.

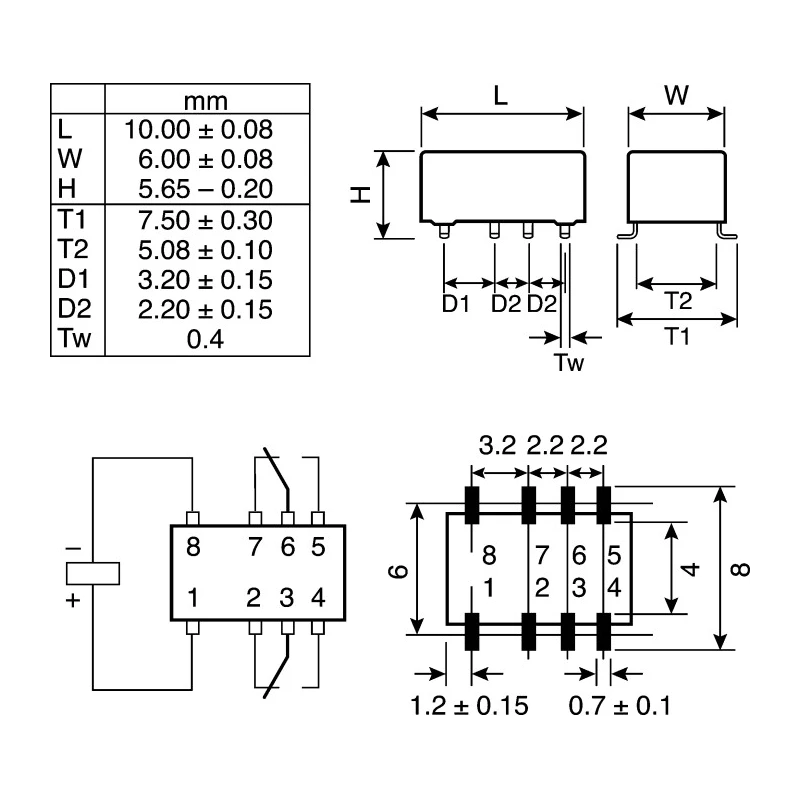

The relay is engineered with a low-profile slimline design measuring 10 mm in length, 6 mm in width, and 5.65 mm in height, making it ideal for compact PCB layouts. It includes gull wing surface mount technology (SMT) legs for efficient soldering to printed circuit boards.

Its gold plated bifurcated contacts ensure optimal signal integrity and minimize contact resistance. The relay is hermetically sealed to IP67 standards, providing excellent protection against environmental contaminants such as dust and moisture, which is critical for industrial and outdoor installations.

Operating temperature range from -40°C to +85°C enhances reliability across varying environmental conditions. The coil resistance of 500Ω results in a coil power consumption of just 50 mW, supporting energy-efficient operation. Additionally, it can switch AC voltages up to 250V and DC voltages up to 220V, providing versatility across diverse electronic systems.

This relay demonstrates outstanding mechanical shock resistance of up to 300G during functional operation and can survive shocks up to 500G, ensuring durability in harsh industrial and manufacturing environments. Insulation resistance exceeds 10⁹ Ω at 500V DC, enhancing electrical safety and performance.

Furthermore, the relay complies with rigorous surge capability standards including Telcordia TR-NWT-001089 and EC 60950, ensuring it withstands electrical transients during operation. This makes it ideally suited for telecommunications equipment, automation controls, manufacturing systems, and other professional electrical uses.

This slimline relay measures 10 mm in length and 6 mm in width, with a height of 5.65 mm. Features gull wing SMT legs for surface mounting on PCBs. Equipped with gold plated bifurcated contacts ensuring reliable signal switching.

Hermetically sealed with IP67 rating to protect against dust and moisture. Operates within a temperature range of -40°C to +85°C. Coil resistance is 500Ω delivering a coil power consumption of 50 mW. Suitable for switching AC voltage up to 250V and DC voltage up to 220V.

High mechanical shock resistance up to 300G functional and 500G survival. High insulation resistance exceeding 10⁹ Ω at 500V DC. Meets Telcordia TR-NWT-001089 and EC 60950 surge capability standards. Explore more Signal Relays and related products in EnvMart’s Electronics & Electricals category to find suitable components for your industrial and automation applications.
