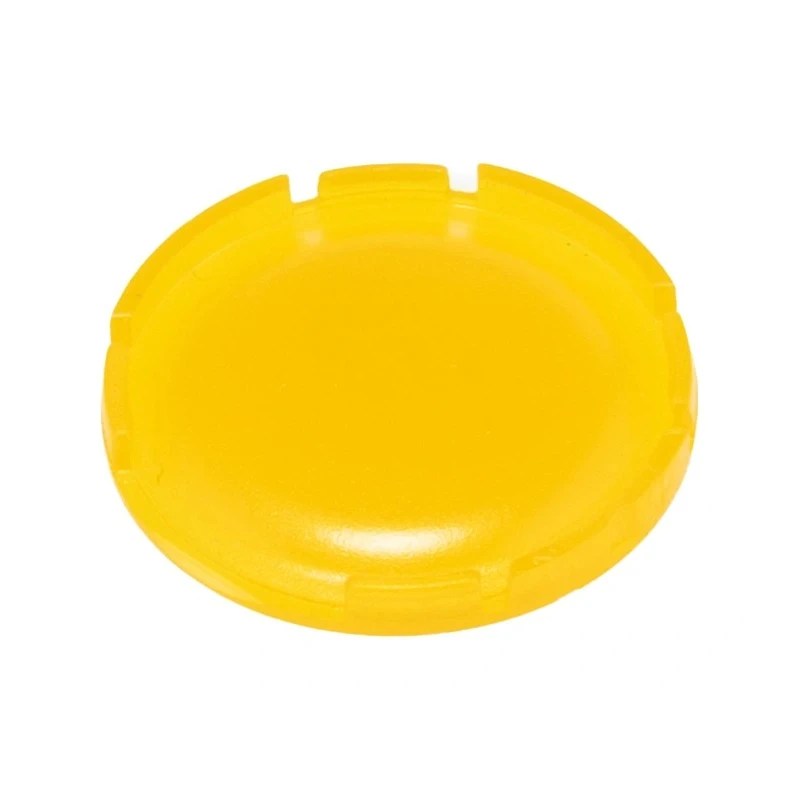

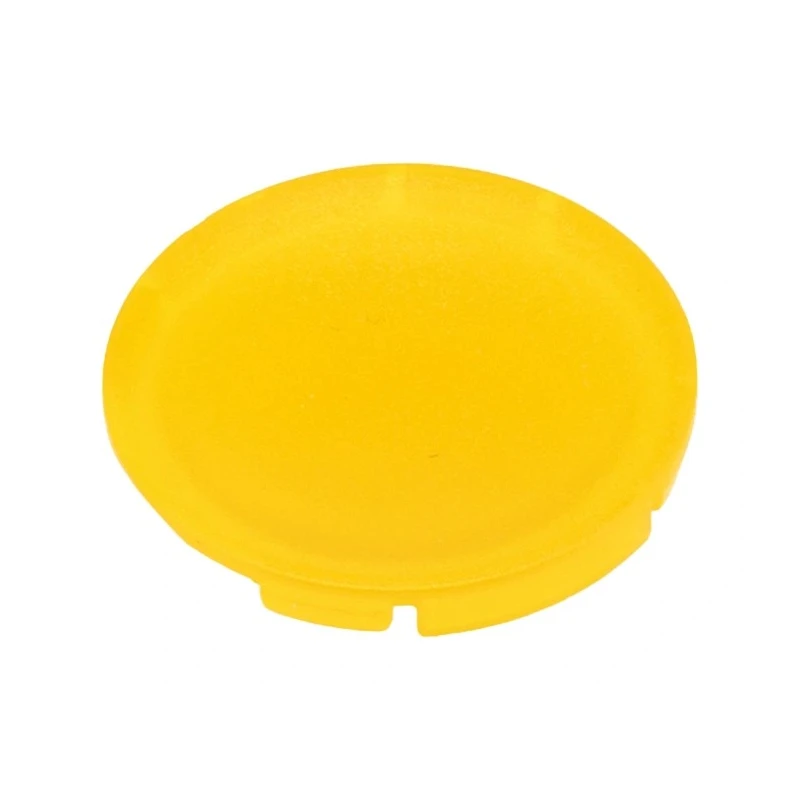

Eaton Yellow Round Push Button Lens 22.2mm Diameter, 24mm x 24mm x 3mm Height for M30C-FDL-X, M22(S)-DRL-X 216444 M22-XDL-Y

Eaton 216444 M22-XDL-Y yellow round push button lens is engineered for reliable visual indication in industrial automation and electrical control assemblies. It features a compact 24mm by 24mm footprint and low profile 3mm height ensuring flush mounting on control panels and operator housings.

This premium lens is compatible with Eaton push button housings such as M30C-FDL-X, M22(S)-DRL-X, M30C-FDRL-X, M22(S)-DL-X, and M22S-DGL-X series, providing a consistent and bright yellow signalling surface. The round lens shape guarantees uniform light diffusion which enhances the recognisability of status indicators during operation.

It is ideally suited for replacement of worn or damaged lenses in existing control arrays, as well as for retrofit upgrades on M22-button operator panels. The lens is specifically designed to fit panel operators that accept a 22.2mm nominal cut-out size, facilitating ease of installation and reliable performance.

The yellow lens material serves as a colour filter while dispersing light evenly from underlying LEDs or bulbs without compromising illumination intensity. This ensures high visibility of status indicators for machinery controls and electrical panels.

Engineered for cross-family compatibility, the lens supports multiple Eaton push button operator families, simplifying spares management and reducing downtime. Installation requires verification of correct seating flush within the 24mm external boundary for proper panel alignment.

This lens is compatible with Eaton push button housings including M30C-FDL-X and M22(S)-DRL-X models. The lens dimensions are 24mm by 24mm footprint with a height of 3mm for seamless panel fitting. The round shape offers uniform light distribution for effective visual signalling.

Yellow lens colour enhances status indication in automation and electrical control panels. Constructed to replace worn or damaged lenses for retrofit or maintenance purposes. Designed for panel operators with 22.2mm nominal cut-out size for perfect housing fit.

The lens filters and diffuses light from LEDs or bulbs beneath uniformly enhancing visibility. Suitable for cross-family use with multiple Eaton operator types ensuring spare part flexibility.

This product originates from Germany, reflecting Eaton’s commitment to high-quality manufacturing standards in industrial control components. It is ideal for use in industrial, manufacturing, electrical automation, and machine control panel applications.
