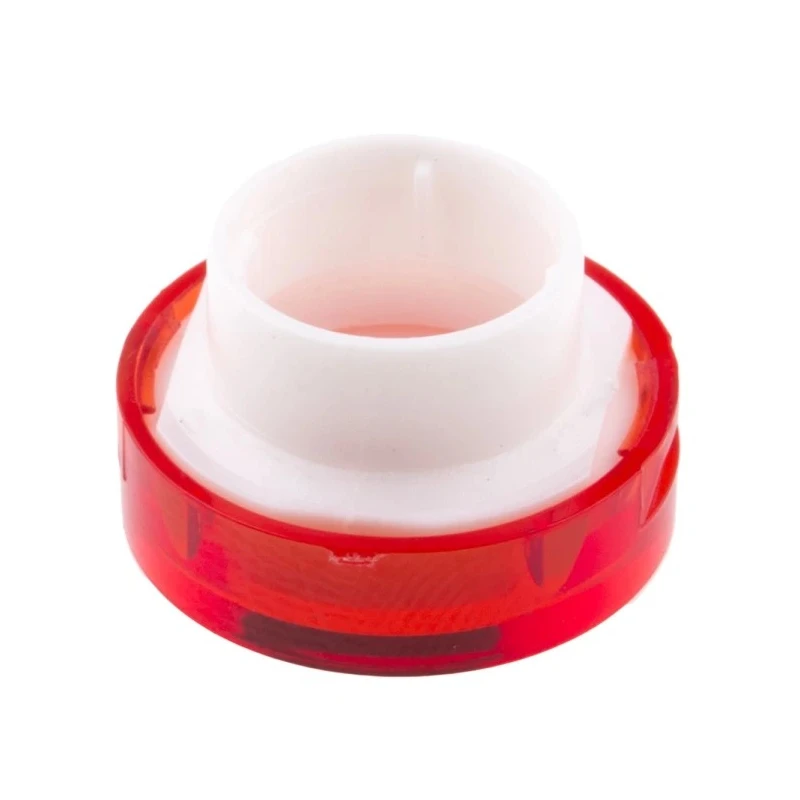

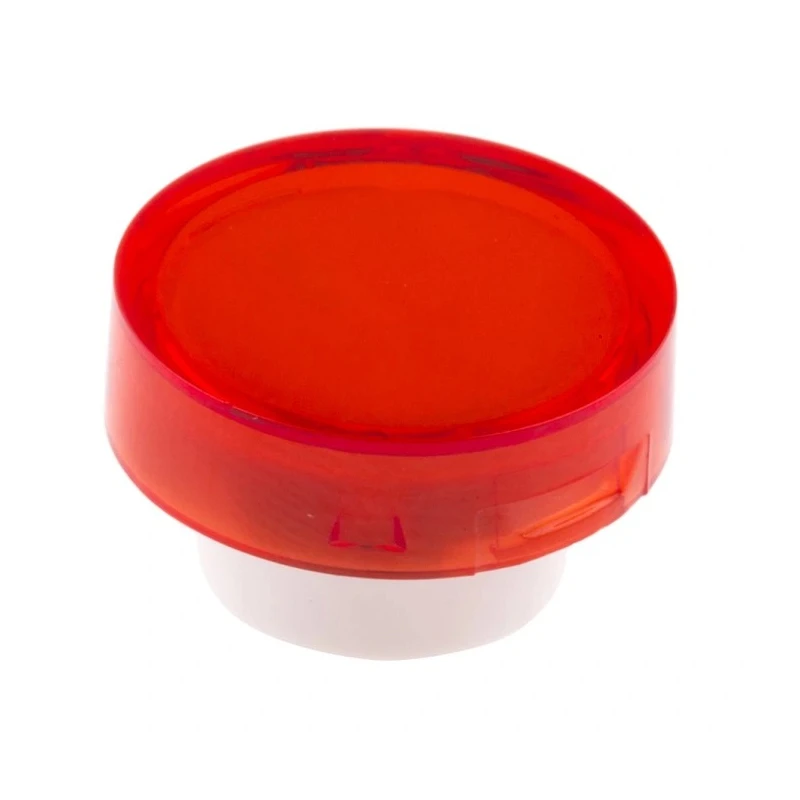

RS PRO Red Round Push Button Lens for Use with ADA16 Series 745-2506

RS PRO 745-2506 Red Round Push Button Lens is a high-quality component designed for use with the ADA16 Series of Push Button Switches and Pilot Light Indicators. This lens enhances the visual signaling capabilities of push button operators used in diverse industrial and electrical control applications.

The lens measures 16mm in diameter and 9.4mm in height, featuring a round shape and vibrant red color made from polycarbonate material. The polycarbonate construction provides toughness and the ability to be engraved for customized control panel applications.

This lens fits panels with a thickness range of 0.5mm to 5mm, designed for the standard 16mm diameter cut-out typical of the ADA16 series. When fully assembled, the system offers a waterproof rating of IP65 ensuring reliability in demanding environments such as manufacturing, automation systems, water treatment plants, HVAC controls, and other commercial and industrial uses.

The ADA16 series switches are modular and configurable, allowing combinations with various contact blocks and illumination sources such as filament lamps or LEDs. The lens is part of a modular system that includes round, square, and rectangular profile options and is compliant with RoHS directives ensuring safe and environmentally friendly operation.

Key features include quick and easy assembly, compatibility with multiple contact blocks featuring 2.8 x 0.5mm universal terminals for soldering or plug-in methods, and availability in multiple colors and shapes to suit various operator configurations.

The product is manufactured in Taiwan, Province Of China, assuring industrial quality control and consistent performance. For completing an illuminated push button switch, this lens needs to be combined with the appropriate contact block and illumination source tailored to the ADA16 series.

Compatible with ADA16 Series Push Button Switches and Pilot Light Indicators. Durable polycarbonate construction suitable for engraving. Round lens shape with 16mm diameter and 9.4mm height. Waterproof panel sealing rated to IP65 when fully assembled.

Complies with RoHS standards for environmental safety. Fits standard 16mm diameter panel cut-outs with thickness from 0.5 to 5mm. Modular and configurable for various industrial applications. Manufactured in Taiwan, Province Of China to quality standards.
