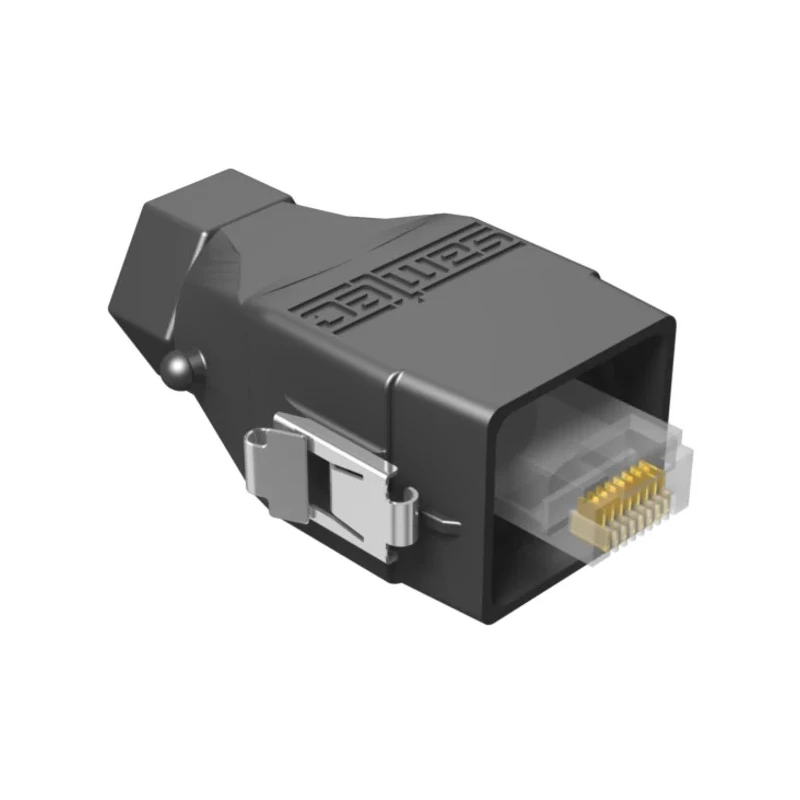

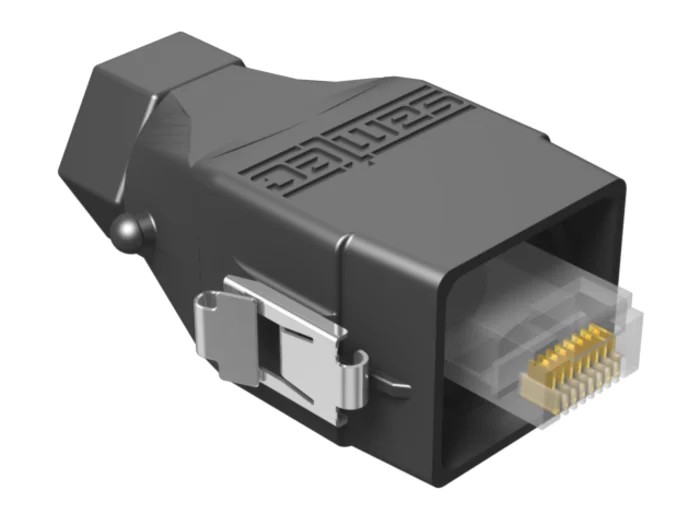

Samtec RCEF Series RJ45 Ethernet Termination Kit Male Cable Cat3 Cat5 Cat5e IP68 1 Port

Samtec RCEF-G-02 is a high-quality RJ45 Ethernet termination kit designed for male cable connections in Cat3, Cat5, and Cat5e LAN categories. This field termination kit accommodates cable outer diameters from 5.75 to 6.50 mm and is ideal for industrial, networking, telecommunications, and commercial cable installations requiring IP68 dust and waterproof protection.

The connector features gold over nickel plated contacts made from beryllium copper alloy, ensuring superior electrical performance and corrosion resistance. Its rectangular plug design mounts directly on cables and employs an audible click positive latching mechanism that guarantees a secure mating.

Operating reliably within a temperature range of -40°C to 75°C, the kit withstands harsh environments and hazardous conditions without certifications. The compact form factor measures 21.9 mm in length, 19.85 mm in width, and 46.73 mm in depth, providing an efficient footprint for cable management systems.

Designed for easy, in-field assembly, the Samtec RCEF Series termination kit supports Ethernet cables compliant with Cat3, Cat5, and Cat5e standards, making it versatile for a range of communications and networking setups. Its IP68 rating confirms dust-tight and water-resistant sealing, either when mated or used with the included dust cap, contributing to system reliability in outdoor or industrial environments.

The kit supports cable outer diameter range of 5.75 to 6.50 mm. Features beryllium copper alloy contacts plated with gold over nickel for reliable connectivity. Designed for field termination with audible click positive latching for secure connection.

Rated for operating temperatures from -40°C to 75°C. Rectangular connector orientation suitable for cable mounting applications. Constructed to meet IP68 standards for dust and waterproof sealing when mated or with dust cap.

Compact dimensions: 21.9 mm length, 19.85 mm width, and 46.73 mm depth. Compatible across multiple LAN categories including Cat3, Cat5, and Cat5e networks.

This termination kit is suitable for a variety of industrial, laboratory, manufacturing, telecommunications, and commercial applications requiring durable, high-performance Ethernet Connectors with robust environmental protection.
