ITW Switches 57M Series Miniature Push Button Switch, Latching, Panel Mount, 14.75 mm Cutout, SPST, Silver 57M-210N

ITW Switches 57M-210N Miniature Push Button Switch is a robust latching switch designed for panel mounting in industrial, medical, military, transportation, and security applications.

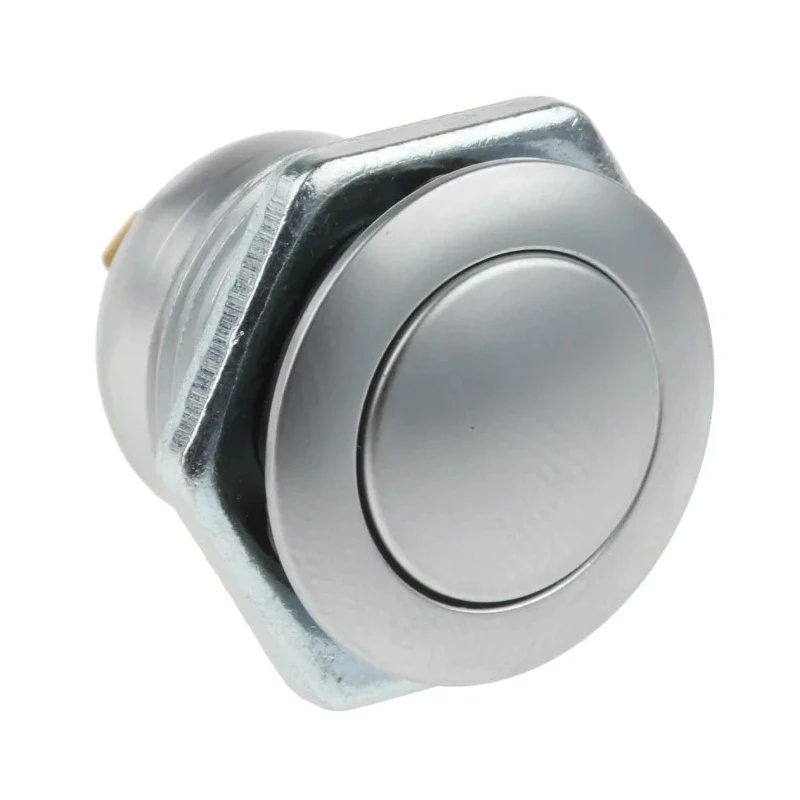

This miniature push button switch has a silver round actuator constructed of zinc alloy with velour chrome plating, providing resistance against wear and corrosion. It is engineered for rugged environments requiring reliable control components.

The switch fits a standard 14.75 mm diameter panel cutout and operates as SPST (Single Pole Single Throw) with On-Off configuration. It supports up to 48 V dc contact voltage and 1.5kV ac contact voltage for electrical robustness.

Protected to IP67, the switch is totally sealed against dust ingress and can withstand temporary immersion in water, making it suitable for harsh environments and outdoor or washdown industrial use.

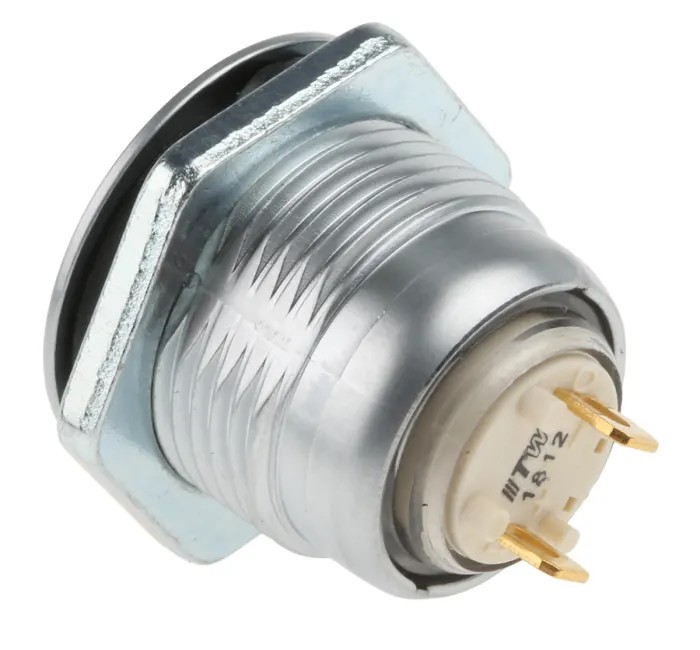

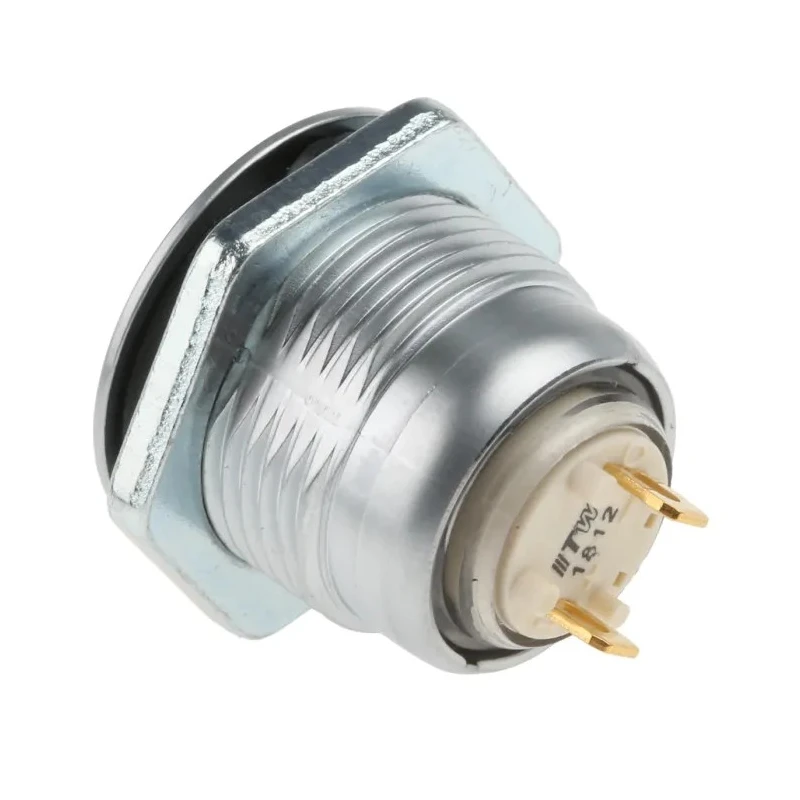

The solder terminal connection and gold plated contacts ensure stable electrical connectivity and longevity. With operating temperatures from -40°C to 85°C, this switch performs reliably under diverse temperature conditions.

Compliance with CSA and UL standards ensures this product meets recognized safety and quality benchmarks. This non-illuminated switch is part of the 57M series of miniature Push Button Switches from ITW, designed specifically for high use and resilient panel mount applications.

The switch features a silver actuator with round style for easy operation. It requires a 14.75 mm diameter panel cutout for mounting. This SPST switch offers a contact DC voltage rating of 48 V dc and contact AC voltage of 1.5kV ac.

Panel sealed to IP67 rating ensures dust-tight and immersion protection. Gold plated contacts and solder terminal ensure reliable electrical performance. Operating temperature ranges from -40°C to 85°C for diverse environments.

Switch configuration is On-Off with 250mA contact current rating. Non-illuminated design with zinc alloy velour chrome plated construction for durability. Certified to CSA and UL standards for safety and reliability. Manufactured in Taiwan, Province Of China.

Ideal for industrial control, medical equipment, military equipment, security systems, transportation control, and food processing applications, this switch is engineered for performance and reliability under demanding conditions.
