| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | RS1FK-M3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SMF |
| Sub Type | General Purpose Diode |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 500ns |
| Maximum Forward Current If | 1A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 800V |

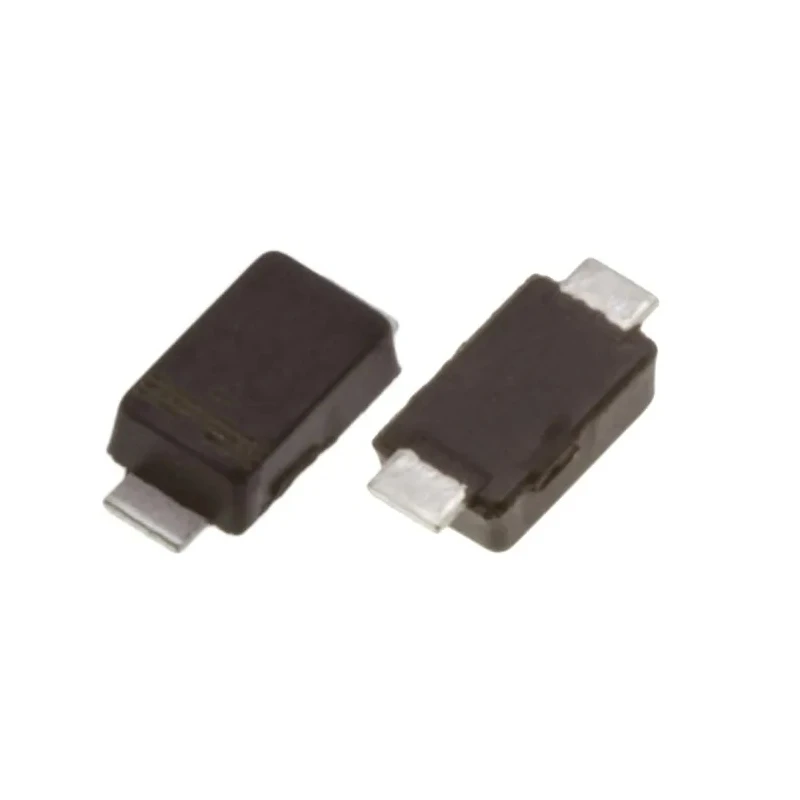

Vishay RS1FK-M3/H switching diode is a high-quality single diode designed for fast switching applications in electronic circuits. This surface mount device supports a maximum forward current of 1 A and withstands a peak reverse voltage of 800 V, making it suitable for power supply rectification and inverter circuits.
The diode features a low forward voltage drop of 1.25 V that contributes to high efficiency and minimal power loss during operation. Its peak reverse recovery time of 500 ns enables rapid switching, which is essential in high-frequency electronic devices.
Encased in a small SMF package with a 2-pin surface mount configuration, this diode facilitates automated PCB assembly. The component’s operating temperature range spans from -55°C to 150°C, ensuring reliable performance under harsh environmental conditions.
The device includes matte tin plated leads that comply with J-STD-002 and JESD standards for soldering, combined with a glass passivated pellet chip junction that enhances longevity and reliability. It meets MSL level 1 classification per J-STD-020, indicating excellent moisture resistance during storage and handling.
This Vishay switching diode is ideal for use in general-purpose rectification tasks in power supplies, inverters, converters, and freewheeling diode applications in consumer electronics and telecommunications sectors.
Designed for fast switching with a peak reverse recovery time of 500 ns. Compact SMF 2-pin surface mount package suitable for automated PCB assembly. Maximum forward voltage of 1.25 V minimizes power loss. Wide operating temperature range from -55°C to 150°C supports industrial applications.
Peak surge current rating of 30 A enhances transient handling. Matte tin plated leads ensure excellent solderability. Glass passivated junction provides durability and reliability. Meets moisture sensitivity level 1 (MSL 1) standards ensuring storage stability.
Suited for consumer, telecommunications, power supply, and inverter use cases. Explore more high-quality semiconductor components and Switching Diodes at EnvMart's Electronics & Electricals category for reliable industrial and commercial applications.
