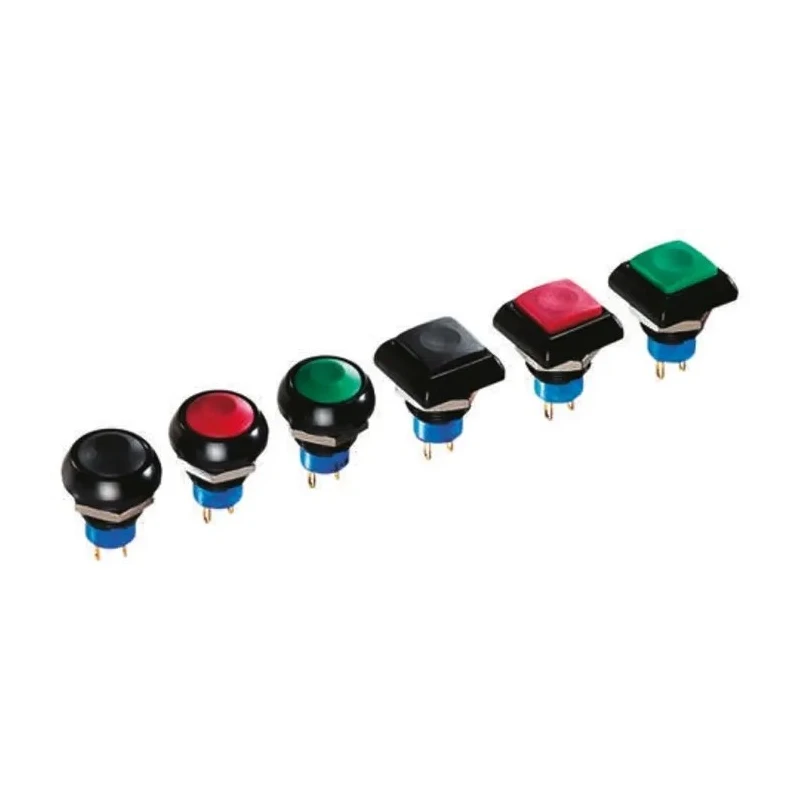

APEM IP Series Momentary Push Button Switch, Panel Mount, 12 mm Cutout, SPST, IP67, 24 V IPC5SAD3
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IPC5SAD3 |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Blue, Green, Red, White, Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 24V dc |
| Actuator Style | Square |
| Switch Contact Current | 5A |
| Legend | Optional Marking, Plunger Marking Available (Symbol 10 mm max) |
| Very robust | IK06 |
Key Features
- Operates with a momentary switch function for reliable transient control.
- Single pole single throw (SPST) contact configuration ensures simple on/off operation.
- Square actuator style available with multiple LED color options including blue, green, red, white, and yellow.
- Designed for panel mounting with solder terminal types and 17.5 mm width.
- Maintains integrity in extreme temperatures from -40°C up to 85°C.
- Certified with RoHS compliance and conforms to EN 50102, IEC 512-4, and IEC 512-6 standards.
- Highly durable with IK06 rating for mechanical robustness and salt spray resistance.
- Includes optional marking with plunger symbol up to 10 mm.
Product Description
APEM IPC5SAD3 is a high-quality momentary push button switch designed for panel mounting applications requiring reliable transient switching. It features a 12 mm panel cutout size and a SPST contact configuration suitable for on/off control in industrial, electrical, automation, and control panel environments.
This switch is engineered with a square actuator style and offers multiple LED color options (blue, green, red, white, and yellow) for enhanced visibility without illumination in this variant. It supports operation in harsh conditions with an IP67 ingress protection rating, providing dust tightness and water immersion resistance.
Mechanical strength is ensured by an IK06 impact resistance rating. This product withstands a wide temperature range from -40°C to 85°C, making it adaptable for industrial and HVAC control panels exposed to varying climatic conditions.
The solder terminal type allows secure and reliable electrical connections. The switch’s compact 17.5 mm width suits dense panel layouts. RoHS compliance and adherence to EN 50102 and IEC standards ensure safety and environmental compatibility.
Momentary operation with SPST configuration. Square actuator with multiple LED color selections. Panel mount with 12 mm cutout and solder terminals. IP67 rated for dust and water ingress protection. Wide operating temperature range from -40°C to 85°C.
IK06 mechanical robustness for impact resilience. RoHS compliant and certified to international standards EN 50102 and IEC 512-4/6. Optional plunger marking up to 10 mm for identification.
This switch is ideal for use in industrial automation controls, electrical panels, manufacturing machinery, and other applications requiring durable and dependable Push Button Switches. Browse the Electronics & Electricals category at EnvMart for additional switch variants and compatible components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APEM IPC5SAD3 features a single pole single throw (SPST) contact configuration, which allows for simple on/off operation.
This push button switch has an IP67 ingress protection rating, ensuring it is dust tight and resistant to water immersion.
The operating temperature range for this model is from -40°C to 85°C, making it suitable for various industrial environments.
The required panel cutout size for the APEM IPC5SAD3 is 12 mm.
This model uses solder terminal types for secure and reliable electrical connections.
The APEM IPC5SAD3 offers multiple LED color options, including blue, green, red, white, and yellow.
The width of the APEM IPC5SAD3 is 17.5 mm, making it suitable for dense panel layouts.
This model has a switch contact current rating of 5A, suitable for various applications.
The APEM IPC5SAD3 is RoHS compliant and conforms to EN 50102, IEC 512-4, and IEC 512-6 standards.
This model features a square actuator style, designed for momentary operation.
Yes, there is an optional marking available with a plunger symbol, which can be up to 10 mm in size.
The APEM IPC5SAD3 is manufactured in France.
