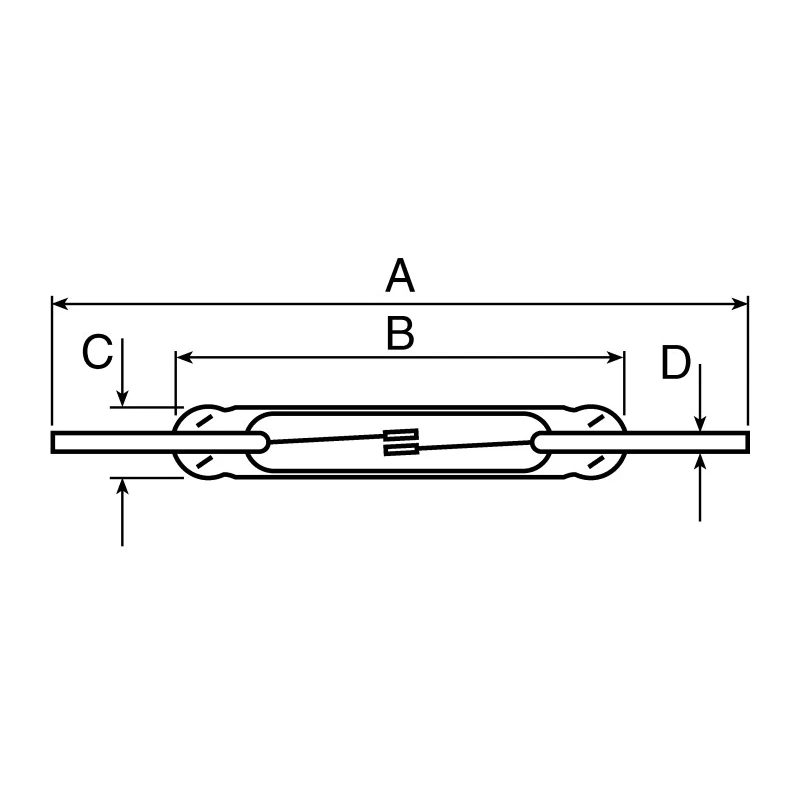

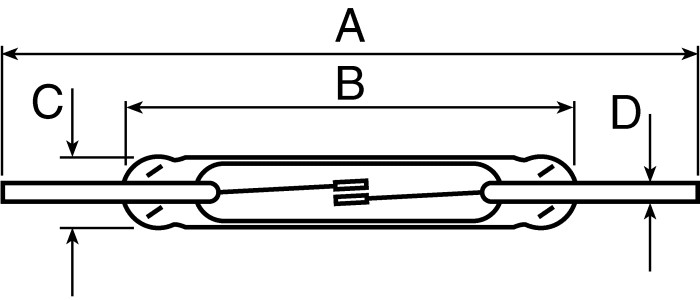

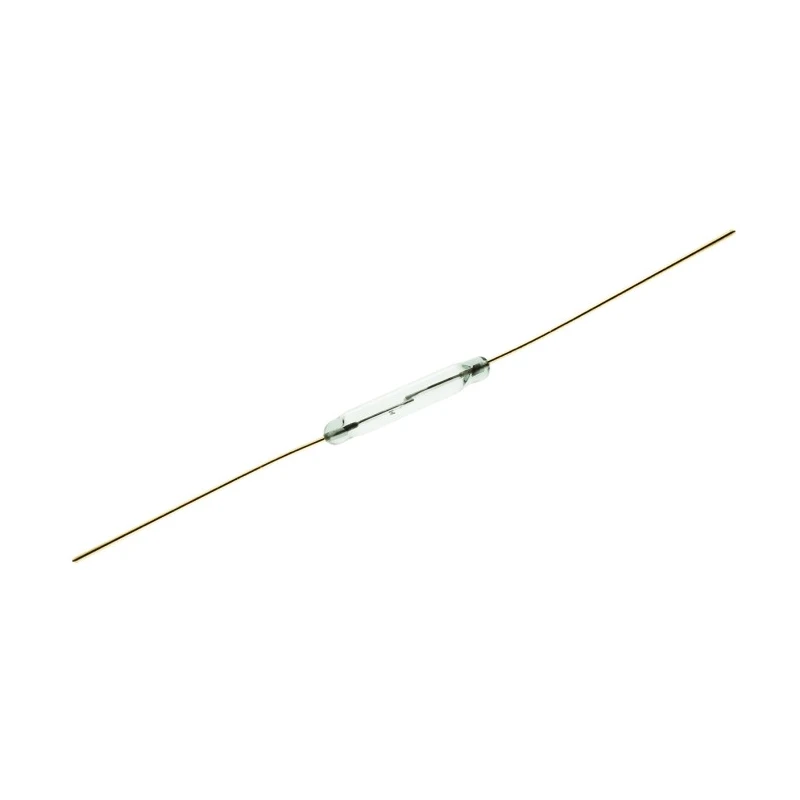

Cynergy3 SPST PCB Reed Switch 500 mA 150 V AC/DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Length | 55mm |
| Model | Cynergy3 |
| Mount Type | PCB |
| Contact Material | Rhodium |
| Series | TRA |
| Maximum Switching Current | 500mA |
| Maximum Operating Temperature | 150°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Contact Resistance | 150mΩ |
| Maximum Switching Power | 10W |
| Standards/Approvals | RoHS |
| Maximum Switching Voltage | 150V ac/dc |
| Maximum Release Time | 0.05ms |
| Operating Time Including Bounce | 2ms |
| AT Value Range | 15 to 35 AT |
| Cynergy3 SPST PCB Reed Switch 100 mA 24 V ac/dcBrand | Cynergy3 |
| Cynergy3 SPST PCB Reed Switch 300 mA 300 VBrand | Cynergy3 |
Key Features
- This reed switch features SPST contact configuration for precise circuit control.
- Maximum switching current of 500 mA and switching power of 10 W support low power circuit applications.
- Operates within a wide temperature range from -40°C to 150°C, suitable for harsh environments.
- Rhodium contacts provide low resistance of 150 mΩ ensuring durable, high conductivity performance.
- Extremely fast response with 2 ms operating time including bounce and 0.05 ms maximum release time.
- Compact 55 mm length with wire terminal type for easy PCB mounting and installation.
- Complies with RoHS standards ensuring environmental safety compliance.
- Ideal for applications in medical equipment, security systems, and automotive door sensors.
Product Description
Cynergy3 TRA294G/20-30 SPST PCB Reed Switch is a robust component designed for low power switching applications up to 150 V AC/DC and 500 mA current. Its compact size and fast operating speeds make it ideal for industrial, medical, security, and automotive uses requiring reliable switching performance.
The reed switch utilizes a single-pole single-throw (SPST) contact configuration with rhodium contact material for enhanced electrical conductivity and unusually low contact resistance of 150 mΩ. The quick switching response times, including a maximum release time of 0.05 ms and 2 ms operating time, guarantee rapid circuit operation.
Designed to operate in demanding temperature environments from -40°C to 150°C, this PCB-mount reed switch is well suited for applications exposed to variable environmental conditions. Its 55 mm length and wire terminal type enable straightforward integration into printed circuit boards.
Common applications include medical instrumentation, security screening systems, and automotive components such as door sensors where high reliability and durability are paramount.
This reed switch features SPST contact configuration for precise circuit control. Maximum switching current of 500 mA and switching power of 10 W support low power circuit applications. Operates within a wide temperature range from -40°C to 150°C, suitable for harsh environments.
Rhodium contacts provide low resistance of 150 mΩ ensuring durable, high conductivity performance. Extremely fast response with 2 ms operating time including bounce and 0.05 ms maximum release time. Compact 55 mm length with wire terminal type for easy PCB mounting and installation.
Complies with RoHS standards ensuring environmental safety compliance. Ideal for applications in medical equipment, security systems, and automotive door sensors. Explore more Cynergy3 products and Reed Switches in the Electronics & Electricals category at EnvMart for reliable industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 500 mA.
It features a single-pole single-throw (SPST) contact configuration.
This unit operates within a temperature range from -40°C to 150°C.
The contact material used in this reed switch is rhodium, which provides low resistance.
The maximum switching voltage for this model is 150 V AC/DC.
This model has an operating time of 2 ms including bounce and a maximum release time of 0.05 ms.
The contact resistance is 150 mΩ, ensuring high conductivity performance.
The length of this model is 55 mm, making it compact for PCB mounting.
This unit is designed for PCB mounting with a wire terminal type.
It complies with RoHS standards, ensuring environmental safety compliance.
This model is suitable for applications in medical equipment, security systems, and automotive door sensors.
The maximum switching power for this model is 10 W.
