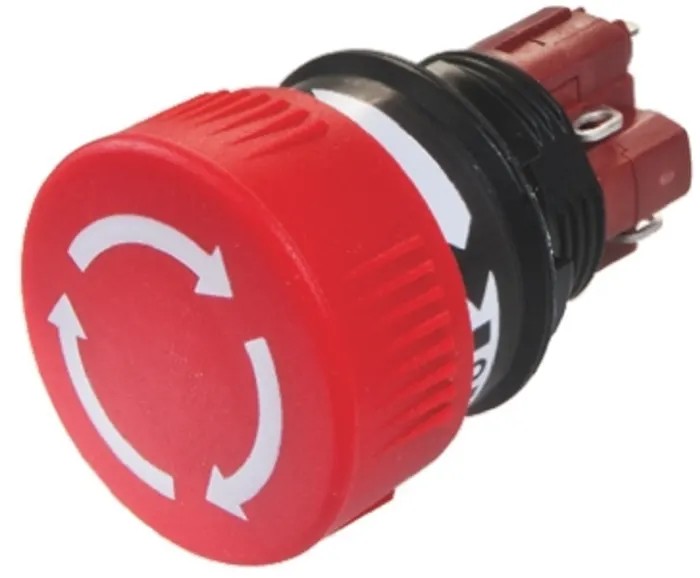

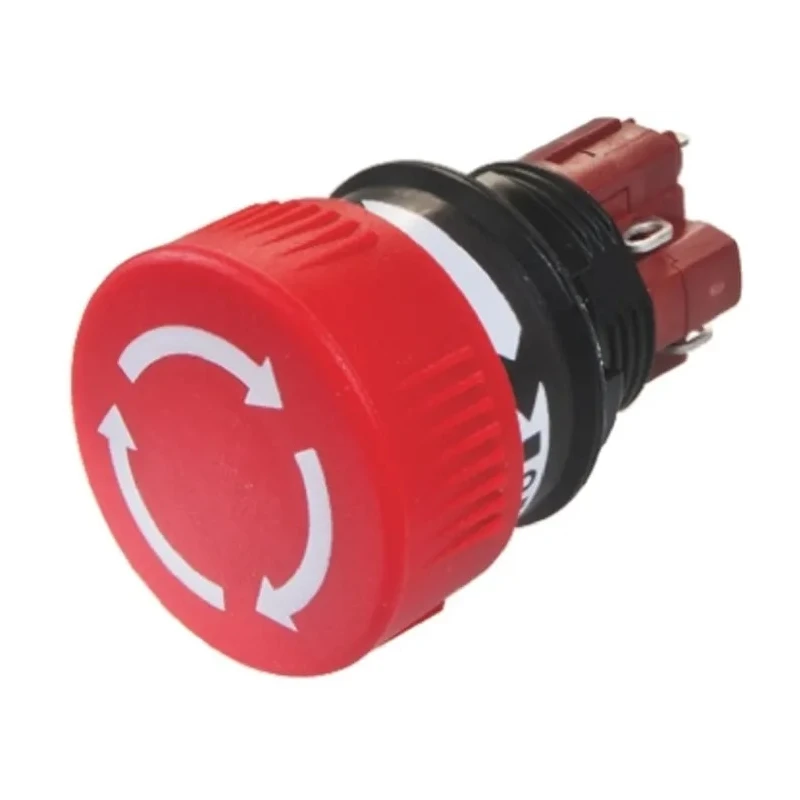

EAO Maintained Emergency Stop Push Button Panel Mount, 16 mm Cutout, SPDT, IP65 51-256.025

EAO 51-256.025 Maintained Emergency Stop Push Button is a panel mount switch designed to ensure safety in industrial and commercial systems. Featuring a 16 mm cutout and IP65 rating, it provides dust protection and resistance to low-pressure water jets, making it suitable for harsh environments.

The push button uses a maintained actuation design - press once to activate stop and twist to release - ensuring equipment remains safely stopped until intentionally restarted. Its mushroom-style head with a 24.5 mm diameter is ergonomically crafted for ease of use and rapid emergency response. The red color further enhances quick visual detection during critical situations.

Constructed from robust plastic housing and button materials, this switch assures high durability and resistance to corrosion and wear. It employs SPDT gold contacts, which provide excellent conductivity and corrosion resistance, rated to handle 250V AC/DC voltages and 5A current capacity. The solder terminal type guarantees secure and straightforward electrical connections during panel assembly.

With a slim back panel depth under 19 mm, this component allows for minimal space usage behind panels. It has undergone rigorous testing exceeding 100,000 actuations to ensure reliability and long service life. It complies with ENEC (EN61058-1), CSA, and CB standards, offering recognized safety and performance credentials.

Its compact and rugged mono block design protects against damage and minimizes installation depth.

This emergency stop switch features solder terminals for secure electrical connections. Gold contacts resist corrosion and ensure reliable electrical conductivity. Panel mount design simplifies integration into existing control systems.

Compact form factor with 16 mm cutout and 24.5 mm head diameter saves panel space. IP65 rating provides dust-tightness and protection against water jets. Red mushroom head allows fast identification in emergencies. Maintained actuation means the button stays engaged until manually released.

Rated for 250V AC/DC and 5A contact current capacity. Manufactured in Switzerland ensuring high quality and durability. Suitable for industrial, medical, commercial, and retail emergency stop applications. Browse our comprehensive collection of industrial switches at EnvMart to find the perfect components for your control panel solutions.
