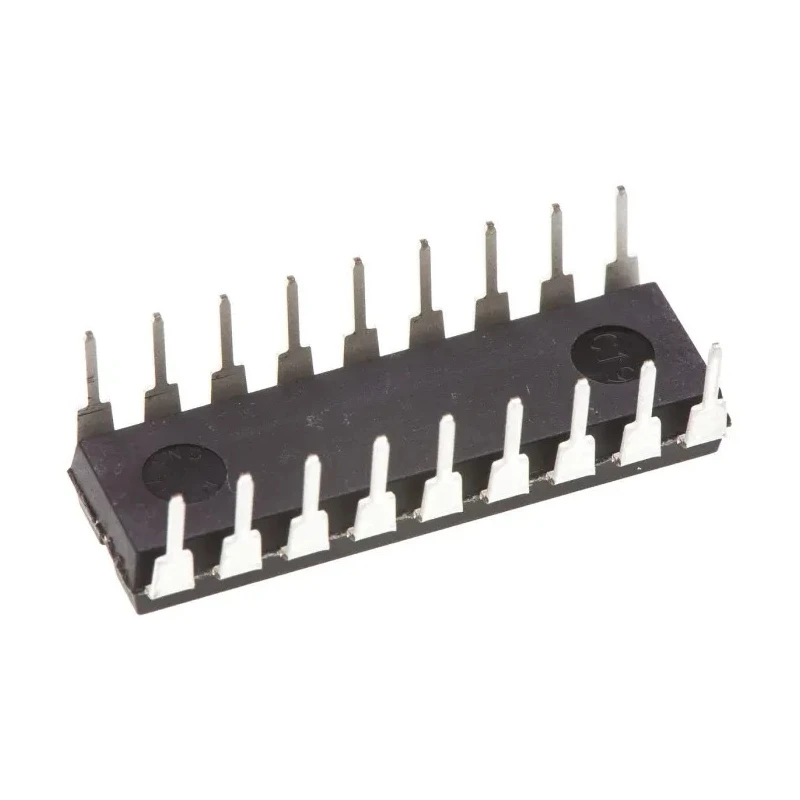

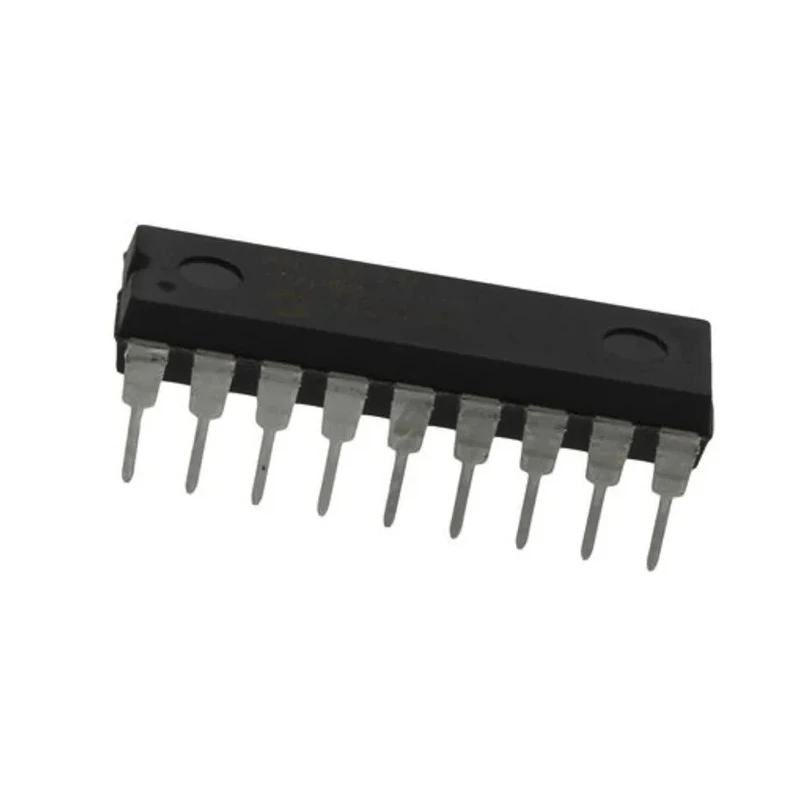

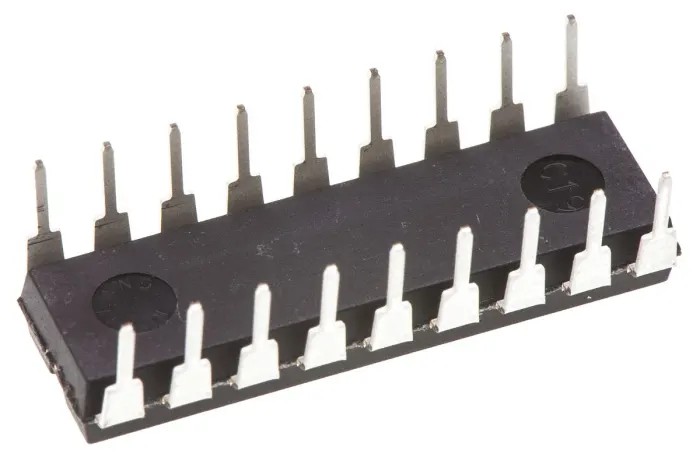

Microchip PIC16F716-I/P 8-Bit PIC Microcontroller 20 MHz FLASH 18-Pin PDIP PIC16F716-I/P

Microchip PIC16F716-I/P is an 8-bit PIC microcontroller featuring a 20 MHz maximum clock speed and 3.5kB of FLASH memory, housed in an 18-Pin PDIP Through Hole package. Designed around Microchip's PIC mid-range architecture with a RISC instruction set, it is capable of delivering up to 5 MIPS processing performance.

This microcontroller includes 25 programmable I/O pins, supporting diverse interfacing requirements. The device offers power management functionalities such as Power-On Reset, Power-Up Timer, Oscillator Start-Up Timer, Brown-Out Reset, and Watchdog Timer for reliable and stable operation.

It features 4 channels of 8-bit ADC converters and 2 analogue comparators, broadening application scopes in sensor data measurement and analog signal processing. The device operates over a supply voltage range of 2 V to 5.5 V, making it suitable for a wide range of electronics projects and industrial applications.

The package dimensions are approximately 23.37 mm in length, 7.11 mm in width, and 4.95 mm in height, offering a compact footprint for printed circuit board layouts. The microcontroller includes three timers (two 8-bit and one 16-bit) enabling versatile timing and counting operations.

Its in-circuit serial programming capability allows programming and debugging without removing the chip from the circuit, improving development efficiency. The device’s robust operating temperature range from -40°C to 85°C supports reliable operation in harsh environments.

Operates at a maximum clock frequency of 20 MHz for fast processing. Contains 3.5 kB flash program memory for efficient embedded application storage. Features 18 pins in a Through Hole PDIP package suitable for prototyping and production.

Includes 4 x 8-bit ADC channels and 2 analog comparators for signal processing. Operates within 2 V to 5.5 V voltage range for flexible power supply options. Provides 25 programmable I/O pins for connectivity and control flexibility.

Program memory type is FLASH offering non-volatile code retention. Power management features include POR, PWRT, BOR, and watchdog timers for reliability. Supports in-circuit serial programming (ICSP) allowing easy reprogramming.

Compact dimensions of 23.37 mm x 7.11 mm x 4.95 mm aid in space-efficient designs.

This microcontroller is ideal for applications in electronics, industrial automation, instrumentation, automotive, and consumer devices requiring an efficient and compact 8-bit microcontroller solution. Its power and performance characteristics make it suitable for embedded systems development and integration into a variety of control and monitoring units.
