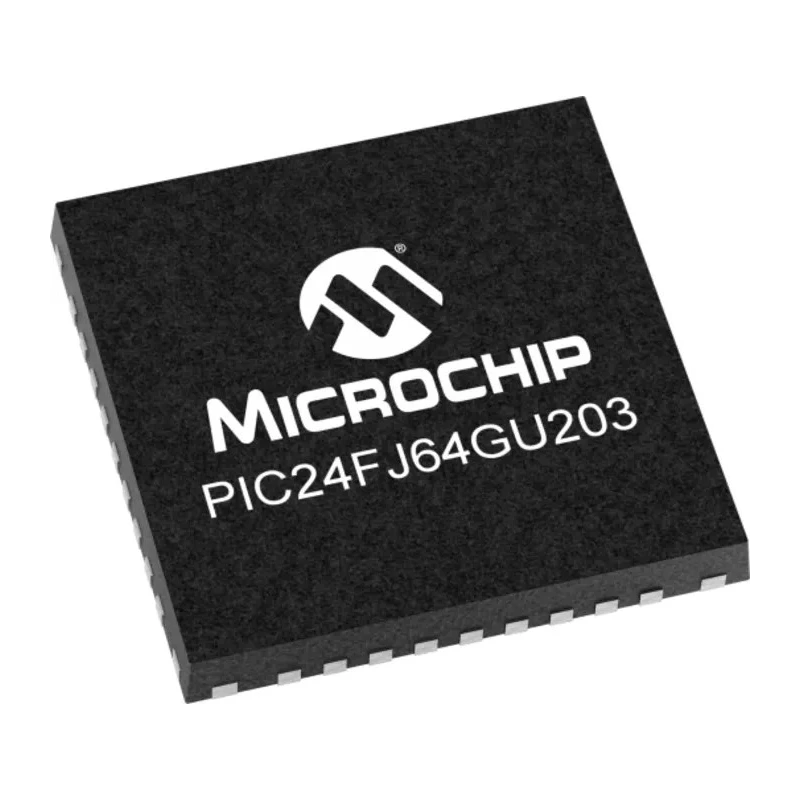

Microchip 16 bit PIC Microcontroller 32 MHz 64kB FLASH 36-Pin UQFN PIC24FJ64GU203-I/M5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 900μm |
| Length | 5mm |
| Model | PIC24FJ64GU203-I/M5 |
| Width | 5mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 36 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 26 |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- This microcontroller features a 16-bit PIC device core suitable for diverse embedded applications.
- It has 8kB RAM and 64kB program memory size using FLASH technology.
- Maximum supply voltage is 5.5V with a minimum operating voltage down to 2.5V.
- Includes 12-bit ADCs, 3 analogue comparators, and 5-bit DACs for advanced signal processing.
- Equipped with 4 timers and 26 programmable I/O pins supporting flexible control functions.
- Operates in temperature range from -40°C to 85°C, suitable for robust industrial environments.
- The package dimensions are compact with 5mm width, 5mm length, and 900μm height.
- It conforms to RoHS compliance for environmental standards.
Product Description
Microchip PIC24FJ64GU203-I/M5 is a 16-bit PIC microcontroller designed for industrial, embedded system, and electronics applications requiring efficient processing and low power consumption. With a maximum clock frequency of 32 MHz and 64 kB of flash memory, it facilitates complex program execution and data storage.
This microcontroller features 8 kB RAM for data handling and operates within voltage ranges of 2.5 V to 5.5 V, ensuring versatility for battery-powered and mains applications. The compact 36-pin UQFN package measures 5 mm by 5 mm with a height of 900 μm, ideal for space-constrained designs.
The device supports 12-bit ADCs, 3 analogue comparators, and 5-bit DACs to enable precise analog signal processing in measurement, control, and sensor interfacing. Four onboard timers and 26 programmable I/O pins provide extensive timing and control capabilities.
Operating temperatures from -40°C to 85°C allow this microcontroller to be used in demanding industrial, automotive, and instrumentation environments. It adheres to RoHS environmental compliance standards for sustainable manufacturing.
The PIC24FJGU2 series utilizes Harvard architecture, delivering efficient instruction execution and enhanced code security features including Code Guard Flash protection and a Dead-Man Timer (DMT) to improve reliability.
This microcontroller features a 16-bit PIC device core suitable for diverse embedded applications. It has 8kB RAM and 64kB program memory size using FLASH technology. Maximum supply voltage is 5.5V with a minimum operating voltage down to 2.5V.
Includes 12-bit ADCs, 3 analogue comparators, and 5-bit DACs for advanced signal processing. Equipped with 4 timers and 26 programmable I/O pins supporting flexible control functions. Operates in temperature range from -40°C to 85°C, suitable for robust industrial environments.
The package dimensions are compact with 5mm width, 5mm length, and 900μm height. It conforms to RoHS compliance for environmental standards. The architecture uses Harvard instruction set for efficient processing.
This Microchip PIC microcontroller is suitable for applications in industrial automation, instrumentation, consumer electronics, automotive control systems, and battery-powered devices. Browse our category of Microcontrollers at EnvMart for additional compatible components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates with a minimum supply voltage of 2.5V and a maximum supply voltage of 5.5V.
This model features a program memory size of 64 kB using FLASH technology.
It is equipped with 26 programmable I/O pins.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial environments.
This microcontroller comes in a compact 36-pin UQFN package with dimensions of 5mm x 5mm x 900μm.
It includes 12-bit ADCs and 5-bit DACs for advanced signal processing.
This model includes 4 onboard timers for extensive timing capabilities.
Yes, it conforms to RoHS compliance standards for environmental sustainability.
It features an 8 kB RAM for data handling.
It utilizes Harvard architecture, which enhances instruction execution efficiency.
This microcontroller is suitable for applications in industrial automation, instrumentation, consumer electronics, automotive control systems, and battery-powered devices.
