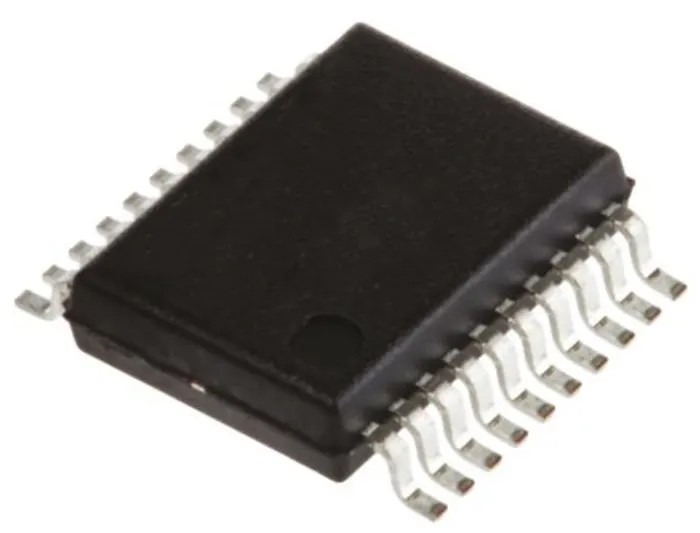

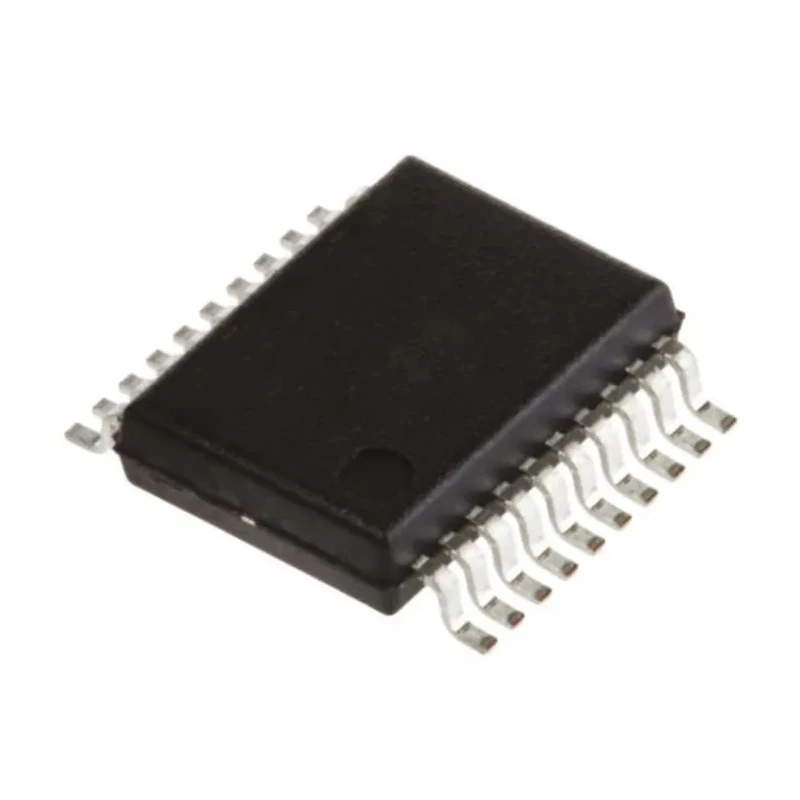

Microchip 8-Bit PIC PIC18 Microcontroller 64 MHz 16kB FLASH 20-Pin SSOP PIC18F14Q41-I/SS

The Microchip PIC18F14Q41-I/SS is a high-performance 8-bit PIC microcontroller built on the PIC18 family, designed for advanced sensor and real-time control applications within industrial and embedded systems. Operating at a maximum clock frequency of 64 MHz, it features 16kB of FLASH memory where program code can be stored and executed efficiently using a RISC instruction set architecture.

Equipped with a PIC device core and 8-bit data bus width, the device supports 4kB of RAM ensuring fast data processing. The microcontroller integrates essential analog peripherals, including a 12-bit ADC with 17 input channels and dual 8-bit digital-to-analog converters (DACs), which allow precise sensing and signal output functionalities. The inclusion of operational amplifiers and configurable logic cells enhances its capability for sensor interfacing and computation-intensive tasks.

Connectivity is supported through multiple communication interfaces, prominently SPI, enabling flexible integration with other digital devices. The microcontroller incorporates 18 programmable input/output pins and five timers, offering comprehensive control options for embedded projects.

This device is packaged in a compact 20-pin SSOP surface mount form factor with dimensions of 7.5 mm in length, 8.2 mm in width, and 2 mm in height, optimizing PCB space utilization. It operates under a voltage range from 1.8V to a maximum of 5.5V, with a maximum power dissipation of 800 mW, making it suitable for energy-efficient designs.

Designed for durability, the PIC18F14Q41-I/SS functions reliably in harsh environments across a temperature range from -40°C to 85°C. It excludes automotive certification but meets the quality needed for industrial and consumer electronics.

The microcontroller is ideal for applications in industrial automation, sensor data acquisition, consumer electronics, and other embedded control systems requiring compact size and versatile analog and digital interfacing capabilities.

Equipped with a PIC device core offering efficient 8-bit data bus width. Integrated 16kB FLASH program memory with RISC instruction set architecture. Operates with a maximum supply voltage of 5.5V and minimum of 1.8V. Features 4kB RAM, 17 12-bit ADC channels, and two 8-bit DACs for precise analog interfacing.

Includes multiple communication interfaces such as SPI for versatile connectivity. Supports up to 18 programmable I/O pins and 5 timers for control functions. Designed for operating temperatures ranging from -40°C to 85°C suitable for industrial environments.

Compact 20-pin SSOP surface mount package measuring 7.5mm x 8.2mm x 2mm. Maximum power dissipation rated at 800mW for reliable performance. Includes advanced peripherals like operational amplifiers and configurable logic cells.

Browse the Microchip Microcontroller selection at EnvMart for comprehensive solutions in high-performance embedded control devices.
