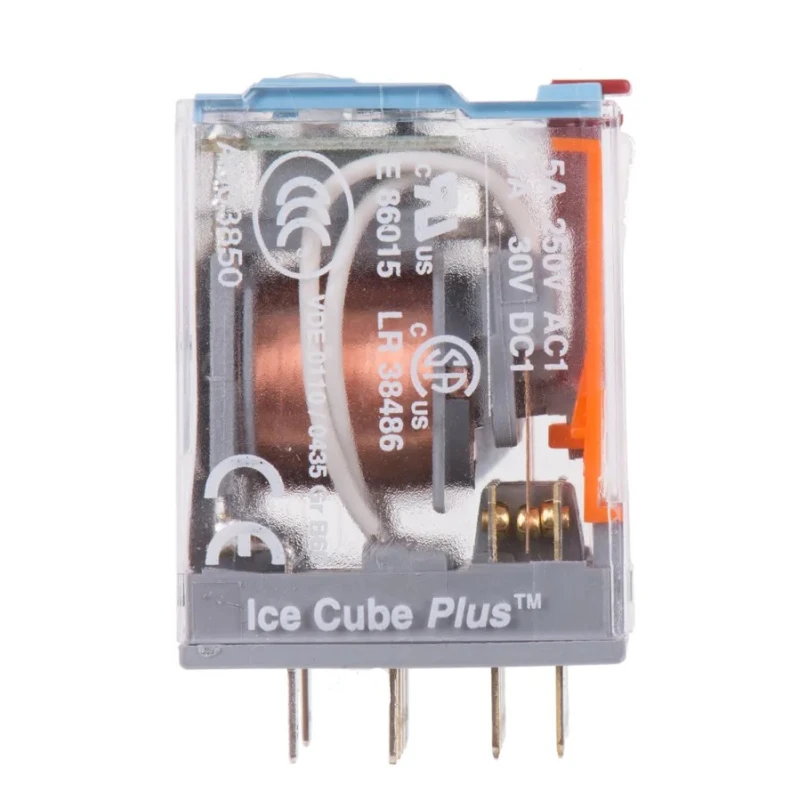

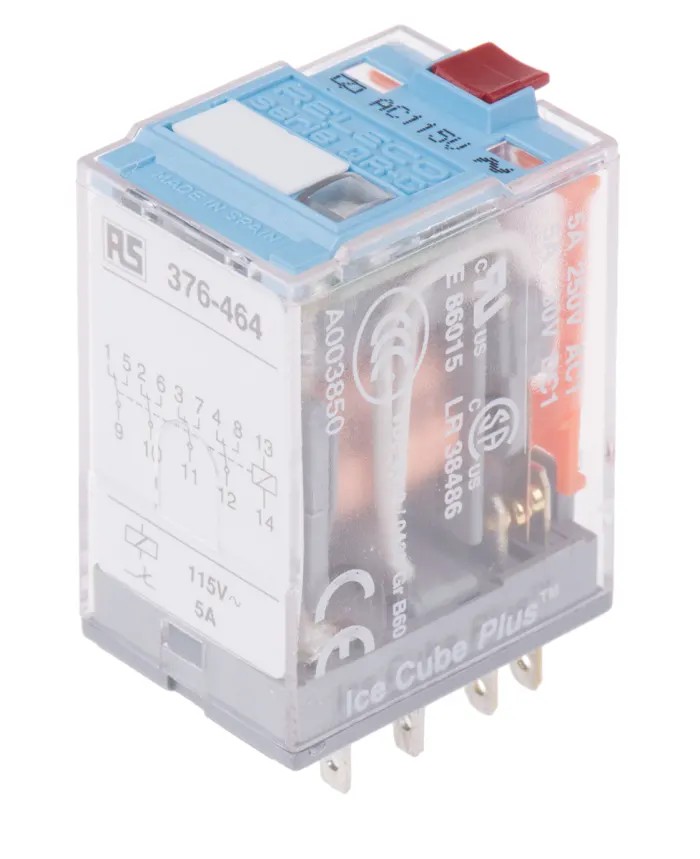

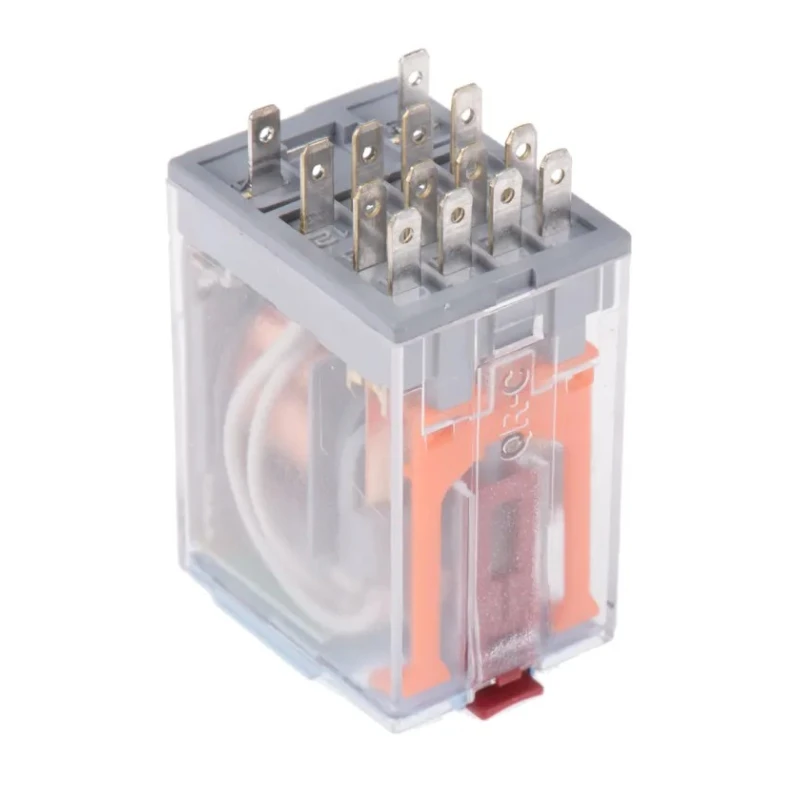

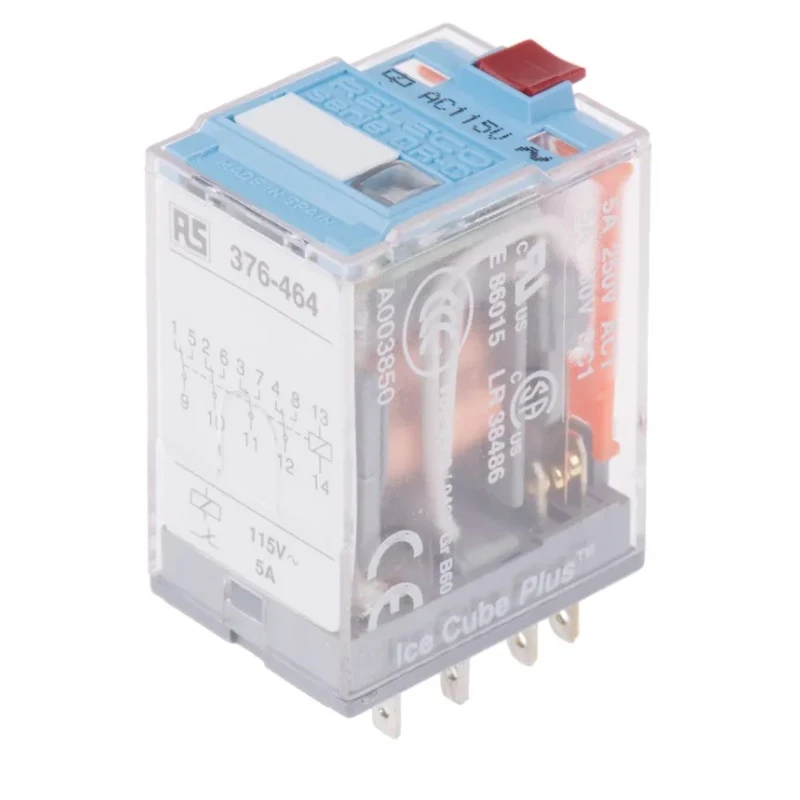

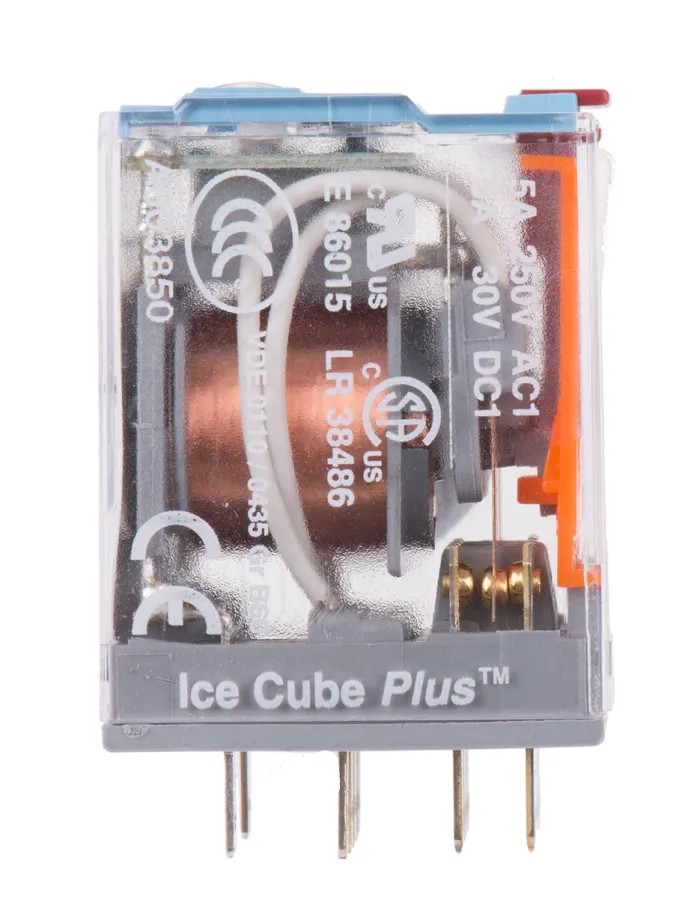

Releco Power Relay 115V AC Coil 5A Switching Current 4PDT C9-A41X / AC 115 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 37.5mm |
| Length | 28mm |
| Model | C9-A41X / AC 115 V |
| Width | 21mm |
| Contact Material | Gold Plated |
| Series | C9 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 4.3kΩ |
| Coil Voltage | 115V ac |
| Switching AC Voltage | 250V ac |
| Coil Power | 1W |
Key Features
- The relay coil operates at 115V AC with 1W coil power for efficient performance.
- Contact configuration is 4PDT providing four pole double throw switching.
- Switching current is rated at 5A with a switching AC voltage up to 250V AC.
- Gold plated contacts ensure reliable conductivity and durability.
- Compact dimensions of 28mm length, 21mm width, and 37.5mm height for easy integration.
- Quick connect terminals facilitate convenient wiring and installation.
- Operating temperature range from -40°C to 60°C enables use in varied environments.
- Coil resistance is 4.3kΩ ensuring stable coil excitation.
Product Description
Releco C9-A41X / AC 115 V power relay is a non-latching 4PDT plug-in mount relay designed for industrial and automation electrical control systems. It features a 115V AC coil voltage with a coil power of 1W, providing efficient operation with low power consumption. The relay is capable of switching 5A current with a contact configuration of 4PDT, suitable for multiple circuit switching needs.
The relay includes convenient features such as a colour coded dual function test button that can be pushed for testing or lifted to latch. It is equipped with a LED indicator and mechanical flag indicator to visually confirm relay status. The contacts are gold plated, enhancing longevity and ensuring reliable electrical connections under demanding conditions.
Its compact size of 28mm length, 21mm width, and 37.5mm height allows for easy mounting in control panels. The quick connect terminal type facilitates rapid installation and servicing. The operating temperature range of -40°C to 60°C ensures reliable performance in harsh environments.
The coil resistance of 4.3kΩ contributes to stable coil current flow, and the device complies with RoHS directive for environmental safety. Industrial sectors such as automation, manufacturing, and control panel assembly benefit from this relay’s robust design and versatile switching configuration.
The relay coil operates at 115V AC with 1W coil power for efficient performance. Contact configuration is 4PDT providing four pole double throw switching. Switching current rated at 5A with switching AC voltage up to 250V AC.
Gold plated contacts ensure reliable conductivity and durability. Compact dimensions suitable for panel mounting. Quick connect terminals for ease of wiring. Operates reliably from -40°C to 60°C ambient temperature. Coil resistance of 4.3kΩ supports stable coil activation.
Complies with RoHS environmental standards. Test button, LED, and mechanical flag indicators for status monitoring.
This power relay is an essential component in electrical automation, HVAC controls, industrial manufacturing, and commercial equipment systems. Releco's adherence to quality standards enables dependable performance in demanding relay switching applications. Explore the extensive range of Power Relays and components available on EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 115V AC.
The contact configuration of this model is 4PDT, providing four pole double throw switching capabilities.
This relay is rated for a maximum switching current of 5A.
The dimensions of this relay are 28mm in length, 21mm in width, and 37.5mm in height.
The operating temperature range for this relay is from -40°C to 60°C.
The coil power of this model is 1W, which supports efficient operation with low power consumption.
This relay features quick connect terminals for ease of wiring and installation.
The coil resistance of this relay is 4.3kΩ, ensuring stable coil excitation.
The maximum switching AC voltage for this relay is 250V AC.
The contacts of this relay are made of gold plated material, enhancing conductivity and durability.
Yes, this relay complies with RoHS environmental standards.
This relay includes a colour coded dual function test button, LED indicator, and mechanical flag indicator for monitoring its status.
