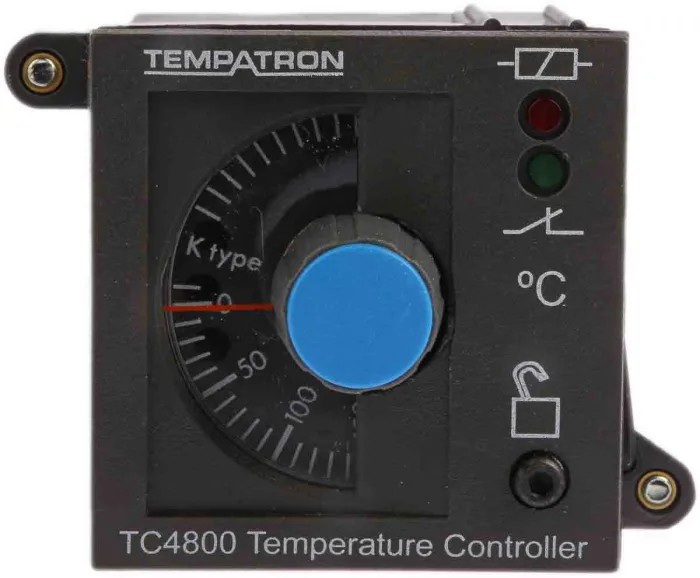

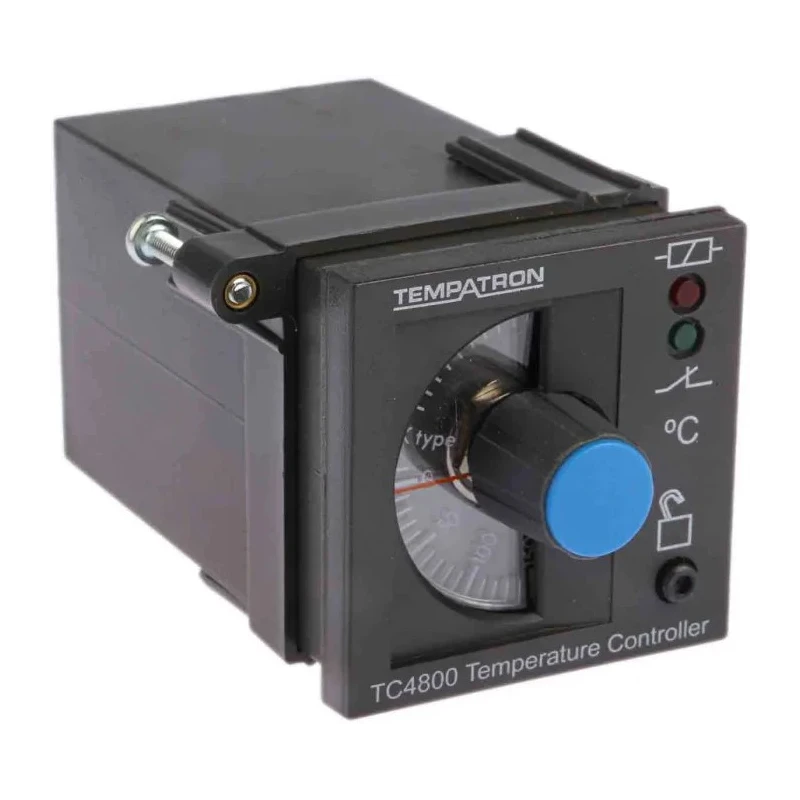

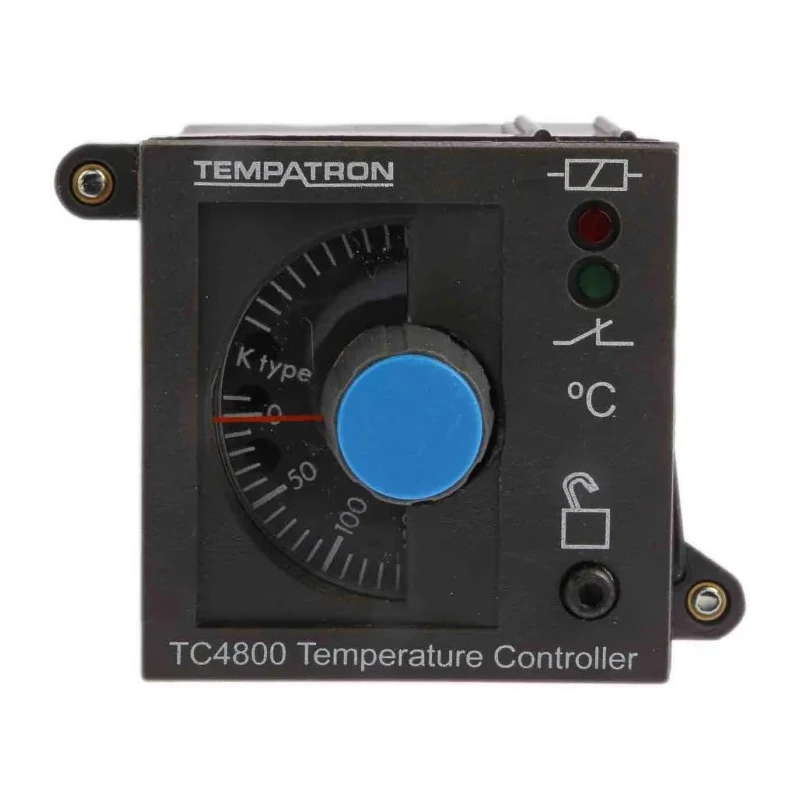

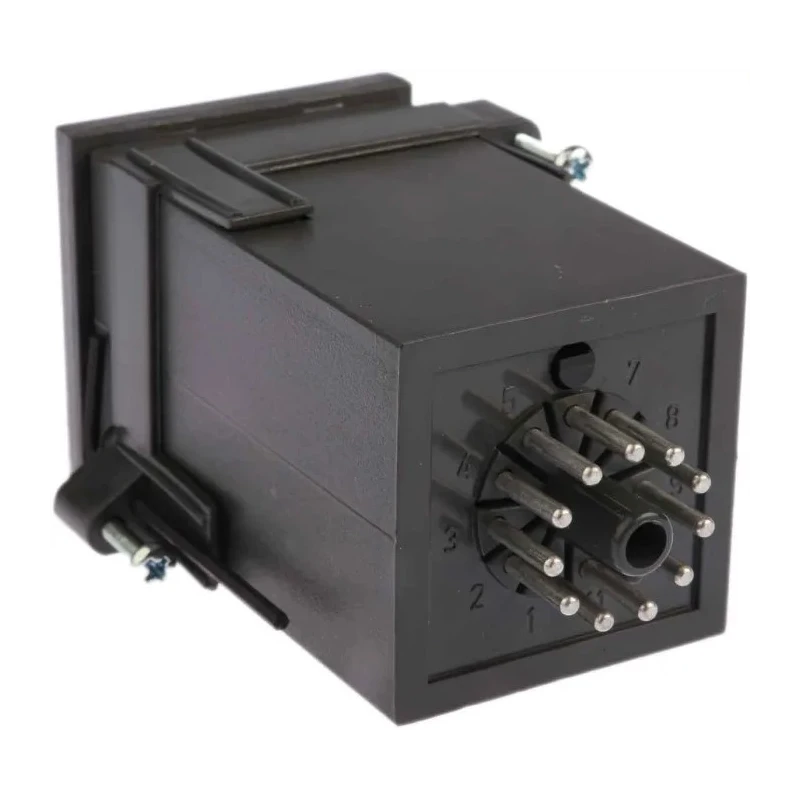

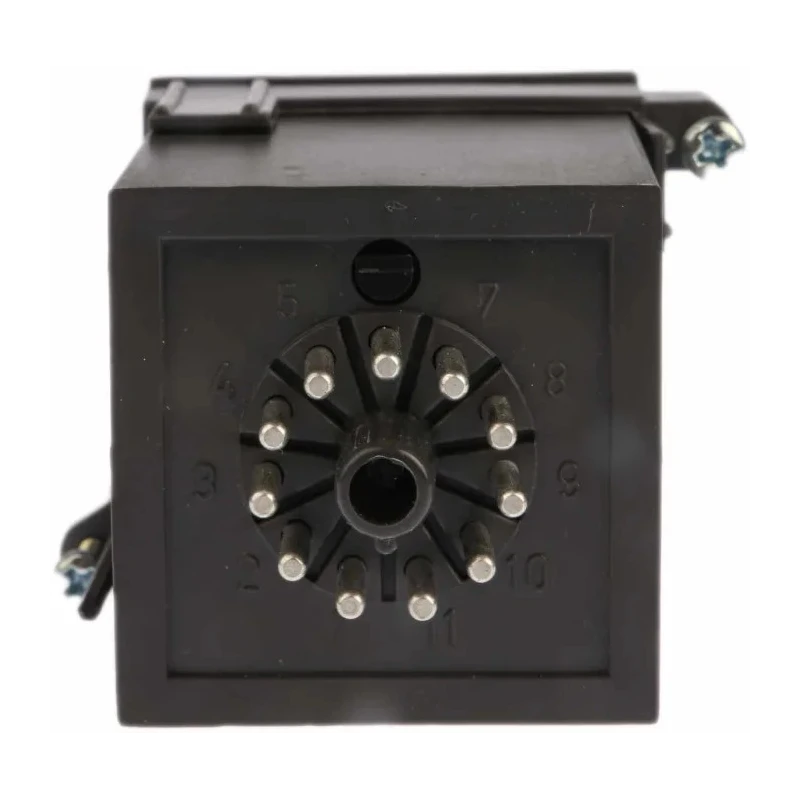

Tempatron On-Off Temperature Controller DIN Rail, Panel, Surface Mount, 5 Relay Outputs, 230V AC TC4800
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | LED |
| Brand | Tempatron |
| Length | 89mm |
| Model | TC4800 |
| IP Rating | IP40 |
| Width | 48mm |
| Mount Type | DIN Rail, Panel, Surface |
| Output type | Relay |
| Series | TC4800 |
| Input Type | K Type Thermocouple |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 5A |
| Number of outputs | 5 |
| Maximum Voltage | 240V ac |
| Standards/Approvals | CE marked (EN61010-1,EN50081-1/50082-1 EMC directives) |
| Maximum Supply Voltage | 230V ac |
| Panel Depth | 74mm |
| Tempatron V7453 Panel On-Off Temperature Controller, 1 Output Relay 24V acBrand | Tempatron |
Key Features
- Accepts K type thermocouple input for reliable temperature sensing.
- Operates at 230V AC with maximum voltage rating of 240V AC.
- Features LED display for operational status and supply indication.
- Durable DIN rail, panel, or surface mount suitable for various installations.
- Supports temperature range from -10°C to 50°C ambient temperature.
- Compact design with length 89mm, width 48mm, and panel depth 74mm.
- Equipped with 5 relay outputs rated for 5A maximum current each.
- CE marked with EN61010-1 and EN50081-1/50082-1 EMC standards compliant.
Product Description
Tempatron TC4800 On-Off Temperature Controller delivers versatile temperature management with 5 relay outputs operating at 230V AC supply voltage. Designed for industrial process control, it accepts K type thermocouple inputs for accurate temperature monitoring.
The controller supports mounting on DIN rails, panels, or surface, ensuring flexible installation options. It features a robust and compact 48mm square housing that fits a standard 1/16 DIN socket, with panel cut-out dimensions of 45mm by 45mm. The LED display provides clear status and supply indication, facilitating easy monitoring.
Operating across an ambient temperature range of -10°C to 50°C, this controller is suitable for various environments. It comes with 5 relay outputs rated at 5A each, enabling control of multiple devices or processes simultaneously. The device is CE marked and meets EN61010-1 safety standards and EMC directives EN50081-1 and EN50082-1, ensuring compliance with industrial regulations.
Its scale range extends from 0°C to 400°C, tailored specifically for K type thermocouples. The unit supports reverse or direct action and includes features such as temperature setting locking via included hex key. Typical applications include automation systems, HVAC, manufacturing, laboratory setups, and water treatment plants.
The controller's IP40 rating guarantees basic protection against solid objects, making it suitable for indoor control panel environments. This product is engineered and manufactured in the United Kingdom, reflecting high-quality standards.
Accepts K type thermocouple input for reliable sensor readings. 5 relay outputs rated to 5A maximum current for multi-device control. DIN rail, panel, and surface mounting flexibility. Operating temperature range from -10°C to 50°C ambient.
CE marked with compliance to relevant safety and EMC standards. LED status and supply indication for operational clarity. Compact dimensions ideal for standard panel cut-outs. Designed for diverse industrial process control applications.
For more industrial instrumentation and temperature control products, explore EnvMart’s comprehensive range of Temperature Controllers and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an ambient temperature range from -10°C to 50°C.
It is equipped with 5 relay outputs, each rated for a maximum current of 5A.
It accepts K type thermocouple inputs for reliable temperature sensing.
This unit can be mounted on DIN rails, panels, or surfaces, providing flexible installation options.
The maximum supply voltage for this temperature controller is 230V AC, with a maximum voltage rating of 240V AC.
It has a length of 89mm, a width of 48mm, and a panel depth of 74mm.
It features an LED display for operational status and supply indication.
The unit has an IP40 rating, providing basic protection against solid objects.
It is CE marked and complies with EN61010-1 and EMC directives EN50081-1 and EN50082-1.
The maximum operating temperature for this model is 50°C.
Yes, it includes a feature for temperature setting locking via an included hex key.
It is engineered and manufactured in the United Kingdom.
