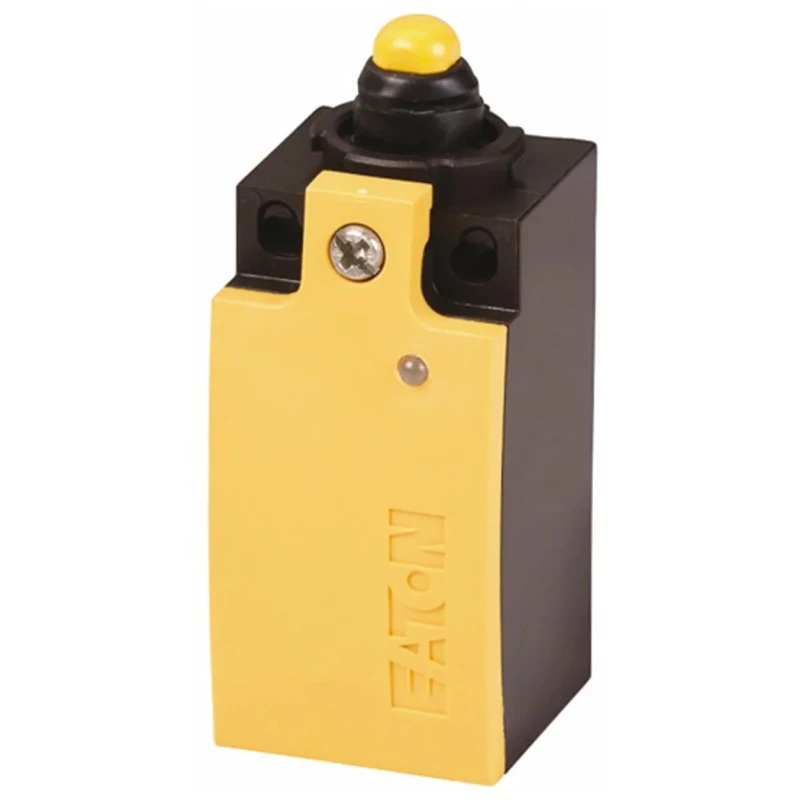

Eaton LS-Titan Series Plunger Limit Switch, 2 NC Contacts, 19mA Switching Current, IP67/IP66 Plastic Housing 266122 LSE-02

Eaton 266122 LSE-02 LS-Titan Series Plunger Limit Switch is designed for reliable position detection and control in a wide range of industrial environments. Featuring a plunger type actuator and two normally closed (NC) contacts, this switch is ideal for safety and automation systems where precision and durability are critical.

The plastic housing provides robust IP67 and IP66 ingress protection, safeguarding the internal components from dust and water exposure, which makes it suitable for challenging industrial settings such as manufacturing lines, material handling equipment, and food and beverage processing.

The switch supports a switching current of 19mA at 30V DC, with slow action contacts ensuring smooth and dependable switching action. Cage clamp terminals facilitate easy wiring and maintenance-free operation, combined with vibration resistance for enduring performance.

Its compact size with dimensions of 76mm length, 33.5mm width, and 31mm depth allows installation in constrained spaces. The operating force of 8N ensures that actuator movements are registered effectively without excessive mechanical stress.

The LS-Titan series is built to endure harsh operating environments, offering a mechanical life rated at 3,000,000 operations and an operating temperature range from -25°C to 70°C. Compliance with EN/IEC standards underscores its suitability for international industrial applications.

Common applications include escalators, electrical assembly equipment, material handling systems, and various automation control scenarios in industrial, manufacturing, and food processing sectors.

This limit switch features a plunger actuator type enabling precise mechanical control. It supports a switching current of 19mA and a switching DC voltage of 30V dc. The device includes slow action contacts with cage clamp terminals ensuring reliable connectivity.

The operating force required is 8N, supporting efficient activation with minimal effort. Constructed with a durable plastic housing, it is rated for mechanical life up to 3,000,000 operations. The unit is suitable for use in temperatures ranging from -25°C to 70°C.

Dimensions include a length of 76mm, width of 33.5mm, and depth of 31mm for compact installation. This product complies with EN/IEC standards and originates from Germany. Explore Eaton Limit Switches within our Electronics & Electrical category to find products that meet your precise industrial automation needs on EnvMart.
