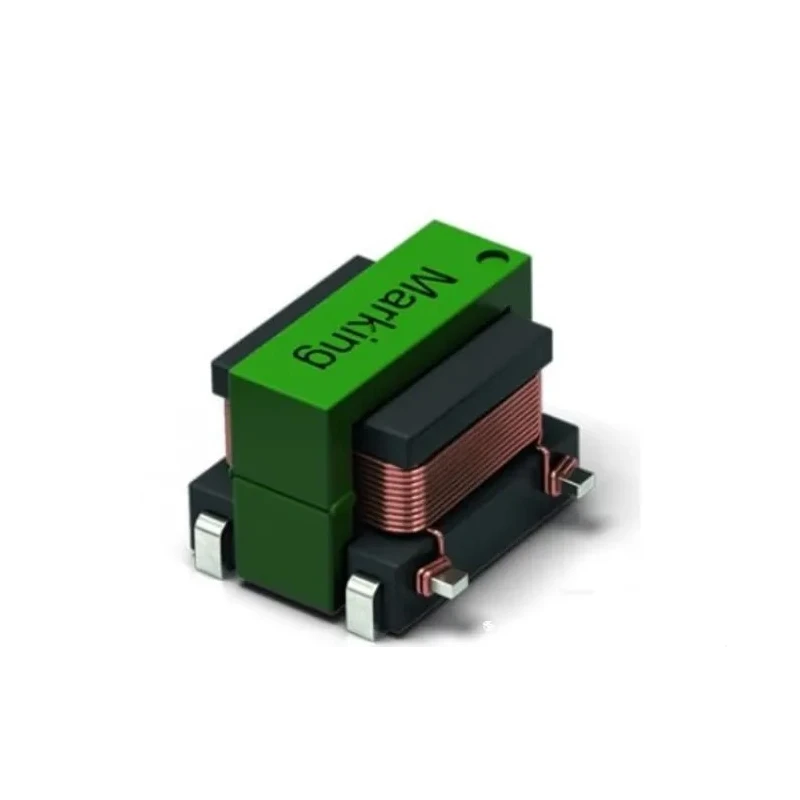

Wurth Elektronik 18 V 1 Output PCB Transformer, Single Secondary, Single Primary, 80 V Primary Voltage, 7A 749252040

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 18 V 1 Output PCB Transformer, Single Secondary, Single Primary, 80 V Primary Voltage, 7A 749252040

Name: Wurth Elektronik 18 V 1 Output PCB Transformer, Single Secondary, Single Primary, 80 V Primary Voltage, 7A 749252040
Brand: Wurth Elektronik
SKU: 294420
Price: 5.26 USD
Availability: InStock



Category PCB Transformer Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Length	4.7mm
Depth	3.55mm
Width	4.65mm
Mount Type	PCB
Series	WE-CST
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Winding Type	Single Secondary, Single Primary
Standards/Approvals	REACH, RoHS
Number of Pins	4
Primary Voltage	80 V
Secondary Voltage	18 V
Maximum Operating Frequency	1MHz
PCB Transformer Current	7A

Key Features

This PCB transformer features a single secondary and single primary winding type for effective electrical isolation.
It has compact dimensions of 4.7mm length, 4.65mm width, and 3.55mm depth suitable for space-constrained applications.
Operating temperature ranges from -40°C to 125°C, making it reliable for various industrial conditions.
Compliance with REACH and RoHS standards ensures environmental safety and regulatory compliance.
Maximum operating frequency is rated at 1MHz, ideal for switch mode power supplies and current sensing.
The transformer is part of the WE-CST series known for current sensing applications.
Designed specifically for PCB mount type ensuring ease of integration in electronic circuits.

Product Description

Wurth Elektronik 749252040 18 V 1 Output PCB Transformer from the WE-CST series offers a robust solution for AC current detection, switch mode power supplies, and overload sensing in industrial and electronic applications. Its single secondary and primary winding design facilitates precise current measurement on printed circuit boards.

The compact low-profile package with dimensions 4.7mm x 4.65mm x 3.55mm makes it suitable for high-density PCB layouts. It supports a primary voltage of 80 V and a transformer current of 7A. Operating within a temperature range of -40°C to 125°C, it ensures reliable performance under harsh environmental conditions.

Designed for PCB mounting, this transformer complies with REACH and RoHS directives, confirming its environmental and safety compliance. The maximum operating frequency of 1MHz makes it apt for high frequency power supplies and metering applications.

Typical industrial use cases include current sensing in switch mode power supplies, overload detection, load drop/shutdown detection, and AC current metering. The Wurth Elektronik PCB transformer is manufactured in China according to stringent quality standards.

This PCB Transformer features a single secondary and single primary winding type for effective electrical isolation. It has compact dimensions of 4.7mm length, 4.65mm width, and 3.55mm depth suitable for space-constrained applications.

Operating temperature ranges from -40°C to 125°C, making it reliable for various industrial conditions. Compliance with REACH and RoHS standards ensures environmental safety and regulatory compliance. Maximum operating frequency is rated at 1MHz, ideal for switch mode power supplies and current sensing.

The transformer is part of the WE-CST series known for current sensing applications. Designed specifically for PCB mount type ensuring ease of integration in electronic circuits.

This product is ideal for use in electronics manufacturing, industrial automation, and power supply design projects where precision and reliability are critical. Discover more Wurth Elektronik transformers and components at EnvMart for your technical and industrial requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating frequency of this transformer is rated at 1MHz, making it suitable for high-frequency applications such as switch mode power supplies and current sensing.

This model has compact dimensions of 4.7mm in length, 4.65mm in width, and 3.55mm in depth, which is ideal for space-constrained applications.

The primary voltage rating for this transformer is 80 V, which is suitable for various industrial applications.

The secondary voltage output of this transformer is 18 V, designed for effective electrical isolation in applications.

This transformer has a current rating of 7A, allowing it to handle significant electrical loads in various applications.

The operating temperature range for this transformer is from -40°C to 125°C, ensuring reliable performance under harsh conditions.

This model is designed for PCB mounting, ensuring ease of integration into electronic circuits.

It features a single secondary and single primary winding type, which facilitates effective electrical isolation and current measurement.

This transformer complies with REACH and RoHS standards, ensuring environmental safety and regulatory compliance.

This transformer has 4 pins, which are necessary for its connection and operation in electronic circuits.
