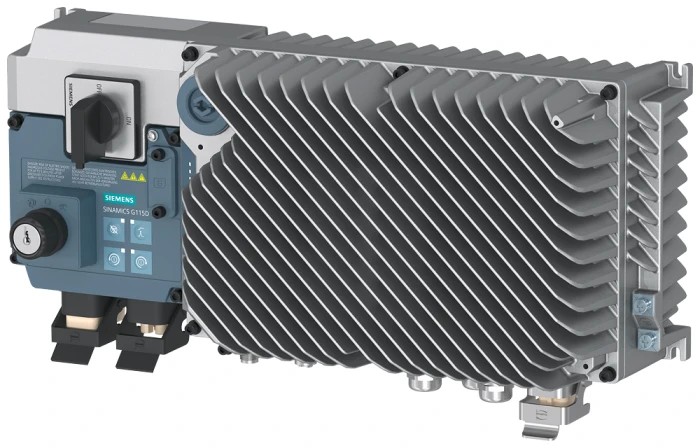

Siemens Inverter Drive 3 kW 3 Phase SINAMICS G115D Series 480V 15.4 A 6SL3520-0XH23-0AF0

Siemens 6SL3520-0XH23-0AF0 is a high-performance Inverter Drive from the SINAMICS G115D series, providing 3 kW power in a 3 phase configuration suitable for demanding industrial motor control and automation needs. Rated for 480 V supply voltage and 15.4 A maximum output current, this inverter drive supports efficient and precise speed control up to 550 Hz output frequency.

The device is wall-mountable with dimensions of 240 mm length, 425 mm width, and 134 mm depth, and features robust IP65 and IP66 ratings ensuring protection from dust and water, making it suitable for harsh industrial environments. It operates reliably in a wide temperature range from -30°C to 55°C.

Designed for use with 3 Phase AC motors, including SIMOGEAR 2KJ8 geared motors that feature high efficiency classes IE3 and IE4, this drive supports advanced encoderless vector control for sophisticated conveyor and motor applications.

Safety is integral with integrated STO safety function and options for fail-safe digital inputs or PROFIsafe, enhancing operational reliability in automated systems. Its modular design allows for easy installation directly on the machine, eliminating the need for a separate control cabinet and reducing both space footprint and cooling demands.

Compliant with numerous standards such as RoHS, Low Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC, UL, CE, and others, this Siemens inverter drive meets global industry requirements ensuring quality and regulatory conformity.

This product is ideal for industrial automation, manufacturing lines, material handling, and conveyor systems requiring reliable, energy-saving motor drives with advanced control capabilities.

Provides 3 kW power rating with 3 phase operation. Supports maximum output current of 15.4 A for demanding applications. Compatible with 3 Phase AC motors including SIMOGEAR 2KJ8 geared motors. Built for wall mounting with compact dimensions: 240 mm length, 425 mm width, and 134 mm depth.

IP65 and IP66 rated for protection against dust and water ingress. Operates efficiently between -30°C and 55°C temperature range. Supports output frequency up to 550 Hz for versatile motor speed control. Complies with multiple international standards and directives for safety and emissions.

Designed with integrated safety features including STO function with fail-safe inputs. Enables installation without control cabinet, reducing space and cooling requirements. Explore Siemens Inverter Drives and related automation hardware at EnvMart for industrial, manufacturing, and automation system solutions.
