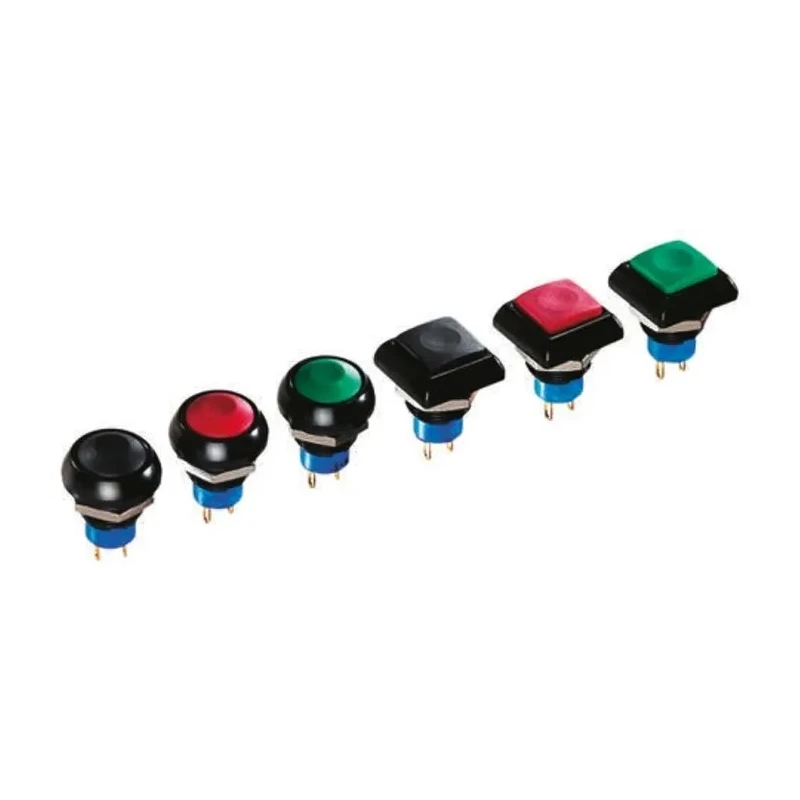

APEM IP Series Blue Actuator Momentary Push Button Switch, Panel Mount, 12.9 mm Cutout, SPDT, IP67, 24 V dc IPR5SAD1

The APEM IPR5SAD1 is a high-quality IP Series blue actuator push button switch designed for momentary operation and panel mounting, featuring a precise 12.9 mm panel cutout. This push button switch features a single-pole double-throw (SPDT) contact configuration and operates reliably at 24 V dc, making it suitable for a wide range of electrical and automation systems.

Constructed for demanding industrial environments, it offers robust performance with an IK06 rating for impacts and is resistant to corrosive salt spray, ensuring longevity even in harsh conditions. With an IP67 ingress protection rating, the switch is completely dust-tight and protected against temporary water immersion, ideal for rugged applications.

The actuator is blue in color and round in style, providing excellent tactile feedback for precise control and ease of use. The solder terminal type facilitates secure and reliable electrical connections.

Designed to operate within a wide temperature range of -40°C to 85°C, this switch remains functional in extreme environments. It complies with RoHS directives and meets stringent standards such as EN 50102 and IEC 512-4 and IEC 512-6, reflecting its safety and environmental compliance.

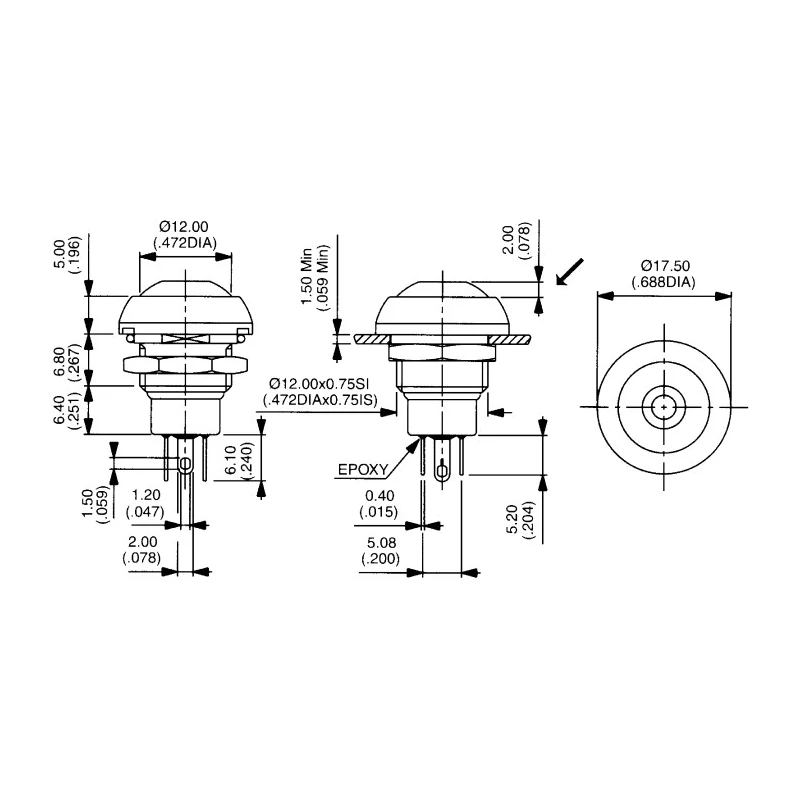

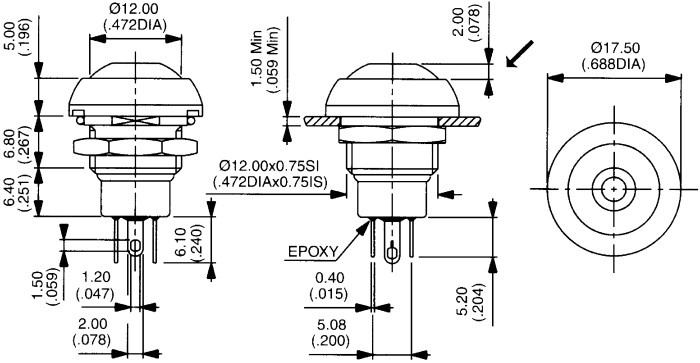

The switch's compact size with a 12.9 mm panel cutout enables easy integration into industrial control panels and machines. Its reliable SPDT contact system supports a 5A AC current rating for various electrical loads.

The actuator color is blue and style is round for excellent tactile feedback. This switch features a solder terminal type and supports a switch contact current of 5A AC. It is designed to be very robust with an IK06 impact rating and is resistant to salt spray, suitable for harsh environments.

The operating temperature range is from -40°C to 85°C, ensuring reliable function in extreme conditions. The switch complies with RoHS standards and meets EN 50102 and IEC 512-4/-6 requirements. Mounting is designed for panels with a 12.9 mm cutout size.

The IP67 ingress protection rating offers excellent dust tightness and water immersion protection. Manufactured in France, it offers a high-quality build for industrial and commercial applications.

This APEM push button switch is ideal for use in industrial automation, electrical panels, machinery control systems, and harsh environment applications where durability and precise momentary control are essential.
