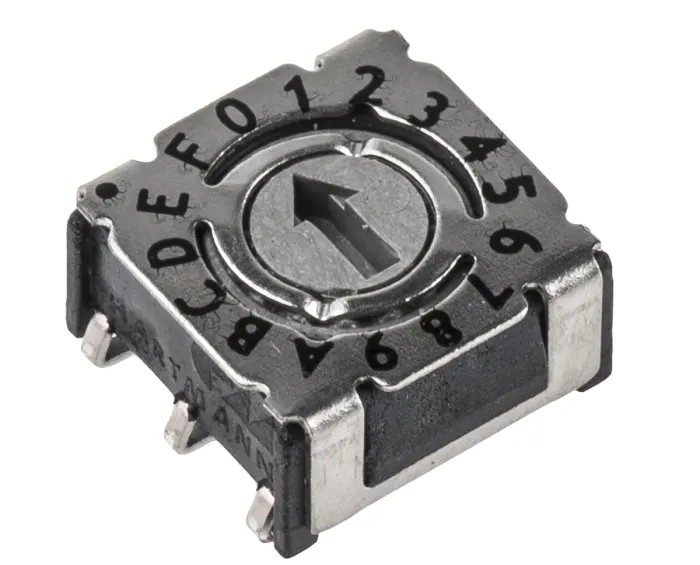

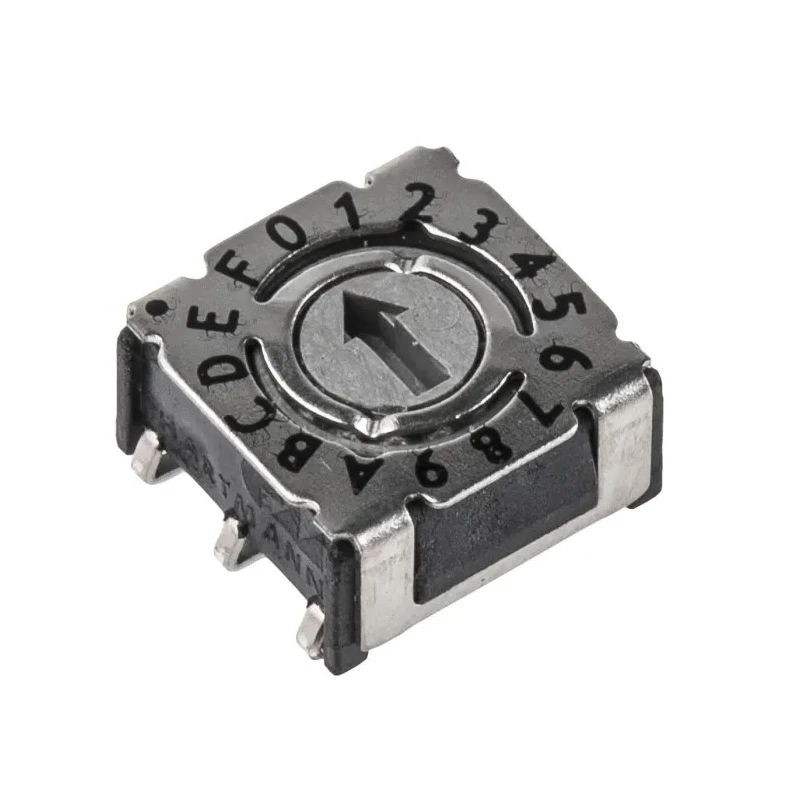

Hartmann Rotary Coded DIP Switch Surface Mount with SMJ Horizontal Mounting P36SMJ103
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Mounting | SMJ |
| Model | P36SMJ103 |
| Mount Type | Surface Mount |
| High temperature resistance | -50 to +125°C (operating) |
Key Features
- The switch features 10 and 16 position coding options using BCD or Hexadecimal formats.
- Available actuator types include screwdriver and spindle for versatile operation.
- Constructed with abrasion resistant hard gold plated contacts for enhanced durability.
- Switch is solder and flux sealed, washable with an IP67 comparable rating.
- Operates reliably in temperatures from -50 to +125°C for high temperature resistance.
- Solid PCB pins ensure secure mounting and excellent electrical performance.
- Designed for space-constrained industrial, electrical, and automation applications.
Product Description
Hartmann P36SMJ103 Rotary Coded DIP Switch is a surface mount device featuring low profile and horizontal SMJ mounting suitable for industrial and electrical automation use.
This rotary code switch includes two actuator styles: screwdriver and spindle, each offering BCD (10 positions) or Hexadecimal (16 positions) coding options to meet diverse control requirements.
Key design aspects include abrasion resistant hard gold plated contacts which provide long-term reliability in harsh environments. The switch is fully solder and flux sealed and washable to a comparable IP67 standard, ensuring robustness against contaminants and moisture.
With operating temperature range from -50 to +125°C, this switch is engineered to endure extreme thermal conditions in applications such as industrial machinery, automation control panels, HVAC systems, and manufacturing equipment.
The P36SMJ103 model incorporates solid PCB pins for strong mechanical fixation and stable electrical connectivity on printed circuit boards. The switch supports surface mount technology with J type terminals facilitating automated assembly processes.
Two actuator types enhance operational flexibility and customization options. Available in both Binary Coded Decimal and Hexadecimal configurations for varied digital input selection. Robust construction with sealed and washable design contributes to extended product life and maintenance ease.
High temperature resistance expands deployment capability across demanding industrial environments.
Hartmann Rotary Coded DIP Switch P36SMJ103 is ideal for use in electronics assemblies, industrial automation, instrumentation, and control systems requiring compact, reliable rotary encoding solutions.
Explore more products in the Rotary Coded DIP Switch category at EnvMart for diverse component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -50 to +125°C, making it suitable for extreme thermal conditions.
It features a surface mount design with SMJ horizontal mounting, suitable for various industrial applications.
The P36SMJ103 is manufactured in Germany.
It is ideal for use in electronics assemblies, industrial automation, instrumentation, and control systems requiring compact rotary encoding solutions.
It incorporates solid PCB pins that provide strong mechanical fixation and stable electrical connectivity on printed circuit boards.
Yes, it is designed to be washable and meets an IP67 comparable rating, ensuring robustness against moisture.
Key features include abrasion-resistant contacts, a sealed design, and a wide operating temperature range, all contributing to its long-term reliability.
It uses J type terminals, which facilitate automated assembly processes for efficient installation.
The high temperature resistance expands the deployment capability of this switch across demanding industrial environments.
