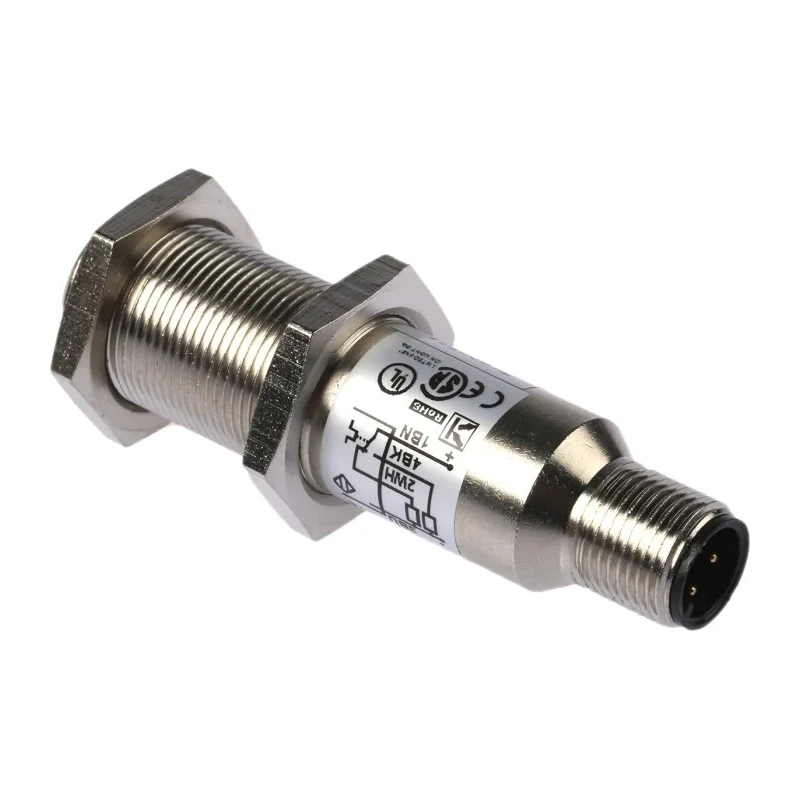

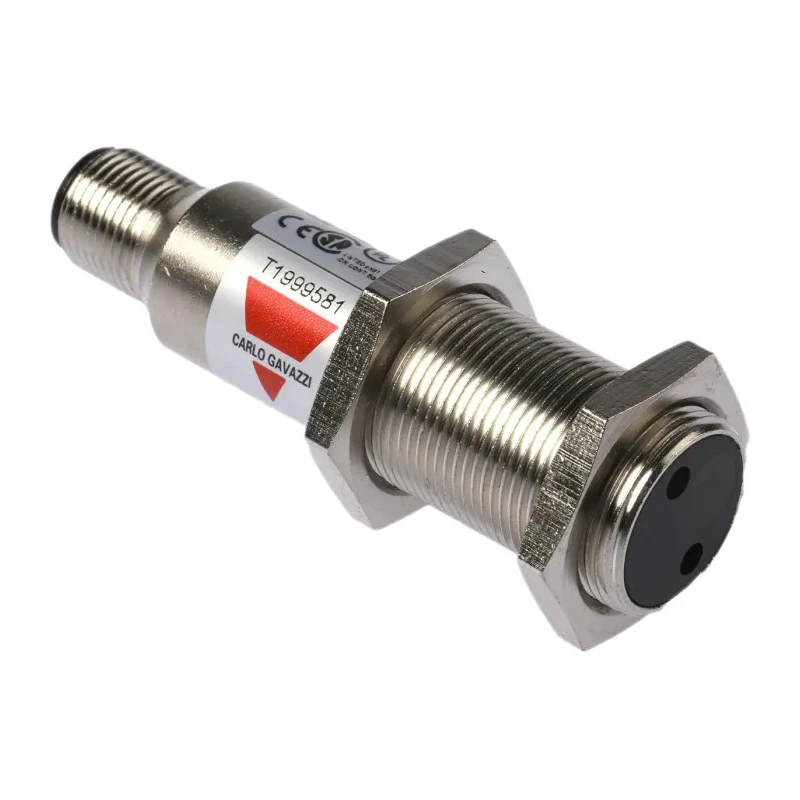

Carlo Gavazzi Diffuse Photoelectric Sensor Barrel Style 400 mm Detection Range PNP Output IP67 EO1804PPAS-1
Specifications
| Country of Origin | Lithuania |
|---|---|
| Output | 200 mA NPN or PNP |
| Range | 400 mm adjustable |
| Brand | Carlo Gavazzi |
| Response time | 3.2ms |
| Light Source | LED |
| Detection range | 400 mm |
| Model | EO1804PPAS-1 |
| IP Rating | IP67 |
| Housing Material | Metal |
| Output type | PNP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 20mA |
| DetectIon Type | Diffuse |
| Terminal type | Plug |
| Protection | Reverse polarity, short-circuit, transients |
| Supply Voltage | 10 to 40 V dc |
| Maximum dc Voltage | 40V dc |
| Standards/Approvals | CSA, IEC, UL |
| Sensor Style | Barrel |
Key Features
- This sensor operates with a modulated infrared LED light source for high accuracy.
- The robust M18 metal housing ensures heavy-duty durability and an IP67 rating for water and dust resistance.
- A single turn 270° potentiometer allows easy range adjustment up to 400 mm.
- The sensor provides a 4-wire PNP complementary output compatible with many industrial control systems.
- It supports supply voltages from 10 to 40 V DC with protection against reverse polarity and short circuits.
- Designed for use in harsh industrial environments with high immunity to ambient light interference.
- Operating temperature range is from -20°C to 60°C.
- Applications include automation, manufacturing processes, material handling, and safety systems.
Product Description
Carlo Gavazzi EO1804PPAS-1 diffuse Photoelectric Sensor is designed for industrial automation and control applications requiring reliable object detection within a 400 mm range. This barrel-style sensor features a rugged M18 metal housing rated IP67 for protection against dust and water ingress, allowing use in demanding environments.
The sensor utilizes modulated infrared LED light for high detection accuracy and immunity to ambient light interference. A 270° single turn potentiometer enables simple and precise range adjustment up to 400 mm to suit varying application requirements.
Operating over a supply voltage range from 10 to 40 V DC, the EO1804PPAS-1 provides a PNP output, capable of switching currents up to 200 mA. Protection features include reverse polarity, short circuit, and transient suppression to enhance reliability in industrial settings.
With a fast response time of 3.2 ms, it supports dynamic sensing and control tasks. Its metal construction and IP67 rating ensure durability in manufacturing, material handling, packaging, and other automation environments.
Typical industrial uses include presence detection, counting, positioning, and quality control. Carlo Gavazzi's sensor line offers proven robustness and versatility for diverse operational needs.
This sensor operates with a modulated infrared LED light source for high accuracy. The robust M18 metal housing ensures heavy-duty durability and an IP67 rating for water and dust resistance. A single turn 270° potentiometer allows easy range adjustment up to 400 mm.
The sensor provides a 4-wire PNP complementary output compatible with many industrial control systems. It supports supply voltages from 10 to 40 V DC with protection against reverse polarity and short circuits. Designed for use in harsh industrial environments with high immunity to ambient light interference.
Operating temperature range is from -20°C to 60°C. Applications include automation, manufacturing processes, material handling, and safety systems. Explore more sensors and automation components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an adjustable detection range of up to 400 mm.
It provides a PNP output type with a maximum current of 200 mA.
The sensor operates with a supply voltage range from 10 to 40 V DC.
The maximum operating temperature is 60°C, while the minimum is -20°C.
The response time of this sensor is 3.2 ms.
It has an IP67 rating, indicating it is protected against dust and water ingress.
The housing is made of metal, providing durability for industrial applications.
A single turn 270° potentiometer allows for easy and precise range adjustment.
It includes protection against reverse polarity, short circuits, and transients.
This sensor is suitable for applications such as automation, manufacturing processes, and material handling.
It operates with a modulated infrared LED light source for high accuracy.
It meets standards set by CSA, IEC, and UL.
