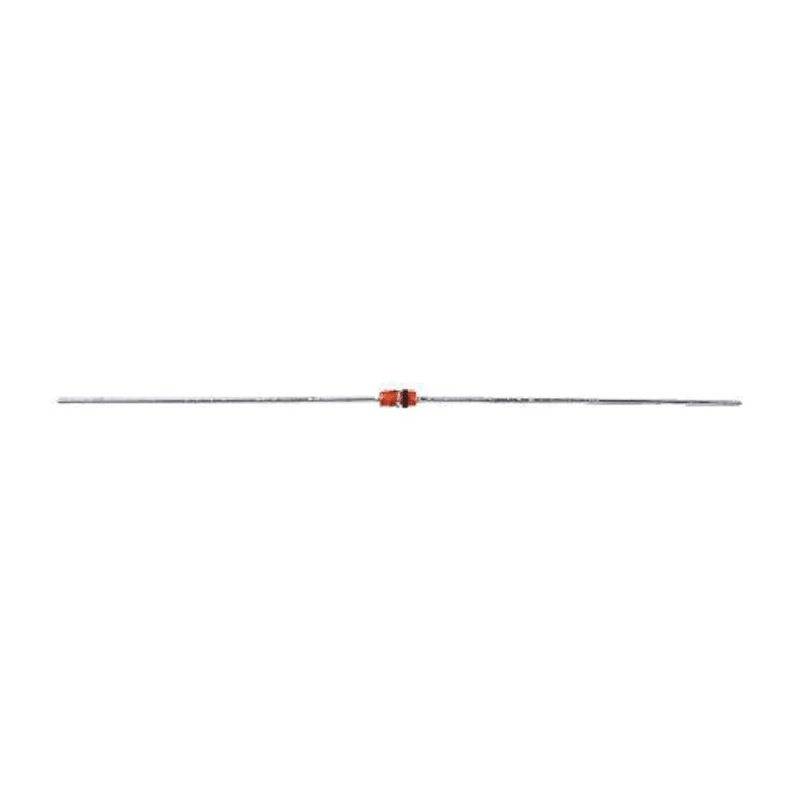

Vishay 10 V 500 mW Zener Diode Single Through Hole 2-Pin SOD-27 TZX10D-TR

Free Delivery in India | Lowest Global Shipping Charges

Vishay 10 V 500 mW Zener Diode Single Through Hole 2-Pin SOD-27 TZX10D-TR

Name: Vishay 10 V 500 mW Zener Diode Single Through Hole 2-Pin SOD-27 TZX10D-TR
Brand: Vishay
SKU: 292420
Price: 0.05 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Length	3.9mm
Model	TZX10D-TR
Mount Type	Through Hole
Series	TZX
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	10V
Zener Type	Voltage Regulator
Maximum Zener Impedance	25Ω

Key Features

The diode offers a nominal Zener voltage of 10 V with a tolerance of ±2 percent.
It supports a maximum power dissipation of 500 mW suitable for low power applications.
The maximum Zener impedance is 25 ohms ensuring stable voltage regulation.
Operating temperature ranges from -65°C to 175°C for extended reliability.
Package type SOD-27 allows for through-hole mounting in circuits.
It is AEC-Q101 qualified meeting automotive industry standards.
Maximum reverse leakage current is 1 microampere at test current 5 mA ensuring low leakage loss.
This diode exhibits very sharp reverse characteristic with low noise generation.

Product Description

Vishay TZX10D-TR is a high-quality single Zener diode designed for precision voltage regulation applications. This 10 V voltage regulator diode features a maximum power dissipation of 500 mW and comes in a 2-pin SOD-27 package suitable for through-hole mounting. Its nominal Zener voltage of 10 V with ±2% tolerance makes it ideal for providing voltage stabilization in electronic circuits.

Designed for a wide operating temperature range between -65°C and 175°C, the device is reliable under harsh environmental conditions, making it suitable for industrial, automotive, and consumer electronics usage. The maximum Zener impedance of 25 Ω ensures stable operation with minimal voltage variation under load.

Its low maximum reverse leakage current of just 1 μA at 5 mA test current helps minimize power loss, while the sharp reverse characteristic and very low noise make it excellent for sensitive analog and digital circuitry. The diode complies with RoHS regulations and is AEC-Q101 qualified, adhering to rigorous automotive standards.

Typical applications include voltage regulation in power supplies, protecting circuits from voltage surges, and providing reference voltage in measurement and control systems. The diode offers a nominal Zener voltage of 10 V with a tolerance of ±2 percent.

It supports a maximum power dissipation of 500 mW. Package type is SOD-27 with 2 pins for through-hole mount. Maximum reverse leakage current is 1 microampere at test current 5 mA. Complies with RoHS standards and automotive AEC-Q101 qualification.

Operating temperature range spans -65°C to 175°C ensuring durability. Suitable for industrial, automotive, and consumer electronic applications. Sharp reverse characteristic and low noise performance.

For professionals seeking reliable semiconductor components, Vishay's Zener Diodes blend precision and durability. Explore more in the Electronics & Electricals category at EnvMart for your voltage regulation and electronic component needs.
