| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | 1N5228B-TR |
| Mount Type | Through Hole |
| Series | 1N5228B |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 3.9V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 23Ω |

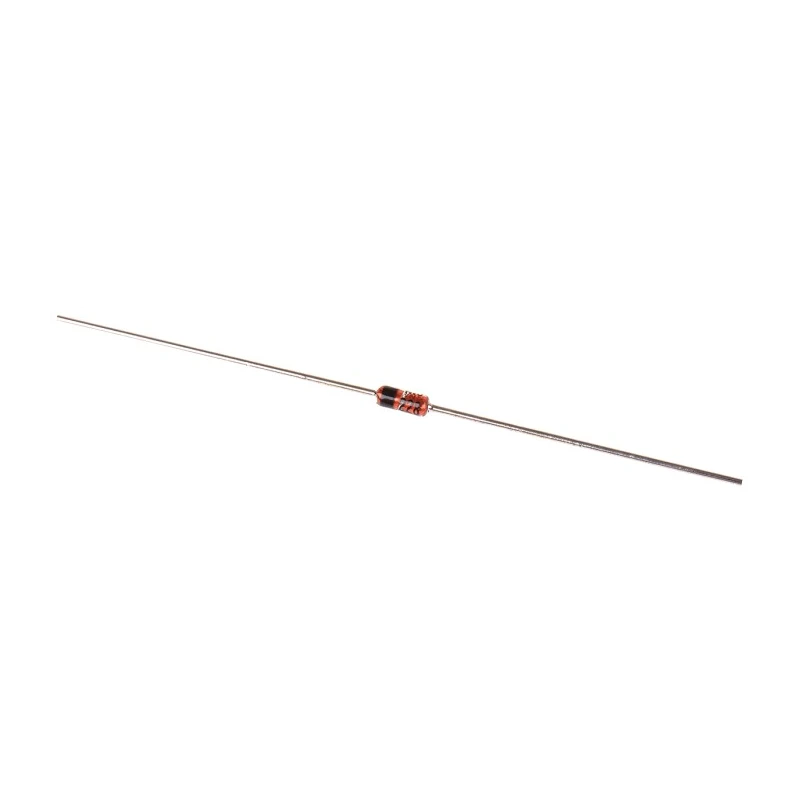

Vishay 1N5228B-TR is a reliable Zener diode designed for voltage regulation and protection in electronic circuits. It features a nominal Zener voltage of 3.9 volts and is capable of dissipating up to 500 milliwatts of power, making it suitable for various general purpose uses in semiconductor applications.
This diode is housed in a through hole 2-pin SOD-27 package, allowing for straightforward installation on printed circuit boards. The device offers excellent thermal stability with a maximum operating temperature rating of 175°C, assuring performance under demanding industrial and automotive environments.
The maximum reverse leakage current of 10 microamperes and Zener impedance of 23 ohms ensure minimal current loss and stable voltage regulation at a test current of 20 mA. Its compact physical dimensions - approximately 3.9 mm in length and 1.7 mm in height - allow efficient space utilization.
Compliant with the automotive industry AEC-Q101 standard, this diode is suitable for industrial, automotive, construction, and laboratory electronics where voltage stabilization is critical.
This diode provides a nominal Zener voltage of 3.9 volts with ±5% tolerance. Maximum power dissipation of 500 milliwatts suitable for general purpose applications. Through hole mounting and 2-pin configuration enable easy PCB installation.
Maximum operating temperature is rated at 175°C for enhanced reliability. Typical Zener impedance is 23 ohms and test current is 20 mA ensuring stable voltage regulation. Maximum reverse leakage current is 10 microamperes, minimizing leakage losses.
Compact SOD-27 package with dimensions approx. 3.9 mm length and 1.7 mm height. Complies with automotive standard AEC-Q101 ensuring quality and durability.
This Vishay 1N5228B-TR Zener Diode is ideal for use in industrial electronics, automotive systems, laboratory testing equipment, power management circuits, and other semiconductor-based applications. It provides precise voltage regulation for enhanced circuit protection and reliability.
