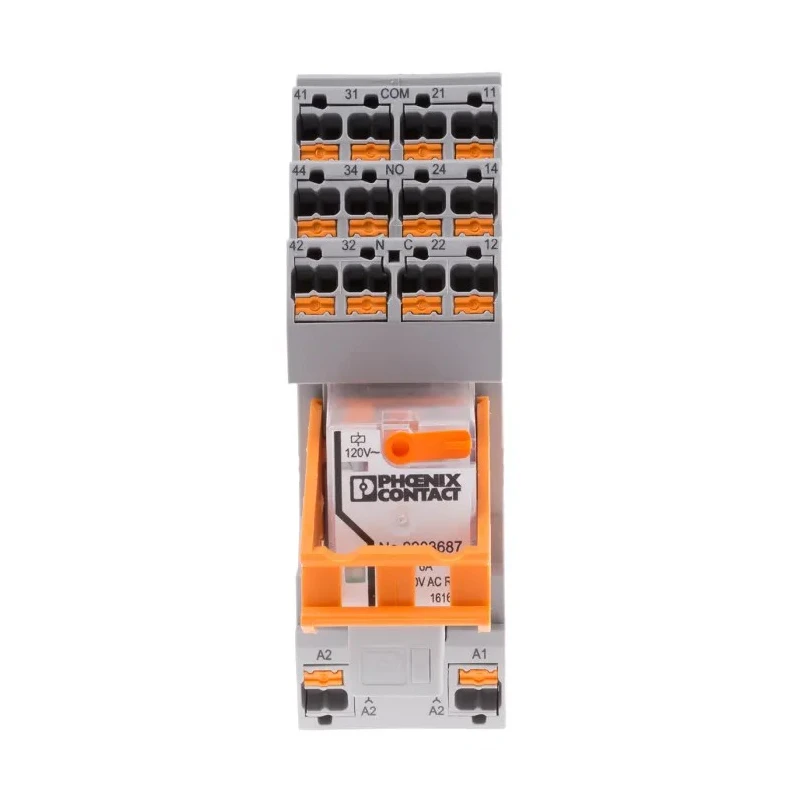

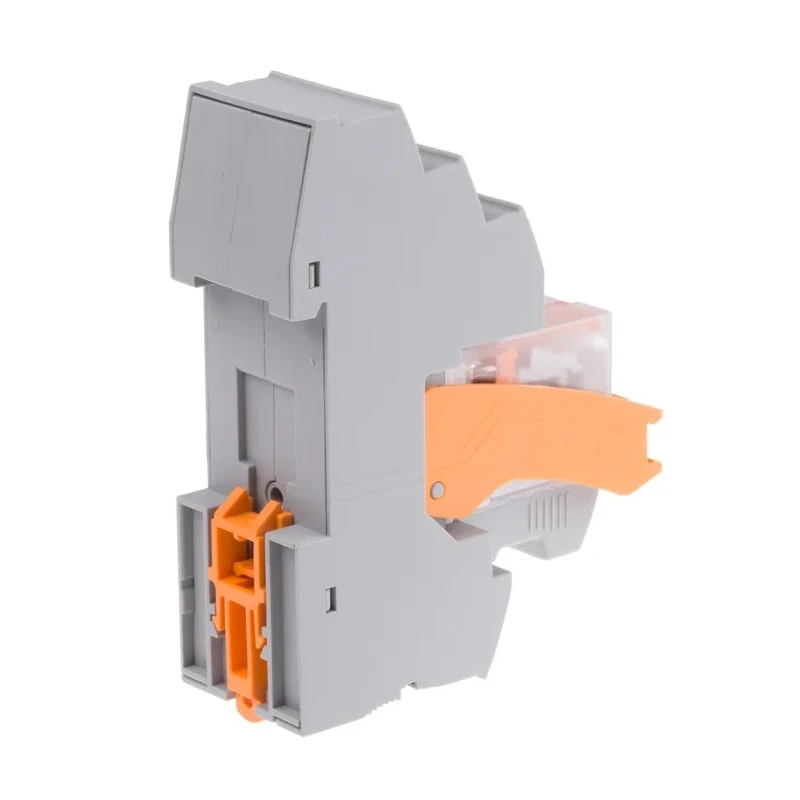

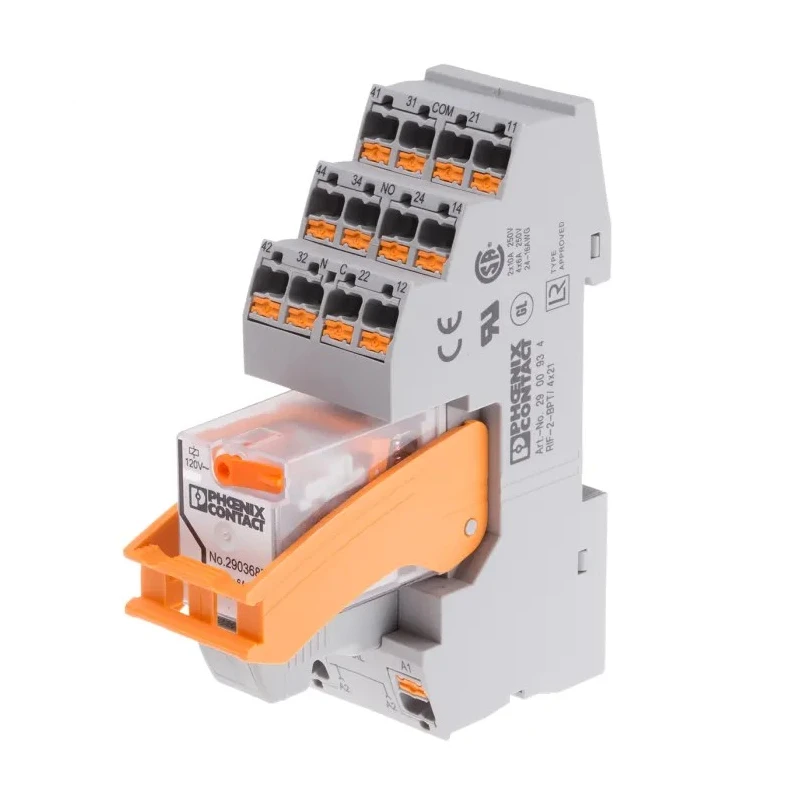

Phoenix Contact DIN Rail Power Relay 120V AC Coil 16A Switching Current 4PDT 2903305

Phoenix Contact 2903305 DIN Rail Power Relay with 120V AC Coil is engineered for industrial and automation applications requiring reliable switching capabilities. The 4PDT (four-pole double throw) contact configuration allows versatile circuit control with a switching current capacity of 16A, suitable for heavy loads and demanding electrical switching tasks.

The relay mounts securely onto DIN rails, facilitating quick installation and replacement in control cabinets, switchgear, and automation panels. Its coil voltage rating of 120V AC and coil power of 52W offer efficient operation with low power consumption. The coil resistance of 3.8kΩ further ensures stable coil performance and durability.

This power relay handles switching voltages up to 250V AC and 250V DC, making it suitable for controlling a wide variety of electrical devices. The operating temperature range from -40°C to 50°C allows it to perform reliably in harsh industrial environments and ensures longevity. The contacts are made from silver alloy, providing excellent conductivity and resistance to wear.

The device features advanced push-in connection technology for easy wiring, reducing installation time and minimizing wiring faults. A retaining bracket with ejector function secures the relay in place while allowing simple removal and maintenance. The bracket also includes a holder for marking material to simplify identification in complex control systems.

This non-latching relay is ideal for applications such as machine control, HVAC systems, industrial automation, and signal conditioning in manufacturing processes. Its construction adheres to DIN and IEC standards, ensuring consistent quality and safety in industrial settings.

This power relay is designed for DIN rail mounting, ensuring easy installation in industrial control panels. The coil voltage rating is 120V AC, with coil power consumption of 52W and a coil resistance of 3.8kΩ. It supports switching of AC and DC voltages up to 250V, with a switching current rated at 16A for robust electrical control.

Operating temperature range from -40°C to 50°C guarantees reliable performance in diverse industrial environments. The relay uses a silver alloy contact material for high conductivity and durability. Advanced push-in connection technology simplifies wiring and maintenance tasks.

Includes a relay retaining bracket with ejector function and holder for marking material. Supports both AC and DC versions, suitable for a wide range of industrial and automation applications. Compact dimensions: 75mm width, 31mm length, and 96mm height optimize panel space usage.

Certified to DIN and IEC standards ensuring compliance with industrial quality and safety requirements.

This Phoenix Contact DIN rail power relay provides a robust solution for diverse industrial automation, electrical control, HVAC systems, manufacturing, and laboratory equipment requiring precise switching capabilities.
