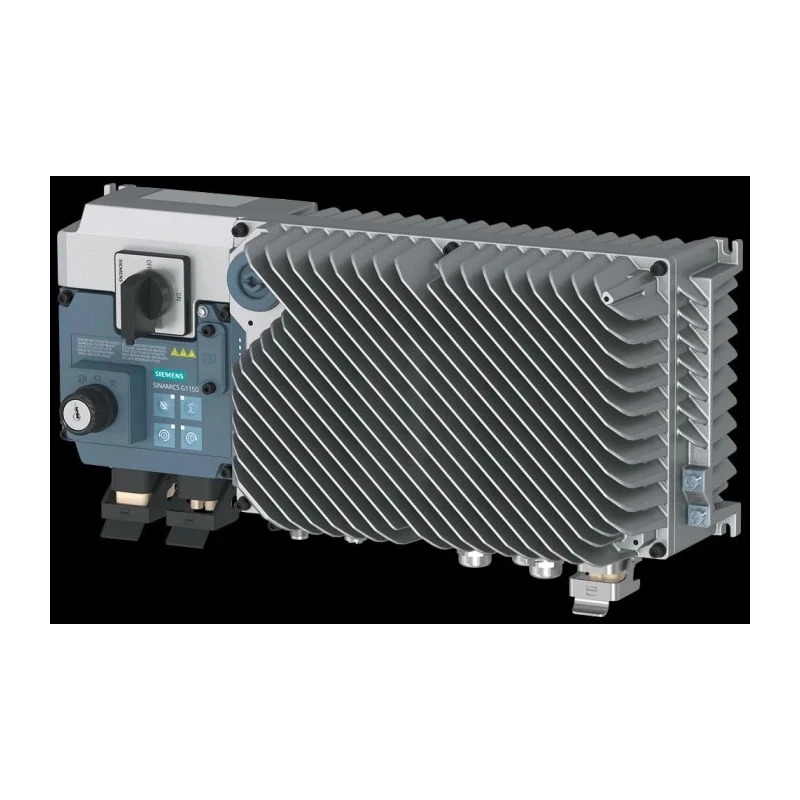

Siemens Inverter Drive 2.2 kW 1 and 3 Phase SINAMICS G115D Series 480V 11.8 A 6SL3520-1XE42-2AF0

Siemens 6SL3520-1XE42-2AF0 Inverter Drive from the SINAMICS G115D Series is a compact, wall-mounted variable speed drive designed for demanding industrial automation applications. Delivering a rated power of 2.2 kW, this drive operates seamlessly on single and three-phase power supplies, with a maximum output current of 11.8 A suitable for motors requiring high performance and reliability.

The drive supports connection to AC motors, including both asynchronous motors up to efficiency class IE3 and high-efficiency synchronous reluctance motors meeting efficiency class IE4. Its robust design includes IP65 and IP66 protection ratings, making it resistant to dust and water, suitable for harsh industrial environments.

Designed for installation flexibility, the overall dimensions of 180 mm length, 425 mm width, and 134 mm depth allow for efficient space utilization. The unit supports supply voltages from 380 V to 480 V and operating temperatures ranging from -30°C to 55°C ensuring versatile operation in a variety of industrial conditions.

Built to meet international quality and safety standards including CE, C-Tick (RCM), cUL, EAC, KCC, REACH, SEMI F47, and UL, this inverter drive ensures compliance and reliability. Siemens commitment to sustainability is evidenced by the Better World claim of energy savings through improved drive efficiency.

The SINAMICS G115D series represents a modular solution combining converter, motor, and gearbox for ready-to-connect applications. This wall-mounted inverter drive enables simplified installation and commissioning without the need for a control cabinet, minimizing space and cooling requirements. Reduced cable length between converter and motor reduces power loss and electromagnetic interference, enhancing overall system performance.

The drive supports motor efficiency up to IE4, enabling energy-efficient industrial operations. Wall mounting design facilitates easy installation and accessibility in industrial setups. IP65 and IP66 ratings protect against environmental influences, extending product life.

Compliance with multiple international approvals ensures broad applicability and safety. Compact size and modular platform reduce installation footprint and maintenance costs. Designed for worldwide use with compatible SIMOGEAR geared motors.

This inverter drive is suitable for a diverse range of industrial applications including manufacturing automation, HVAC systems, water treatment plants, and other process industries demanding reliable motor speed control with energy efficiency.
