Vishay 100 V 20 A Surface Mount Schottky Rectifier Diode TO-252 Package V20PWM10HM3/I

Free Delivery in India | Lowest Global Shipping Charges

Vishay 100 V 20 A Surface Mount Schottky Rectifier Diode TO-252 Package V20PWM10HM3/I

Name: Vishay 100 V 20 A Surface Mount Schottky Rectifier Diode TO-252 Package V20PWM10HM3/I
Brand: Vishay
SKU: 290764
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.4mm
Length	9.4mm
Model	V20PWM10HM3/I
Width	6.32mm
Mount Type	Surface
Series	V20PWM10
Maximum Operating Temperature	175°C
Package Type	TO-252
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS and AEC-Q101, JESD 201 Class 2 whisker test
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	0.9V

Key Features

Supports a maximum continuous forward current of 20 A.
Rated peak reverse repetitive voltage is 100 V.
Features a TO-252 package for surface mounting.
Peak non-repetitive forward surge current capability of 200 A.
Operational temperature range from -40°C up to 175°C.
Complies with RoHS and Automotive AEC-Q101 standards.
Excellent low forward voltage drop of 0.9 V enabling efficient power operation.
Single diode configuration optimized for polarity protection and freewheeling applications.

Product Description

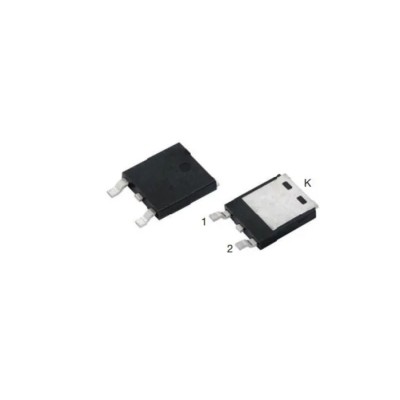

Vishay V20PWM10HM3/I is a high current density Schottky rectifier diode featuring trench MOS technology housed in a compact TO-252 surface mount package.

This device supports continuous forward currents of up to 20 A, making it suitable for demanding power applications such as low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection circuits.

Equipped with a peak reverse voltage rating of 100 V and a peak surge current of 200 A, it ensures robust performance under transient conditions. The diode offers a low forward voltage drop of 0.9 V and low power losses, contributing to high efficiency and thermal performance.

It operates reliably within a wide temperature range from -40°C to 175°C and meets stringent automotive standards AEC-Q101 and JESD 201 Class 2 whisker test, certifying its quality for automotive and industrial environments.

With compact dimensions of 9.4 mm length, 6.32 mm width, and a minimal profile height of 1.4 mm, it is ideal for automated pick-and-place assembly lines, complying with MSL level 1 and J-STD-020 standards.

Supports maximum continuous forward current of 20 A. Peak reverse repetitive voltage rating of 100 V. Single diode configuration for polarity protection. Schottky rectifier type ensures low forward voltage drop and high efficiency.

Robust surge current handling up to 200 A peak. Wide operating temperature from -40°C to 175°C. AEC-Q101 and RoHS compliant automotive standard device. Compact TO-252 package for surface mounting, suitable for automated assembly.

This Vishay Schottky diode is widely used in industrial, automotive, and electronic power management systems where efficient and reliable rectification is required. Explore the Vishay range and other semiconductor products on EnvMart for all your electronic component needs.
