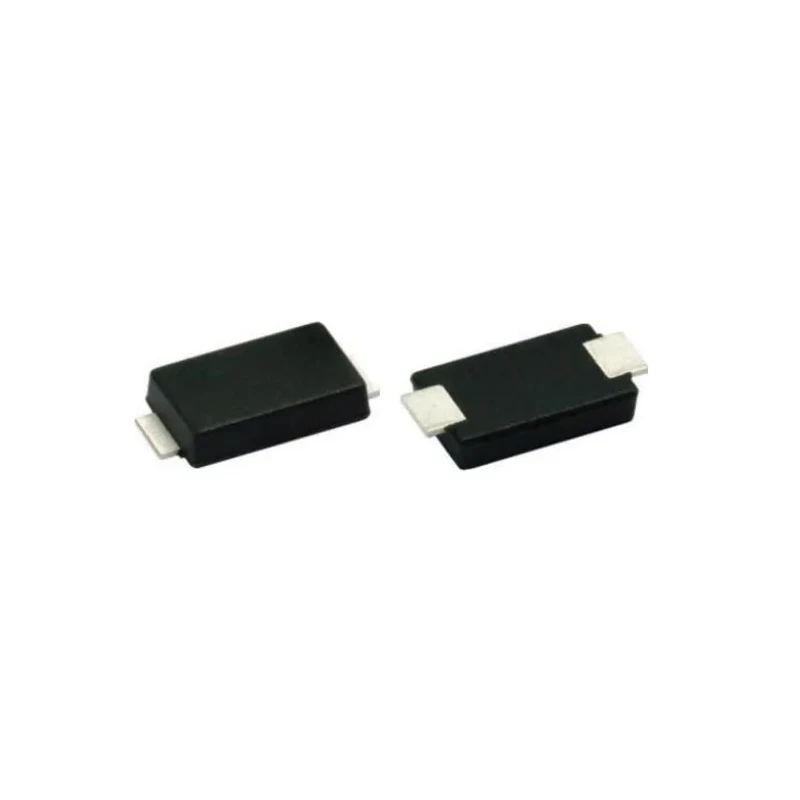

Vishay 100 V 3 A Surface Mount Rectifier & Schottky Diode Schottky DO-221AC VSSAF3M10HM3/H

Vishay VSSAF3M10HM3/H is a high-performance surface mount rectifier and Schottky Diode designed for industrial and automotive use. Rated for 100 V peak reverse voltage and 3 A continuous forward current, this diode excels in low voltage and high frequency applications.

Its trench MOS Schottky technology provides a low forward voltage drop, resulting in improved efficiency and reduced power losses. The compact DO-221AC package with a typical height of 0.95 mm supports automated placement on PCBs.

Engineered to meet rigorous standards including AEC-Q101 qualification, JESD 201 Class 2 whisker test compliance, UL 94 V-0 flame retardancy, and RoHS compliance, it ensures both reliability and safety in demanding environments.

This diode is suitable for applications such as freewheeling diodes, DC/DC converters, polarity protection, and low voltage inverter circuits in the commercial, industrial, and automotive sectors.

The diode supports a maximum continuous forward current of 3 A. Peak reverse repetitive voltage is rated at 100 V. Peak non-repetitive forward surge current reaches up to 80 A. Operating temperature ranges from -40°C to 175°C ensuring durability under harsh conditions.

Features trench MOS Schottky technology for low forward voltage drop and optimized efficiency. Compliant with AEC-Q101, JESD 201 Class 2 whisker test, UL 94 V-0 standards, and RoHS directives. Low profile design with height of approximately 0.95 mm ideal for automated placement.

Applications include low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive sectors. Explore Vishay products and related semiconductor components on EnvMart for reliable and efficient electronic component solutions.
