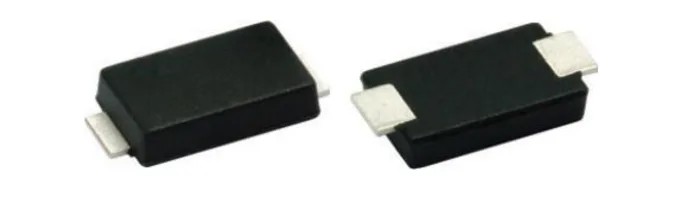

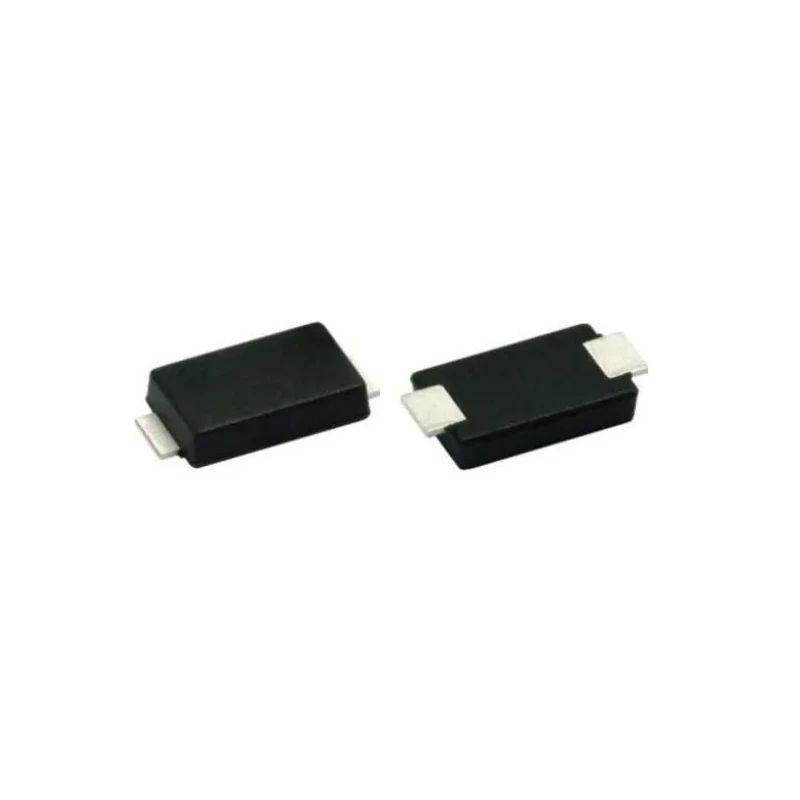

Vishay 100 V 3 A Rectifier & Schottky Diode Schottky DO-221AC VSSAF3M10HM3/H

Name: Vishay 100 V 3 A Rectifier & Schottky Diode Schottky DO-221AC VSSAF3M10HM3/H
Brand: Vishay
SKU: 290745
Price: 0.32 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1mm
Length	5.35mm
Model	VSSAF3M10HM3/H
Width	2.7mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	DO-221AC
Minimum Operating Temperature	-40°C
Standards/Approvals	AEC-Q101, JESD 201 Class 2 whisker test, UL 94 V-0, RoHS
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	80A
Maximum Forward Voltage Vf	0.72V

Key Features

Constructed with Trench MOS Schottky technology for low forward voltage drop.
High efficiency operation with low power losses ensures reliability.
Supports peak non-repetitive forward surge current of 80 A.
Qualified to AEC-Q101 and suitable for automotive applications.
Operates reliably from -40°C to 175°C for harsh environments.
Meets industry standards including JESD 201 Class 2 whisker test and UL 94 V-0 flammability rating.
Ideal for low voltage, high frequency inverters and DC/DC converters.

Product Description

The Vishay VSSAF3M10HM3/H is a surface-mount Schottky diode rectifier with a maximum continuous forward current of 3 A and a peak reverse voltage of 100 V. Packaged in a compact DO-221AC form factor with a very low profile height of 1 mm, it is engineered using Trench MOS Schottky technology to achieve low forward voltage drop and high efficiency operation. This device exhibits low power losses making it suitable for demanding electronic applications where efficiency and reliability are critical.

Its robust construction and qualification to AEC-Q101 standards make it well-suited for automotive, commercial, and industrial environments requiring high reliability. It operates across a wide temperature range from -40°C to 175°C, accommodating harsh conditions. The diode supports a peak non-repetitive forward surge current of 80 A, enhancing its ruggedness in transient conditions.

This Schottky diode is commonly used in low voltage, high frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection applications. Its surface-mount design and MSL Level 1 rating facilitate automated PCB assembly with excellent thermal performance and mechanical reliability.

Trench MOS Schottky technology ensures low forward voltage drop and high efficiency. AEC-Q101 qualification guarantees automotive-grade reliability. Wide operating temperature range from -40°C to 175°C. Compact DO-221AC surface-mount package with 5.35 mm length and 2.7 mm width.

Complies with industry standards including JESD 201 Class 2 whisker test and UL 94 V-0 flame rating. Designed for use in automotive, industrial, and commercial power conversion circuits. Supports 3 A continuous forward current and 100 V peak reverse voltage.

Peak reverse current of 200 µA minimizes leakage losses. Peak surge current of 80 A enhances transient tolerance.

This Vishay Schottky diode is an ideal choice for engineers designing efficient power systems with stringent reliability requirements. Environmentally compliant with RoHS, it meets global standards for electronic components.
