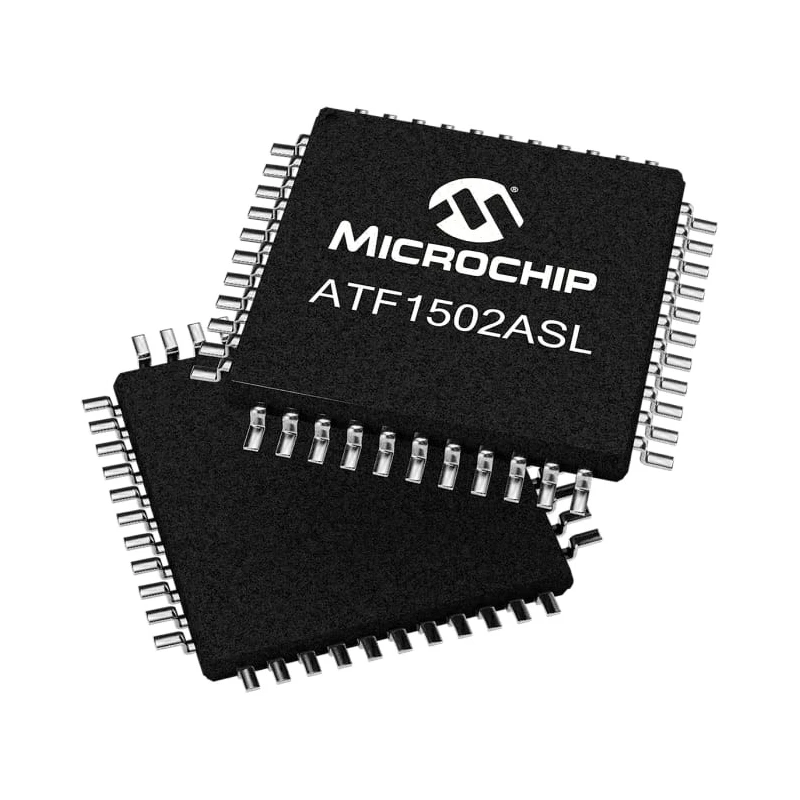

Microchip Complex Programmable Logic Device EEPROM 32 Cells 32 I/O 10 ns 2 Labs In System Programmability ATF1502AS-10JU44

Free Delivery in India | Lowest Global Shipping Charges

Microchip Complex Programmable Logic Device EEPROM 32 Cells 32 I/O 10 ns 2 Labs In System Programmability ATF1502AS-10JU44

Name: Microchip Complex Programmable Logic Device EEPROM 32 Cells 32 I/O 10 ns 2 Labs In System Programmability ATF1502AS-10JU44
Brand: Microchip
SKU: 290720
Price: 20.22 USD
Availability: InStock



Category Programmable Logic ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.06mm
Length	16.66mm
Model	ATF1502AS-10JU44
Mount Type	Surface
Memory type	EEPROM
Series	ATF15xx
Maximum Operating Temperature	85°C
Package Type	PLCC
Minimum Operating Temperature	-40°C
Pin Count	44
Maximum Supply Voltage	5.25V
Minimum Supply Voltage	4.75V
Maximum Propagation Delay Time	10ns
Maximum Operating Frequency	125MHz
Number of Macro Cells	32
Number of User I/Os	32
Number of Logic Blocks/Elements	2

Key Features

This CPLD supports EEPROM memory technology for reliable data retention.
It has a 44-pin PLCC surface-mount package suitable for compact circuit designs.
Device operates at a maximum frequency of 125 MHz with minimum supply voltage of 4.75 V and maximum voltage of 5.25 V.
Supports individual output enable control to manage device outputs independently.
Designed for industrial temperature range from -40°C to 85°C for robust performance.
Reprogramming capability allows flexible logic functions post-installation.
Compact dimensions of 16.66 mm length and 4.06 mm height for space-saving applications.
Maximum propagation delay of 10 ns ensures fast signal processing.

Product Description

Microchip ATF1502AS-10JU44 is a complex programmable logic device (CPLD) featuring EEPROM-based memory with 32 macro cells and 32 user input/output pins. With a rapid maximum propagation delay time of 10 ns and 2 logic blocks, this device supports in-system programmability, making it ideal for designs requiring flexible logic configurations.

The device is mounted in a 44-pin PLCC surface package measuring 16.66 mm in length and 4.06 mm in height, suitable for space-constrained electronic assemblies. Operating voltage ranges from 4.75 V to 5.25 V enable compatibility with standard 5 V logic systems. It supports individual output enable control for enhanced control of logic outputs.

This CPLD operates reliably across a wide industrial temperature range (-40°C to 85°C), ensuring performance stability in diverse environments. The maximum operating frequency of 125 MHz enables high-speed logic operation crucial for complex electronic circuits.

Re-programmability support means the device can be reconfigured post-deployment, facilitating updates or design changes without hardware replacement. Its EEPROM memory safeguards logic data retention, enhancing device reliability.

EEPROM memory technology for non-volatile logic storage. 32 macro cells and 32 user I/O pins for versatile logic design. Maximum propagation delay time of 10 ns for fast signal processing. Surface mount 44-pin PLCC package for compact assembly.

Wide operating temperature range from -40°C to 85°C. In system programmability enables flexible device updates. Maximum operating frequency of 125 MHz supports high-speed applications. Individual output enable control to manage different output states.

This product is suited for industrial, electronic manufacturing, telecommunications, and embedded system applications where reliable programmable logic devices with efficient footprint and reprogrammability are critical.
