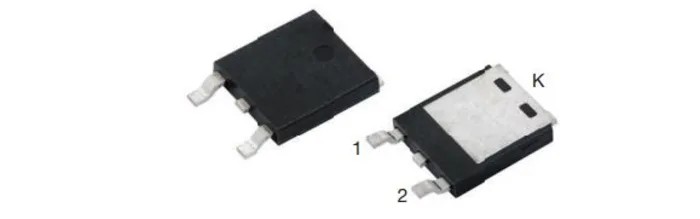

Vishay 150 V 35 A Surface Mount Schottky Rectifier Diode TO-252 Package V35PWM15HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13in |
| Brand | Vishay |
| Height | 1.3mm |
| Length | 6.1mm |
| Model | V35PWM15HM3/I |
| Width | 6.1mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Features trench MOS Schottky technology for low forward voltage drop.
- Supports a continuous forward current of 35 A.
- Maximum reverse repetitive voltage of 150 V ensures robust performance.
- Peak non-repetitive forward surge current of 260 A for transient handling.
- Three-pin DPAK package with compact dimensions of 6.1 mm length and width.
- Designed for automated PCB placement with a maximum profile height of 1.3 mm.
- Maximum forward voltage drop of 1.4 V minimizes power losses.
- Operates reliably between temperatures of -40°C to 175°C.
Product Description
Vishay V35PWM15HM3/I is a high-performance surface mount Schottky rectifier diode designed for demanding applications in power electronics, automotive, and industrial fields. Its trench MOS Schottky technology ensures low forward voltage drop and high efficiency, reducing power losses in switching and rectifier circuits.
With a maximum continuous forward current rating of 35 A and a peak reverse repetitive voltage of 150 V, this diode handles significant current and voltage stress, making it ideal for freewheeling diode roles, polarity protection, and low voltage high frequency DC/DC converters. The device is housed in a compact TO-252 (DPAK) package with a low profile of just 1.3 mm height, facilitating automated assembly and space-saving PCB designs.
The diode supports a peak non-repetitive forward surge current of 260 A, allowing it to withstand temporary overload conditions. It operates efficiently across a broad temperature range from -40°C up to a maximum of 175°C, providing robust thermal performance in harsh environments. Compliance with AEC-Q101 automotive standards further confirms its suitability for automotive applications requiring stringent quality and reliability.
Trench MOS Schottky technology enables efficient low voltage drop operation. Continuous forward current rating of 35 A supports high load applications. Peak reverse voltage of 150 V provides adequate safety margins. Low profile surface-mount package designed for automated PCB assembly.
Wide operating temperature range from -40°C to 175°C ensures application versatility. Peak non-repetitive surge current rating of 260 A enables transient tolerance. Three-pin configuration in compact TO-252 package simplifies design integration.
Meets RoHS compliance for environmental safety and automotive AEC-Q101 qualification.
This Vishay Schottky diode is ideal for industrial power supply circuits, automotive electronics, consumer devices, and telecommunications equipment where efficient rectification and high reliability are required.
Explore more electronic components and semiconductors in the Schottky Diodes & Rectifiers category on EnvMart for your project needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 35 A.
This diode has a peak reverse repetitive voltage of 150 V.
The maximum forward voltage drop for this diode is 1.4 V.
It is housed in a TO-252 (DPAK) package.
This diode operates reliably between temperatures of -40°C to 175°C.
The peak non-repetitive forward surge current rating is 260 A.
This model features a three-pin configuration.
Yes, it complies with AEC-Q101 automotive standards.
It supports surface mounting.
The trench MOS Schottky technology enables low forward voltage drop and high efficiency, which reduces power losses in switching and rectifier circuits.
The country of origin for this diode is India.
It is suitable for power electronics, automotive, industrial applications, freewheeling diode roles, and low voltage high frequency DC/DC converters.
