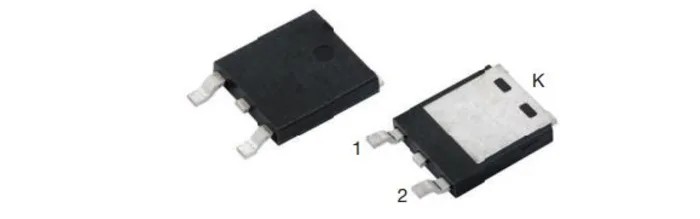

Vishay 100 V 35 A Rectifier and Schottky Diode Schottky DPAK Surface Mount TO-252 V35PWM10HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.4mm |
| Length | 9.4mm |
| Model | V35PWM10HM3/I |
| Width | 6.32mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, UL 94 V-0, AEC-Q101, JESD 201 Class 2 whisker test |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 800μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 0.9V |
Key Features
- Handles a maximum continuous forward current of 35 amperes.
- Supports a peak reverse repetitive voltage of 100 volts.
- Features Schottky trench MOS technology for low forward voltage drop.
- Operates within a temperature range of -40°C to 175°C.
- Includes a TO-252 (DPAK) package suitable for automated placement.
- Peak non-repetitive forward surge current rating of 260 amperes.
- Complies with automotive standard AEC-Q101 and RoHS directives.
Product Description
Vishay V35PWM10HM3/I Rectifier and Schottky Diode is a high current density semiconductor component designed for surface-mount applications, featuring a TO-252 (DPAK) package. It is ideal for low voltage, high frequency DC/DC converters, freewheeling diode roles, and polarity protection use cases in industrial and automotive electronics.
This diode operates with a maximum continuous forward current of 35 A and can handle peak reverse repetitive voltages up to 100 V. The use of trench MOS Schottky technology ensures a low forward voltage drop of 0.9 V, enabling high efficiency and reduced power losses.
The device withstands operating temperatures ranging from -40°C to 175°C, maintaining reliable performance under harsh environmental conditions. Its compact dimensions (9.4 mm length, 6.32 mm width, 1.4 mm height) facilitate low-profile circuit board designs and automated assembly processes.
Vishay's V35PWM10HM3/I is certified to meet stringent industry standards including RoHS compliance, UL 94 V-0 flammability rating, and the automotive AEC-Q101 qualification, making it suitable for automotive and industrial applications.
Maximum continuous forward current: 35 A. Peak reverse repetitive voltage: 100 V. Low forward voltage drop (0.9 V) with Schottky trench MOS technology. Wide operating temperature range: -40°C to 175°C. Small, low-profile TO-252 (DPAK) package.
High surge current capability of 260 A peak. Automotive AEC-Q101 compliant and RoHS certified. Compact dimensions for efficient PCB integration.
This component is widely used in industrial, automotive, power supply, and electronic manufacturing applications where ruggedness and high efficiency are essential. It supports automated placement processes for high-volume production efficiency.
Explore more high-quality semiconductor components and Schottky Diodes in the EnvMart catalog to support your design and manufacturing needs with trusted brands like Vishay.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 35 amperes.
It supports a peak reverse repetitive voltage of 100 volts.
The diode has a low forward voltage drop of 0.9 volts.
It operates within a temperature range of -40°C to 175°C.
This model comes in a TO-252 (DPAK) package suitable for surface mounting.
The peak non-repetitive forward surge current rating is 260 amperes.
Yes, it complies with automotive standard AEC-Q101 and RoHS directives, and has a UL 94 V-0 flammability rating.
The dimensions are 9.4 mm in length, 6.32 mm in width, and 1.4 mm in height.
It is suitable for low voltage, high frequency DC/DC converters, freewheeling diode roles, and polarity protection in industrial and automotive electronics.
The peak reverse current is rated at 800 microamperes (μA).
This diode uses a single diode configuration.
It belongs to the eSMP series of diodes.
