Vishay 150 V 35 A Rectifier & Schottky Diode, Schottky 3-Pin DPAK V35PW15HM3/I

Free Delivery in India | Lowest Global Shipping Charges

Vishay 150 V 35 A Rectifier & Schottky Diode, Schottky 3-Pin DPAK V35PW15HM3/I

Name: Vishay 150 V 35 A Rectifier & Schottky Diode, Schottky 3-Pin DPAK V35PW15HM3/I
Brand: Vishay
SKU: 290707
Price: 1.19 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	13in
Brand	Vishay
Height	1.3mm
Length	6.1mm
Model	V35PW15HM3/I
Width	5.97mm
Mount Type	Surface
Series	eSMP
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-40°C
Standards/Approvals	UL 94 V-0, RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	35A
Peak Reverse Repetitive Voltage Vrrm	150V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	25mA
Peak Non-Repetitive Forward Surge Current Ifsm	260A
Maximum Forward Voltage Vf	1.4V

Key Features

Utilizes Trench MOS Schottky technology for low forward voltage drop.
Supports a peak non-repetitive forward surge current of 260 A.
Operates efficiently up to a maximum temperature of 150°C.
Complies with UL 94 V-0 fire retardant and RoHS standards.
AEC-Q101 automotive qualified for high reliability in demanding applications.
Designed for surface mount with a low profile height of 1.3 mm.
Ideal for low voltage, high frequency DC/DC converters and polarity protection circuits.
Features a pin count of 3 in the TO-252 package type.

Product Description

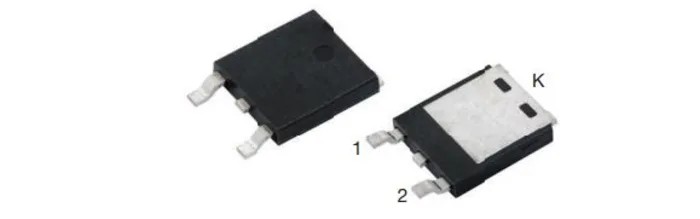

Vishay V35PW15HM3/I Rectifier & Schottky Diode is a high current density surface-mount device designed with advanced Trench MOS Schottky technology, providing a low forward voltage drop and high efficiency. It comes in a compact TO-252 (DPAK) 3-pin package with a height of only 1.3 mm, making it ideal for automated PCB placement and densely populated electronic assemblies.

This diode supports a maximum continuous forward current of 35 A and a peak non-repetitive forward surge current of 260 A, suitable for demanding power applications. Its maximum forward voltage is rated at 1.4 V, ensuring minimal power losses and efficient operation at high frequencies.

The device reliably operates within a temperature range from -40°C to 150°C, meeting automotive industry standards with AEC-Q101 qualification for robust use in automotive electronics. Additionally, it meets UL 94 V-0 safety requirements and RoHS compliance, ensuring environmental and safety compliance.

Its typical usage scenarios include low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection applications, commonly found in industrial, automotive, manufacturing, and commercial electronic systems.

Trench MOS Schottky technology enables low forward voltage and high efficiency. High surge current capacity up to 260 A peak. Compact surface mount TO-252 package with low profile height. Wide operating temperature range from -40°C to 150°C.

AEC-Q101 qualification for automotive safety and reliability. Complies with UL 94 V-0 fire safety and RoHS environmental standards. Suitable for automated PCB assembly due to low profile and MSL level 1 compliant. Ideal for industrial, automotive, and commercial power applications.

This Vishay Schottky diode combines rugged performance with advanced technology to meet the high standards required in modern electronic and power management systems. Available in a small footprint with three pins, it facilitates efficient power rectification and protection in compact electronic designs.
