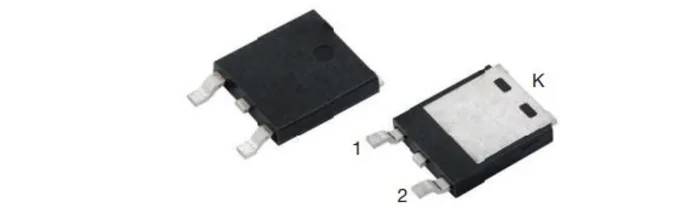

Vishay 100 V 20 A Surface Mount Schottky Rectifier Diode TO-252 Package V20PWM10HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.4mm |
| Length | 9.4mm |
| Model | V20PWM10HM3/I |
| Width | 6.32mm |
| Mount Type | Surface |
| Series | V20PWM10 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS and AEC-Q101, JESD 201 Class 2 whisker test |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.9V |
Key Features
- Surface mount design suitable for automated PCB placement.
- Trench MOS Schottky technology ensures low forward voltage drop.
- Maximum forward voltage of 0.9 V for high efficiency operation.
- Operates within a temperature range from -40°C to 175°C.
- Peak reverse current of 200 μA and peak surge current of 200 A.
- Compliant with RoHS, AEC-Q101 automotive standards, and JESD 201 whisker testing.
- Ideal for low voltage, high frequency DC/DC converters, freewheeling diodes, and polarity protection applications.
Product Description
Vishay V20PWM10HM3/I is a high current density Schottky rectifier diode designed for surface mount applications with a compact TO-252 package. This diode supports a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 100 V, making it suitable for demanding power semiconductor applications.
Featuring trench MOS Schottky technology, it offers a low forward voltage drop of 0.9 V, ensuring efficient operation with minimal power losses. The device meets automotive-grade standards including AEC-Q101 qualification and RoHS compliance, also passing JESD 201 Class 2 whisker testing for reliability.
Its operational temperature range spans from -40°C to 175°C, allowing use in harsh industrial and automotive environments. The diode handles peak non-repetitive forward surge currents up to 200 A, providing robust tolerance for transient conditions.
Surface mount package type: TO-252. Compact dimensions: 9.4 mm length, 6.32 mm width, 1.4 mm height, suitable for space-constrained designs. Trench MOS Schottky diode configuration with single diode structure. Applications include DC/DC converters, freewheeling diodes, polarity protection circuits, and automotive electronics.
Compliance with industry standards ensures reliable performance. Low forward voltage ensures energy efficient power conversion. Automotive standard AEC-Q101 suitable for in-vehicle systems. RoHS compliant and environmentally friendly.
This diode is a reliable component choice for engineers designing power management circuits in industrial, automotive, electronic manufacturing, and consumer electronics sectors. Explore more Schottky diodes and rectifiers on EnvMart to find optimal solutions for your electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay V20PWM10HM3/I is 20 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop is 0.9 V, which ensures efficient operation.
It operates within a temperature range from -40°C to 175°C.
The diode can handle a peak non-repetitive forward surge current of up to 200 A.
The dimensions of the TO-252 package are 9.4 mm in length, 6.32 mm in width, and 1.4 mm in height.
It is compliant with RoHS, AEC-Q101 automotive standards, and has passed JESD 201 Class 2 whisker testing.
The diode configuration is a single diode structure.
This diode is suitable for low voltage, high frequency DC/DC converters, freewheeling diodes, and polarity protection applications.
The peak reverse current for this diode is rated at 200 μA.
This model supports surface mount design, making it suitable for automated PCB placement.
The country of origin for the Vishay V20PWM10HM3/I is India.
