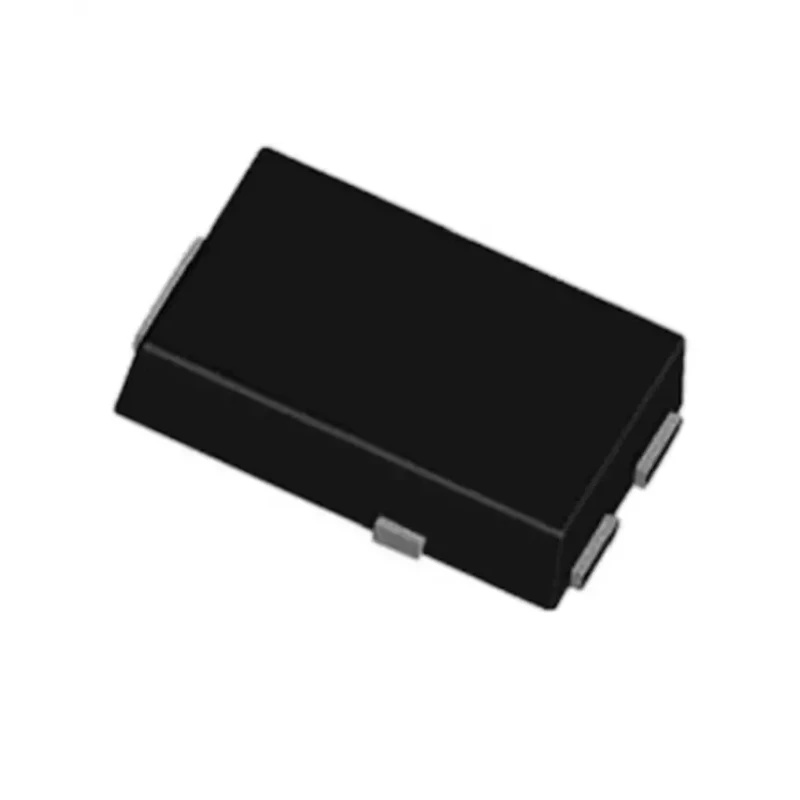

Vishay 45 V 8 A Schottky Diode Single Configuration Surface Mount TO-277 Package V8PM45HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.65mm |
| Model | V8PM45HM3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 8mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- The diode features a maximum continuous forward current of 8 A.
- It supports a peak reverse repetitive voltage of 45 V.
- Constructed with a to-277 package and surface mount type for reliable integration.
- Offers a peak non-repetitive forward surge current of 140 A enabling tolerance to surge events.
- Operates efficiently with a low forward voltage of 0.6 V ensuring minimal power loss.
- Designed with 3 pins and single diode configuration for straightforward circuit implementation.
- Complies with RoHS standards and automotive-grade AEC-Q101 certification.
- Operates effectively between -40°C and 175°C for demanding industrial environments.
Product Description
Vishay V8PM45HM3/H Schottky Diode is a high-performance discrete semiconductor designed for industrial, automotive, and commercial electronics applications. It features a low forward voltage drop of 0.6 V and offers fast switching speeds, making it suitable for use in high-frequency inverters, DC/DC converters, freewheeling circuits, and polarity protection.
This diode's surface mount construction with the TO-277 package type ensures reliable mechanical and electrical performance in tight electronic assemblies. The single diode configuration with three pins simplifies integration into complex circuits.
The device supports a maximum continuous forward current of 8 A and a peak reverse repetitive voltage of 45 V, allowing robust operation under demanding electrical conditions. It can withstand a peak non-repetitive forward surge current of 140 A, ensuring resilience during transient surge events.
Operating in temperature ranges from -40°C to 175°C, the diode is certified to automotive standard AEC-Q101 and complies fully with RoHS environmental directives. The compact physical dimensions facilitate use in modern compact electronic devices.
The diode features a maximum continuous forward current of 8 A. It supports a peak reverse repetitive voltage of 45 V. Constructed with a to-277 package and surface mount type for reliable integration. Offers a peak non-repetitive forward surge current of 140 A enabling tolerance to surge events.
Operates efficiently with a low forward voltage of 0.6 V ensuring minimal power loss. Designed with 3 pins and single diode configuration for straightforward circuit implementation. Complies with RoHS standards and automotive-grade AEC-Q101 certification.
Operates effectively between -40°C and 175°C for demanding industrial environments. Compact dimensions: 6.65 mm length, 4.75 mm width, and 1.2 mm height. Country of origin is China.
This Vishay Schottky diode is ideal for industrial manufacturing, automotive electronics, HVAC systems, power supply designs, and laboratory equipment requiring efficient rectification and high-current capabilities.
Discover more electronic components and Vishay solutions in the Semiconductor category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 8 A.
This model supports a peak reverse repetitive voltage of 45 V.
It is constructed in a TO-277 package type for surface mount applications.
The diode operates with a low forward voltage of 0.6 V, ensuring minimal power loss.
It offers a peak non-repetitive forward surge current of 140 A, providing tolerance to surge events.
This unit operates effectively between -40°C and 175°C, suitable for demanding environments.
The diode is designed with 3 pins in a single diode configuration for straightforward circuit integration.
It complies with the automotive-grade AEC-Q101 certification.
The dimensions are 6.65 mm in length, 4.75 mm in width, and 1.2 mm in height.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is suitable for industrial, automotive, and commercial electronics applications, including high-frequency inverters and DC/DC converters.
The peak reverse current is rated at 8 mA.
