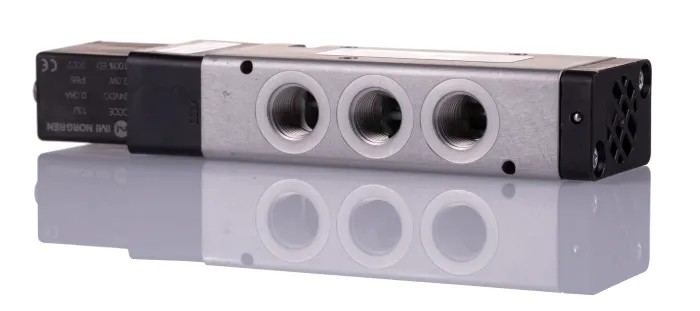

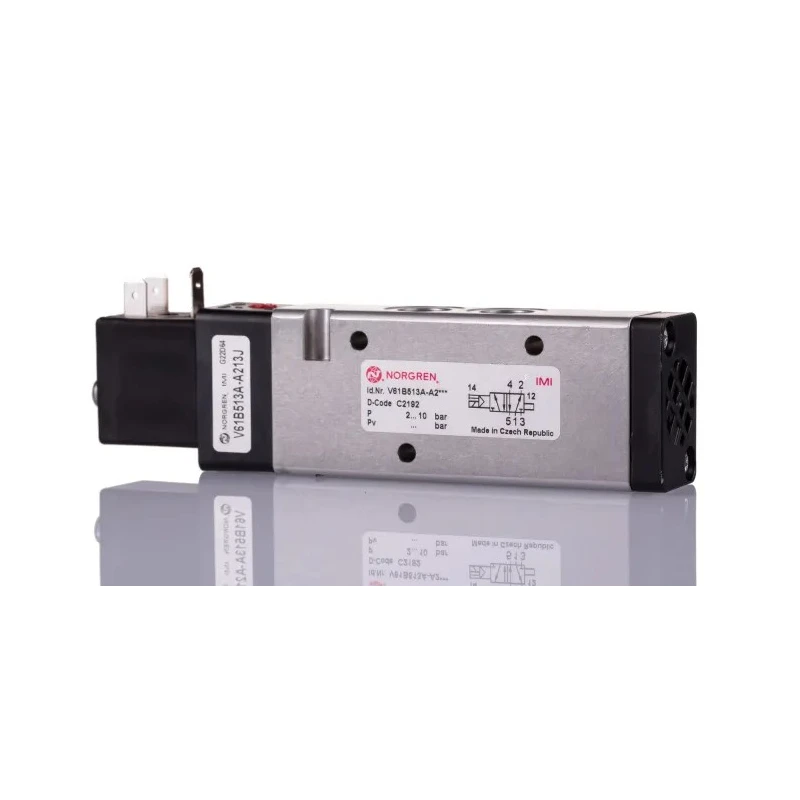

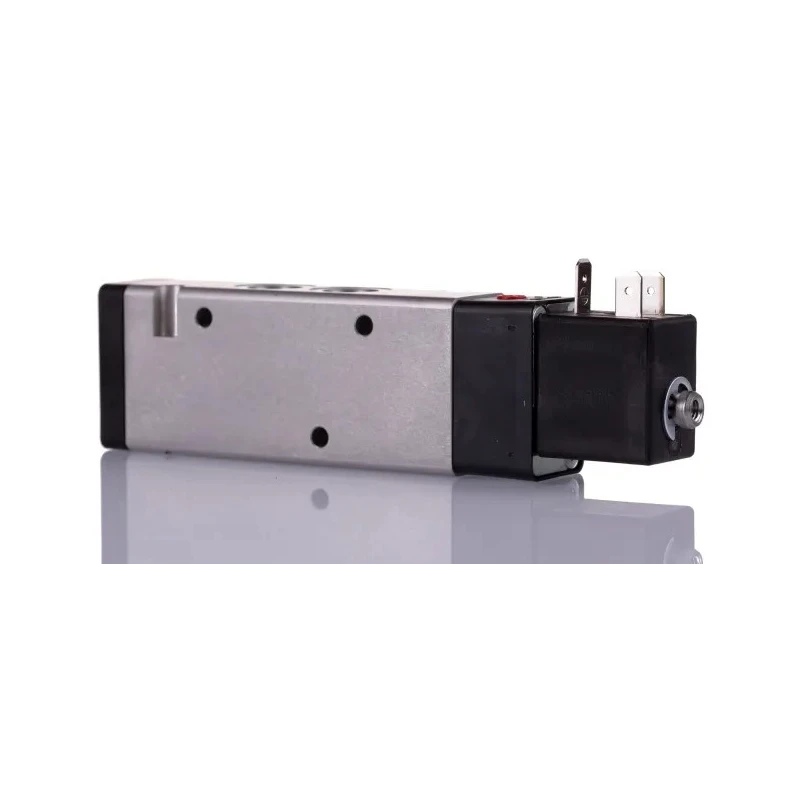

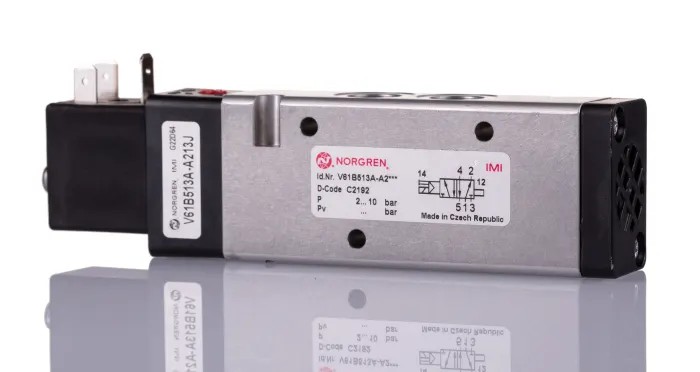

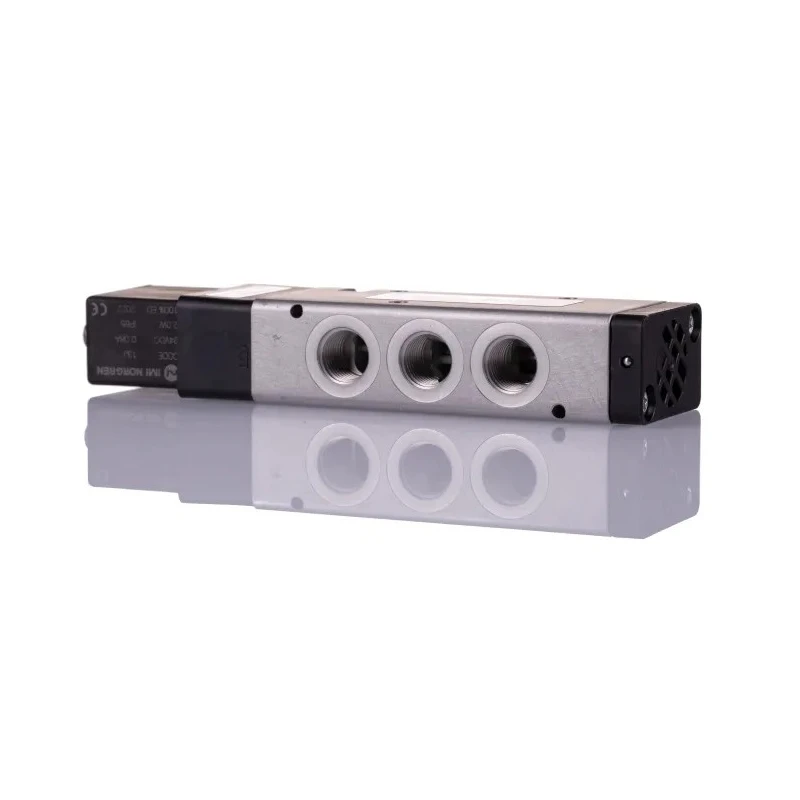

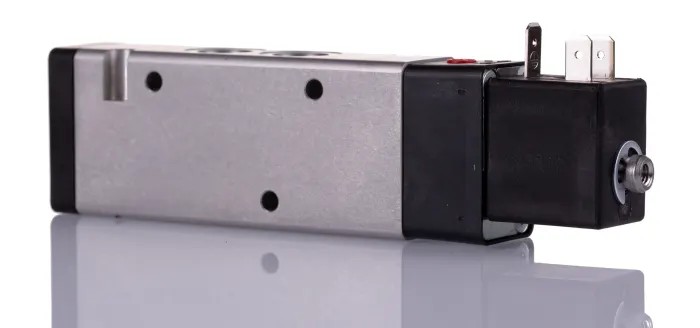

Norgren Pneumatic Solenoid Valve 5/2 Function Die Cast Aluminium Body 24V 2W Power V61B513A-A213J
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 24V |
| Brand | Norgren |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 10 bar |
| Model | V61B513A-A213J |
| Mount Type | In Line Mount |
| Series | V61 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Port Size | 1/8 to 1/2 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid/Air |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 1bar |
| Electrical Connection Type | Industrial Standard |
| Solenoid Power Consumption | 2W |
Key Features
- Designed for industrial use with a maximum operating pressure of 10 bar.
- Features a 5-port, 2-position configuration for precise pneumatic control.
- Powered by a 24V solenoid coil consuming 2 watts for efficient energy use.
- Constructed with corrosion-resistant die cast aluminium for extended durability.
- Operates reliably within temperatures ranging from -10°C to 50°C.
- Seal material is nitrile rubber (NBR) ensuring tight sealing performance.
- Compatible with filtered, lubricated or non-lubricated compressed air mediums.
- Includes multiple manual override options for emergency control.
Product Description
Norgren V61B513A-A213J Pneumatic Solenoid Valve is a high-quality 5/2 function valve designed for efficient pneumatic control in industrial environments. It operates at 24 volts with a power consumption of 2 watts, offering reliable performance and energy efficiency. The valve body is made from corrosion-resistant die cast aluminium, ensuring a long service life even in demanding situations.
This valve supports a maximum operating pressure of 10 bar and features a seal made from nitrile rubber (NBR) which provides excellent sealing properties. It is designed for use within a temperature range of -10°C to 50°C, making it adaptable to various industrial climate conditions.
The V61B513A-A213J valve has 5 ports and is mounted inline for straightforward installation. Its actuation type is solenoid/air, and it delivers precise switching capabilities suitable for power and control systems, factory automation, and larger industrial valves.
It is compatible with filtered, lubricated or non-lubricated compressed air mediums, which adds versatility for different pneumatic system requirements. The valve includes multiple manual override options allowing emergency actuation if needed. An IP65 rating provides protection against dust ingress and low-pressure water jets, making it safe for use in contaminated environments.
Designed for industrial use with a maximum operating pressure of 10 bar. Features a 5-port, 2-position configuration for precise pneumatic control. Powered by a 24V solenoid coil consuming 2 watts for efficient energy use.
Constructed with corrosion-resistant die cast aluminium for extended durability. Operates reliably within temperatures ranging from -10°C to 50°C. Seal material is nitrile rubber (NBR) ensuring tight sealing performance.
Compatible with filtered, lubricated or non-lubricated compressed air mediums. Includes multiple manual override options for emergency control. Electrical connection conforms to industrial standards with IP65 protection rating.
Suitable for factory automation and power control systems.
This Norgren Pneumatic Solenoid Valve is ideal for large industrial valve applications, factory automation, and power and control systems where precise airflow control and reliability are paramount. Explore the full range of pneumatic valves available at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It operates at 24 volts and has a power consumption of 2 watts.
The valve body is made from corrosion-resistant die cast aluminium, and the seal material is nitrile rubber (NBR).
It operates reliably within a temperature range of -10°C to 50°C.
This valve features a 5-port, 2-position configuration for precise pneumatic control.
It is compatible with filtered, lubricated, or non-lubricated compressed air mediums.
This model is designed for inline mounting.
The minimum pilot pressure required is 1 bar.
It complies with RoHS standards.
The connection thread standard is G.
Yes, it includes multiple manual override options for emergency control.
The actuation type of this valve is solenoid/air.
