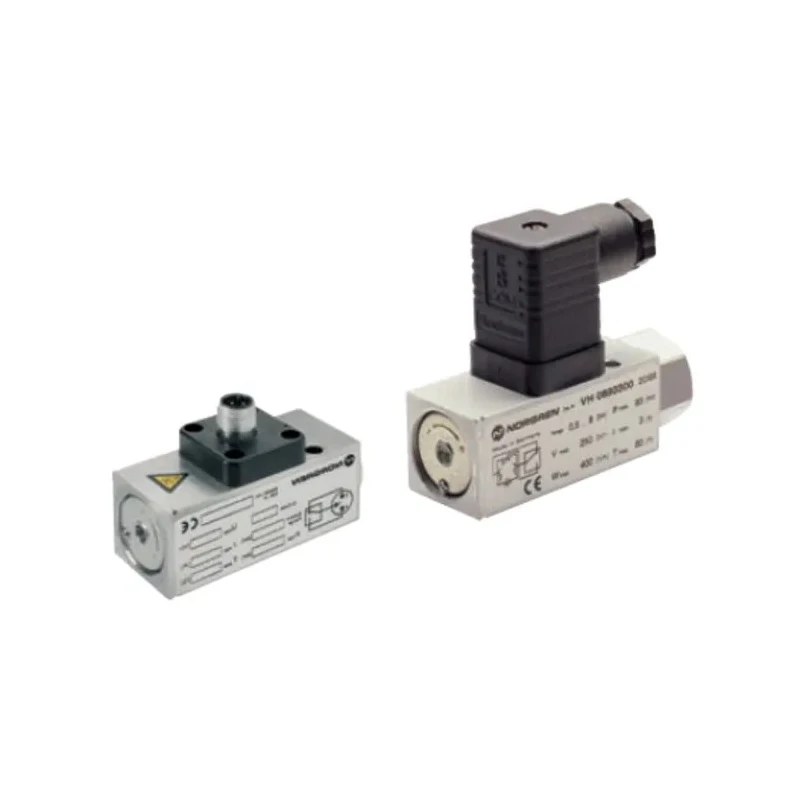

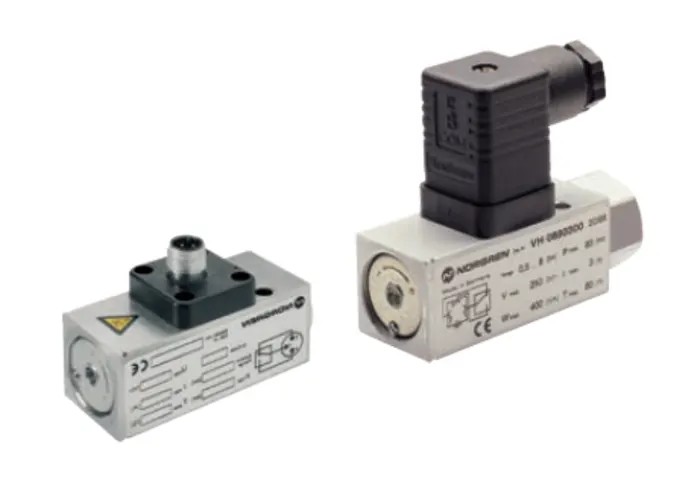

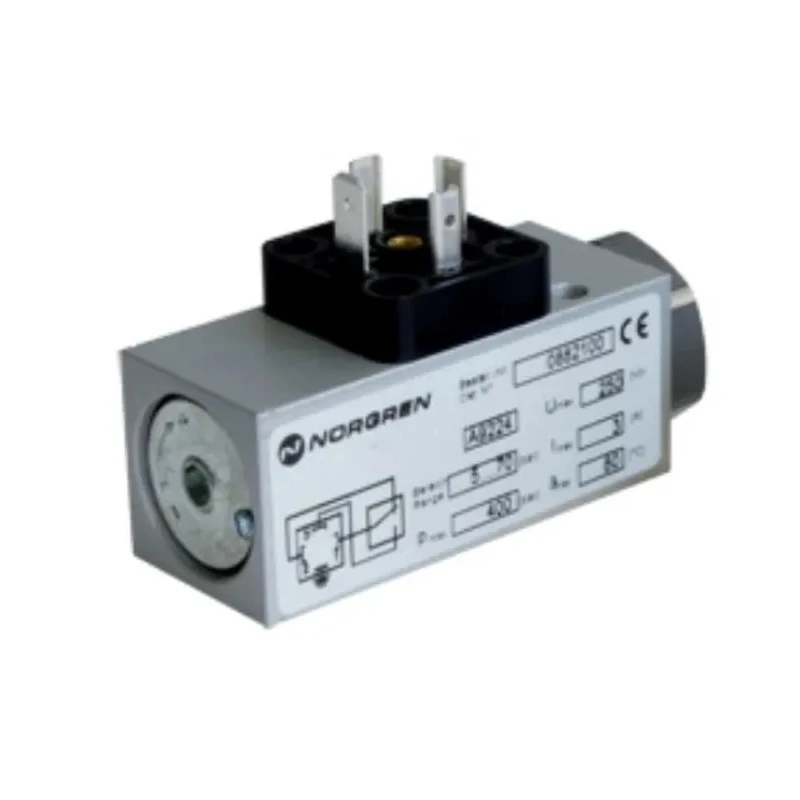

Norgren Pneumatic Pressure Switch G1/4 Thread, Accuracy ±3% Vacuum ±4% Final Value, Max Pressure 160bar 0882200000000000
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Accuracy | ±3% For vacuum, ±4% Of final value |
| Brand | Norgren |
| Height | 72mm |
| Depth | 30mm |
| Width | 30mm |
| Mount Type | Optional |
| Series | 18D |
| Maximum Operating Temperature | 80°C |
| Pressure Type | Pneumatic |
| Switch output | Micro switch with Gold Plated Contact |
| Standards/Approvals | UL and CSA |
| Electrical Connection Type | DIN En 175301 803 (DIN 43650) Form A or M12 x 1 |
| Connection Thread Size | G 1/4 |
| Minimum Set Pressure | 10bar |
| Maximum Set Pressure | 160bar |
Key Features
- Equipped with a micro switch featuring gold plated contacts for dependable electrical connection.
- Designed for pneumatic pressure applications with an optional mount type for flexible installation.
- Electrical connections include DIN En 175301 803 Form A or M12 x 1 for versatile integration.
- Thread size is G 1/4, compatible with standard pneumatic fittings.
- Operates within a temperature range up to 80°C to withstand harsh environments.
- Compact dimensions with height 72mm, width 30mm, and depth 30mm allow for easy installation.
- Rated for mechanical durability up to 10 million cycles, ensuring long service life.
- Designed with PFTE/NBR O-ring seals for resistance against oil and petroleum-based fluids.
Product Description
Norgren 0882200000000000 pneumatic pressure switch is a precision diaphragm-operated device designed for reliable pressure control in pneumatic systems. It provides an accuracy of ±3% for vacuum and ±4% of the final value, capable of handling pressures from 10 bar minimum set pressure up to 160 bar maximum set pressure.
The switch features a micro switch with gold plated contacts ensuring excellent electrical conductivity and durability. Its electrical connection options include DIN En 175301 803 (DIN 43650) Form A or M12 x 1 connectors, facilitating seamless integration into existing systems.
Compact in size - measuring 72mm in height, and 30mm in width and depth - it is designed for installations where space and flexibility are important. The device handles operating temperatures up to 80°C and includes a robust PFTE/NBR O-ring seal, providing excellent resistance to oil, petroleum-based liquids, and other harsh media.
Mechanical durability is rated at 10 million cycles, ensuring long-term reliability. Its mounting position is optional, allowing versatile installation options. The pressure switch is vibration-resistant up to 15g, making it suitable for challenging industrial environments with significant vibration or movement.
Micro switch with gold plated contacts ensures reliable electrical connection. Optional mounting position provides installation flexibility. Vibration resistance up to 15g enables use in demanding environments. Thread size G 1/4 matches common pneumatic fittings.
Maximum operating temperature of 80°C. PFTE/NBR O-ring seal protects against oils and petroleum-based fluids. Mechanical durability rated to 10 million cycles. Pressure range from 10 bar minimum set pressure to 160 bar maximum set pressure.
Electrical connection via DIN En 175301 803 Form A or M12 x 1 connectors. Commonly used in HVAC systems, well pumps, and furnaces.
This Norgren Pressure Switch is manufactured in the Czech Republic and adheres to UL and CSA standards. It is ideal for industrial pneumatic applications requiring dependable pressure monitoring and control. Explore a wide range of pneumatic switch and sensor solutions in EnvMart's Hydraulic & Pneumatic Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum set pressure of this pneumatic pressure switch is 160 bar.
It has an accuracy of ±3% for vacuum and ±4% of the final value.
The dimensions are 72mm in height, 30mm in width, and 30mm in depth.
It supports electrical connections via DIN En 175301 803 Form A or M12 x 1 connectors.
The minimum set pressure is 10 bar.
It operates within a temperature range up to 80°C.
It is rated for mechanical durability up to 10 million cycles.
The connection thread size is G 1/4, which is compatible with standard pneumatic fittings.
It features PFTE/NBR O-ring seals for resistance against oil and petroleum-based fluids.
Yes, it is vibration-resistant up to 15g, making it suitable for demanding industrial environments.
This pressure switch is manufactured in the Czech Republic.
It adheres to UL and CSA standards.
