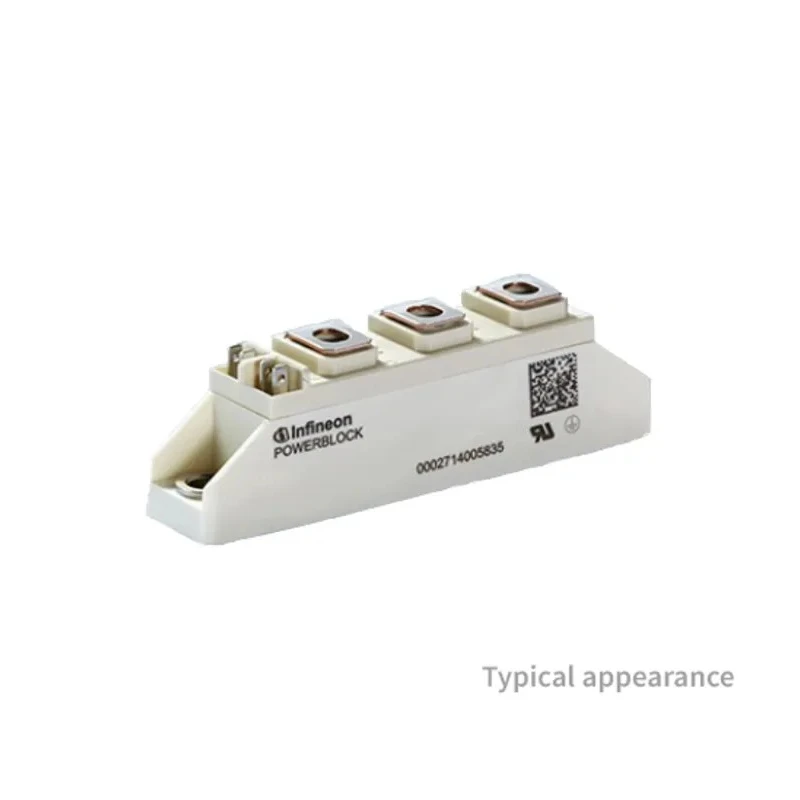

Infineon Thyristor Module 1600 V, 1.5 kA Surge Current, 90 A Rated Average On-State Current TT60N16SOFHPSA1

Infineon TT60N16SOFHPSA1 is a high-performance Thyristor Module engineered for industrial power control applications requiring reliable phase control. Rated for a repetitive peak reverse voltage of 1600 volts and a surge current of 1.5 kiloamperes, this module supports continuous average on-state currents of 90 amperes. It features a 7-pin configuration designed for efficient integration and solder bond technology for high reliability.

The module delivers a peak on-state voltage of only 1.75 volts, which ensures minimal conduction losses and improved efficiency in power circuits. The maximum gate trigger current is 100 milliamperes, allowing precise and stable triggering under demanding conditions. Its maximum holding current is rated at 250 milliamperes, ensuring continued conduction once triggered.

Operating temperature capability up to 130°C makes the TT60N16SOFHPSA1 suited for harsh industrial environments. The device is mounted on an electrically insulated copper base plate to ensure optimized thermal dissipation and enhanced durability over long-term use.

This thyristor module is ideal for use in industrial automation, power management systems, and other high-current electronic control applications requiring robust and dependable solid-state switching components. Its design adheres to industrial standards for phase control modules, providing excellent performance in demanding environments.

High surge current rating of 1.5 kiloamperes for robust performance. Rated average on-state current of 90 amperes for continuous operation. 7-pin design facilitates straightforward integration into power control circuits.

Peak on-state voltage of 1.75 volts minimizes power loss during conduction. Maximum gate trigger current of 100 milliamperes ensures precise triggering. Maximum holding current rated at 250 milliamperes for stable operation.

Operates reliably up to 130 degrees Celsius for high temperature environments. Electrically insulated copper base plate enhances thermal management. Compliant with industrial phase control requirements using solder bond technology.

Repetitive peak off-state current limited to 20 milliamperes to optimize off-state leakage. Explore a wide range of Thyristor Modules and power control components at EnvMart for your industrial and electronic design needs.
