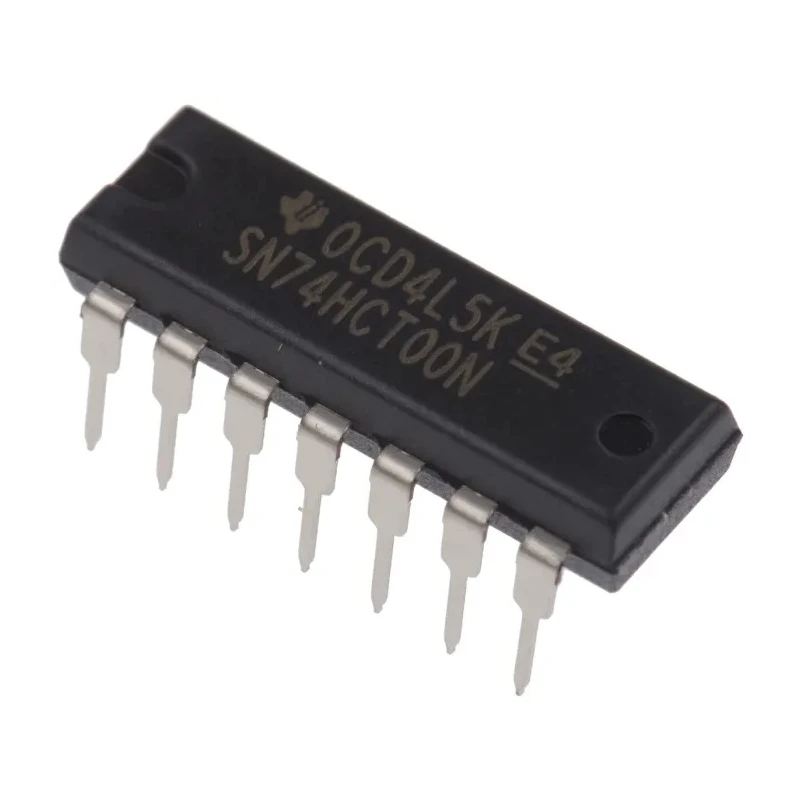

Texas Instruments 4 2-Input NAND Logic Gate, 14-Pin PDIP, SN74HCT00N
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74HCT00N |
| Mount Type | Through Hole |
| Compatibility | Input TTL, Output CMOS |
| Output type | Push Pull |
| Series | SN74 |
| Input Type | TTL |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | NAND |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 22ns |
| Maximum Low Level Output Current | 4mA |
| Number of Inputs per Gate | 2 |
Key Features
- The device operates at voltage range 4.5 to 5.5 V with TTL-compatible inputs.
- Maximum propagation delay is 22 ns, supporting high-speed CMOS logic.
- Each NAND gate contains 2 inputs with push-pull output type for efficient switching.
- It withstands operating temperatures from -40°C to 85°C, suitable for industrial applications.
- Package is a 14-pin PDIP with dimensions 19.3 mm length and 4.57 mm height for standard PCB mounting.
- Maximum output currents are +4 mA (low level) and -4 mA (high level) ensuring reliable driving capability.
- The logic family is HCT providing TTL input compatibility and CMOS output characteristics.
- Manufactured in Mexico, this product conforms to 74HCT family standards without additional certifications.
Product Description
Texas Instruments SN74HCT00N is a specialized 4 2-input NAND logic gate integrated circuit housed in a 14-pin PDIP package. This device belongs to the 74HCT family, known for combining high-speed CMOS technology with TTL compatibility, ensuring low power consumption and reliable performance for digital logic designs.
Operating voltage ranges from 4.5 to 5.5 V, the SN74HCT00N gates provide an efficient switching solution ideal for through-hole PCB mounting applications. Its maximum propagation delay is 22 nanoseconds, allowing usage in high-speed circuits with precise timing requirements.
This logic IC consists of four NAND gates, each with two inputs and push-pull outputs capable of delivering ±4 mA output current levels. Its thermal tolerance spans from -40°C (minimum operating temperature) to 85°C (maximum operating temperature), making it suitable for various industrial, embedded systems, and electronic design automation.
The package dimensions are compact with a 19.3 mm length and 4.57 mm height, facilitating standard printed circuit board integrations. The device does not incorporate Schmitt trigger inputs, focusing on clean logic signal processing based on TTL input standards and CMOS output compatibility.
Manufactured in Mexico, the SN74HCT00N does not carry specific compliance certifications but adheres to the specifications typical of the 74HCT logic family. It is widely used in industrial automation, electronic component assemblies, prototyping, logic function implementations, and embedded digital system designs.
The device operates within 4.5 to 5.5 V supply voltage range ensuring TTL input compatibility and CMOS power efficiency. Four 2-input NAND gates provide basic logical NAND function for various digital applications. Push-pull output type supports efficient driving of downstream IC inputs.
Operating temperatures from -40°C to 85°C enable deployment in demanding environments. Package is a standard 14-pin PDIP, facilitating easy through-hole mounting on PCBs. Explore more semiconductor and Logic ICs in the Electronics & Electricals category at EnvMart to fulfill diverse industrial and laboratory automation needs.
