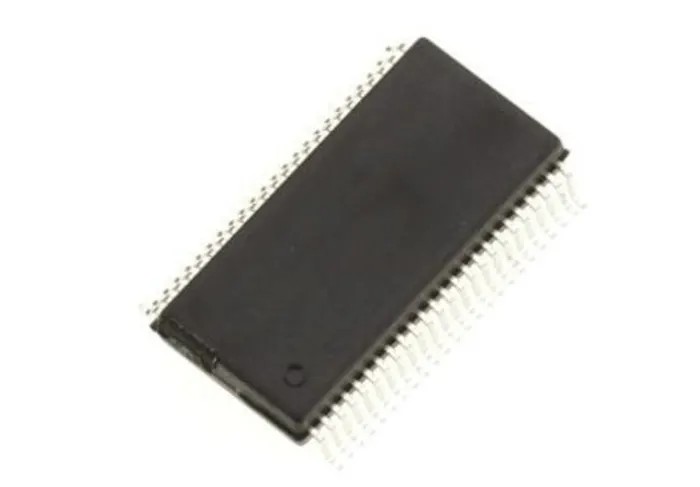

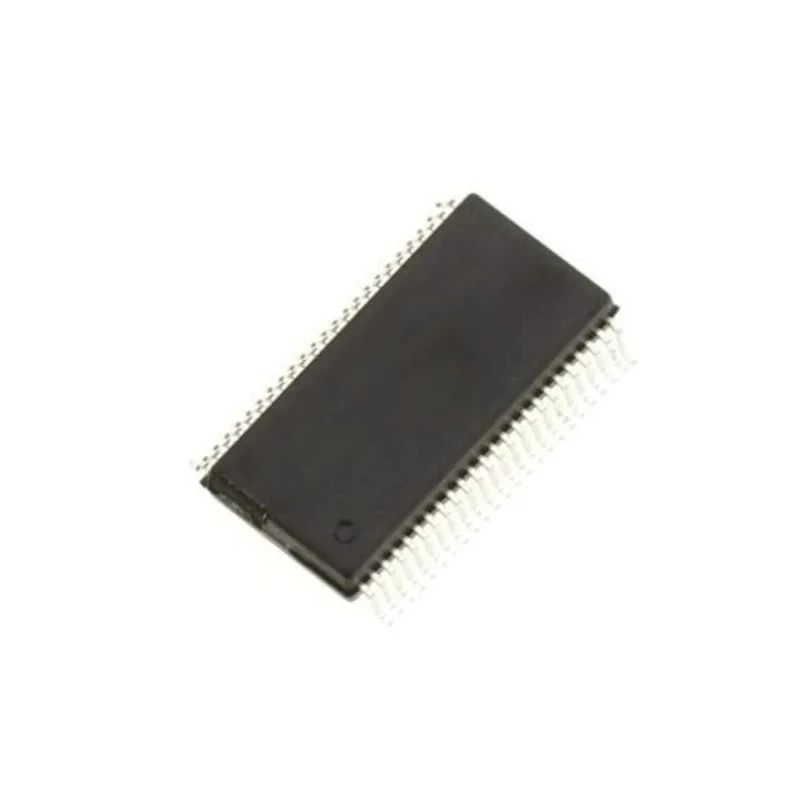

Renesas Electronics 8-Bit 3 State Bus Transceiver, Translating Transceiver, 48-Pin SSOP 74FCT164245TPVG8
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.3mm |
| Length | 15.9mm |
| Model | 74FCT164245TPVG8 |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74FCT |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Pin Count | 48 |
| Maximum Supply Voltage | 7V |
| Logic Family | 74 |
| Logic Function | Translating Transceiver |
| Minimum Supply Voltage | -0.5V |
| Maximum Propagation Delay Time @ CL | 5ns |
| Output Level | 3 State |
| Input Level | CMOS |
Key Features
- Designed for bidirectional interface between 3.3V and 5V buses.
- Features 8 channels to support data transmission.
- Supports control inputs driven from either 3.3V or 5V circuits.
- Offers high drive outputs on the 5V port for effective signal strength.
- Includes power off disable on both ports for safe live insertion.
- Compact SSOP package with 48 pins facilitates surface mounting on PCBs.
- Operates reliably over a wide temperature range of -40°C to 85°C.
- Maximum propagation delay time of 5 nanoseconds ensures fast switching.
Product Description
Renesas Electronics 74FCT164245TPVG8 is an 8-bit 3 state bus transceiver designed as a translating transceiver to facilitate communication between mixed 3.3V and 5V buses. Packaged in a compact 48-pin SSOP housing, it provides robust and reliable data transmission for various electronic and industrial applications.
This bus transceiver delivers high-speed operation with a maximum propagation delay of 5 nanoseconds, ensuring efficient data flow. It supports control inputs driven by either 3.3V or 5V voltage levels and features high-drive outputs capable of sourcing and sinking currents of -32mA and 64mA respectively on the 5V port, which is beneficial for demanding signal integrity requirements.
Designed to allow power off disable on both ports, the device permits live insertion without the risk of data corruption or damage to connected systems. It operates reliably within industry standard temperature ranges from -40°C to 85°C, ensuring suitability for harsh environments.
The 74FCT164245TPVG8 bus transceiver finds wide acceptance in semiconductor, industrial electronics, and electronic component sectors where precise voltage translation and bus interfacing are crucial. The SSOP package ensures ease of surface mounting on printed circuit boards optimizing board space.
Bidirectional interface supporting 3.3V and 5V bus communication. Eight channels for parallel data transmission. Control inputs compatible with 3.3V and 5V logic levels. High output drive strength on the 5V side. Power off disable functionality enabling safe live insertion.
Compact 48-pin SSOP surface mount package. Wide operating temperature range from -40°C to 85°C. Low propagation delay time ensuring high-speed switching. Reliable operation for industrial and electronic applications.
This product is ideal for incorporation into designs requiring precise voltage level translation between 3.3V and 5V buses, commonly found in modern electronic systems, embedded platforms, and industrial automation.
Explore more Bus Transceivers and semiconductor products on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum propagation delay time is 5 nanoseconds, ensuring high-speed data transmission.
It operates reliably within a temperature range of -40°C to 85°C.
This bus transceiver supports 8 channels for parallel data transmission.
It supports control inputs driven from either 3.3V or 5V circuits.
The device comes in a compact 48-pin SSOP package suitable for surface mounting.
The output type is 3 State, allowing for bidirectional communication.
The maximum supply voltage is 7V.
Yes, it includes power off disable functionality on both ports for safe live insertion.
The height of this model is 2.3mm.
It belongs to the 74 logic family.
It has high-drive outputs capable of sourcing and sinking currents of -32mA and 64mA respectively on the 5V port.
The country of origin for this product is India.
