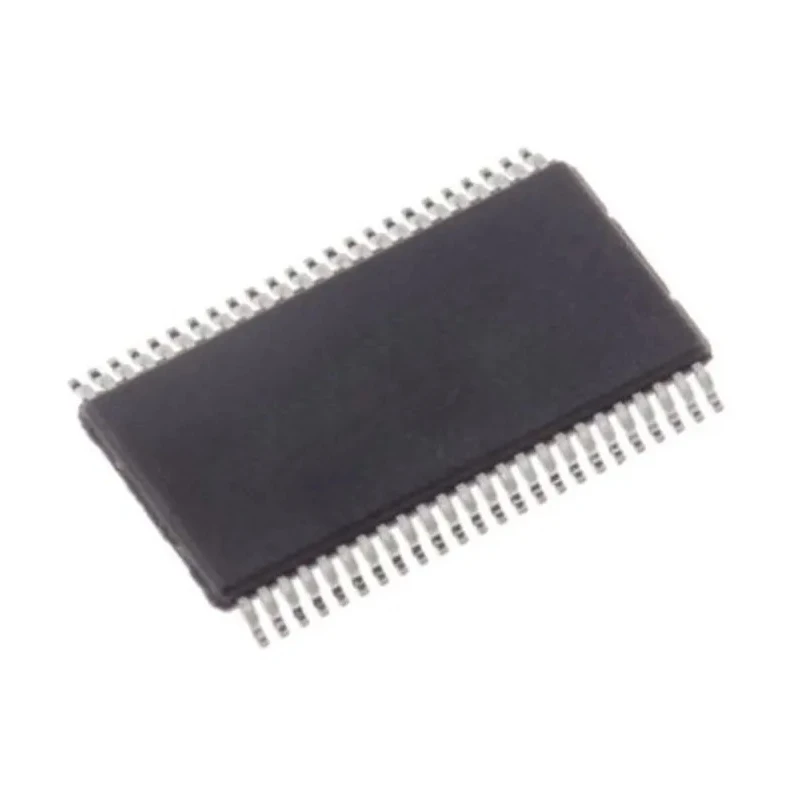

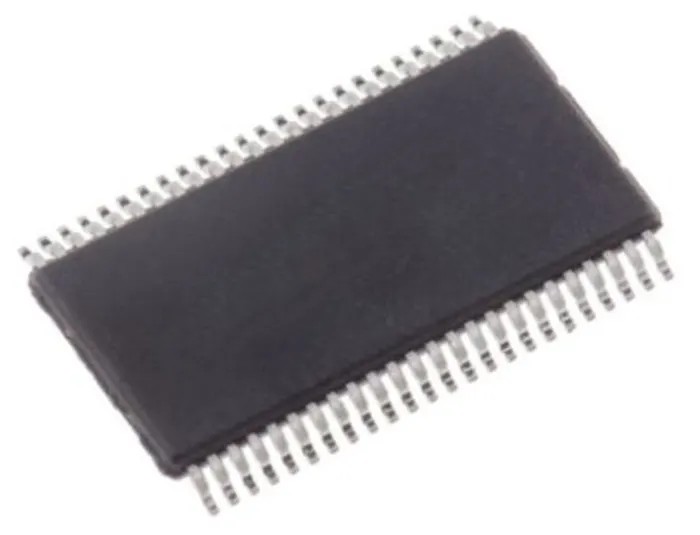

Renesas Electronics Bus Transceiver, 8-Bit 3 State, 48-Pin TSSOP 74FCT164245TPAG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1mm |
| Length | 12.5mm |
| Model | 74FCT164245TPAG |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74FCT |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Pin Count | 48 |
| Maximum Supply Voltage | 7V |
| Logic Family | 74 |
| Logic Function | Translating Transceiver |
| Minimum Supply Voltage | -0.5V |
| Maximum Propagation Delay Time @ CL | 5ns |
| Output Level | 3 State |
| Input Level | CMOS |
Key Features
- Operates as a translating transceiver between 3.3V and 5V buses.
- 8 channels support bidirectional data transmission.
- Surface mount package type ensures compatibility with compact PCB designs.
- Maximum propagation delay time is 5 nanoseconds at CL.
- Supports voltage operation from -0.5V to 7V supply range.
- Input level is CMOS compatible providing noise immunity.
- Operating temperature range from -40°C to +85°C for industrial applications.
- Output type supports 3 state logic for bus control.
Product Description
Renesas Electronics 74FCT164245TPAG is a high-performance 8-bit bus transceiver designed for mixed voltage environments, primarily interfacing between 3.3V and 5V bus systems. The device features 3 state outputs and supports bidirectional data transfer, making it suitable for industrial and electronic applications requiring flexible logic interfacing.
This 48-pin TSSOP package device operates with a minimum supply voltage of -0.5V and a maximum of 7V, allowing reliable operation across a broad supply range. It provides fast switching speeds with a maximum propagation delay time of 5 nanoseconds at CL, supporting high-speed logic circuits. The CMOS input level ensures immunity against electrical noise and enhances signal integrity.
Designed for surface mounting, the compact package size with a length of 12.5mm and height of 1mm aids in dense PCB layouts. The device functions effectively within an operating temperature range of -40°C to 85°C, making it suitable for industrial-grade applications including electronics manufacturing, embedded systems, and communication hardware.
Key features include high drive outputs (-32mA IOH, 64mA IOL) on the 5V port and power-off disable functionality on both ports, allowing "live insertion" without risk of damage or system downtime.
Operates as translating transceiver between 3.3V and 5V buses. Bidirectional 8-channel interface with 3 state outputs. Surface mount TSSOP 48-pin package for compact integration. Fast propagation delay time of 5 nanoseconds supports high-speed data transfer.
CMOS input levels with voltage tolerance from -0.5V to 7V. Wide operating temperature range suitable for industrial environments. Power off disable feature enables safe live insertion capability. Compact size with low profile height of 1mm.
This bus transceiver is ideal for industrial electronics, mixed-signal applications, communications equipment, and embedded system designs requiring robust and efficient bus interface solutions.
Explore more semiconductor and logic IC products on EnvMart to suit various electronic design requirements.
Explore more products in our Bus Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the 74FCT164245TPAG is 7V.
This model has a maximum propagation delay time of 5 nanoseconds at CL.
The operating temperature range for this device is from -40°C to 85°C.
It supports 8 channels for bidirectional data transmission.
The 74FCT164245TPAG uses a surface mount TSSOP package type.
The device supports CMOS input levels, which provide noise immunity.
The height of this bus transceiver is 1mm.
The output type supports 3 state logic for bus control.
Yes, it is designed for industrial applications with its wide operating temperature range and robust features.
The length of the 74FCT164245TPAG is 12.5mm.
Yes, it has a power-off disable feature that allows for safe live insertion without risk of damage.
This model is suitable for applications in industrial electronics, mixed-signal applications, and communication equipment.
