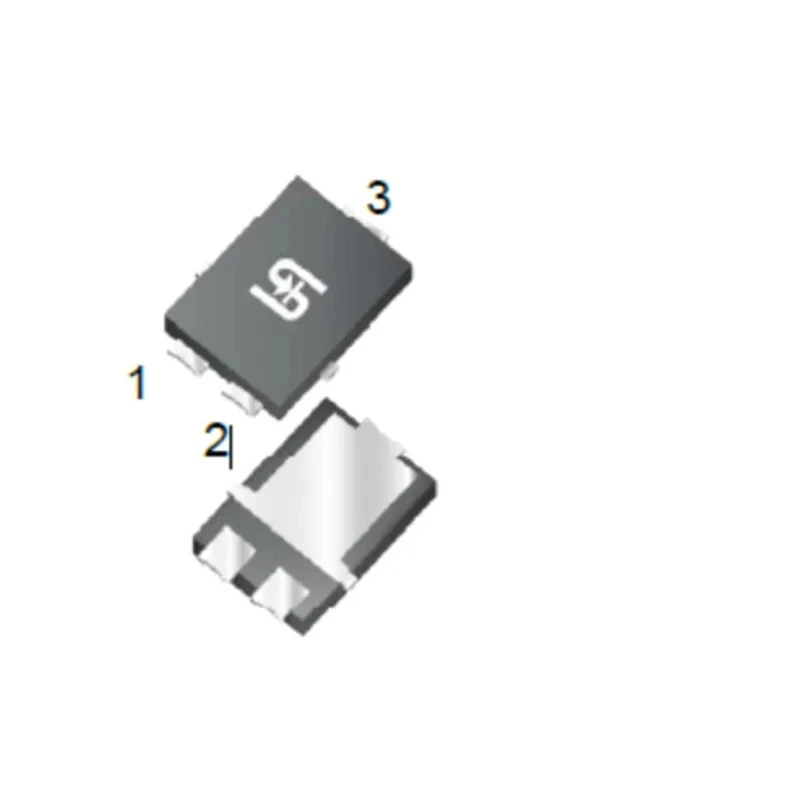

Taiwan Semiconductor 60 V 10 A Schottky Diode 3-Pin SMPC4 TSUP10M60SH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1mm |
| Length | 4.45mm |
| Model | TSUP10M60SH |
| Width | 6.35mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 175°C |
| Package Type | SMPC4 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 0.64V |
Key Features
- Maximum continuous forward current of 10 A ensures high load handling capability.
- Peak reverse repetitive voltage of 60 V suitable for low voltage power supply applications.
- Package type SMPC4 with a 3-pin PCB mount configuration for easy integration.
- Operating temperature range from -55°C to 175°C enables robust performance in harsh environments.
- AEC-Q101 automotive qualified for reliable usage in automotive electronics.
- Low forward voltage drop of 0.64 V reduces power loss and improves efficiency.
- Peak non-repetitive forward surge current up to 330 A for transient protection.
- Single diode configuration with peak reverse current of 15 mA for precise rectification.
Product Description
Taiwan Semiconductor TSUP10M60SH is a high performance Schottky diode designed for efficient power rectification in electronic circuits. Featuring a maximum continuous forward current rating of 10 A and a peak reverse repetitive voltage of 60 V, this diode supports moderate low voltage applications requiring fast switching and low forward voltage drop.
The diode comes in a 3-pin SMPC4 package suitable for PCB mounting, with compact dimensions of 4.45 mm length, 6.35 mm width, and 1 mm height to save circuit board space. Operable within a wide temperature range from -55°C to 175°C, it ensures reliable operation under severe industrial and automotive conditions.
This model complies with the AEC-Q101 automotive standard, making it ideal for automotive electronic components that demand high reliability. The diode's low forward voltage of 0.64 V helps reduce energy losses and improve power efficiency in switching circuits.
Additionally, the device can withstand a peak non-repetitive forward surge current of 330 A, providing excellent transient tolerance. Its peak reverse current rating of 15 mA allows precise cutoff in switching and rectifier applications.
Taiwan Semiconductor TSUP10M60SH Schottky Diode is suitable for a variety of industrial, automotive, power management, and electronic manufacturing applications requiring robust semiconductor diodes with high efficiency and durability.
Maximum continuous forward current of 10 A ensures high load handling capability. Peak reverse repetitive voltage of 60 V suitable for low voltage power supply applications. Package type SMPC4 with a 3-pin PCB mount configuration for easy integration.
Operating temperature range from -55°C to 175°C enables robust performance in harsh environments. AEC-Q101 automotive qualified for reliable usage in automotive electronics. Low forward voltage drop of 0.64 V reduces power loss and improves efficiency.
Peak non-repetitive forward surge current up to 330 A for transient protection. Compact dimensions: length 4.45 mm, width 6.35 mm, height 1 mm optimize PCB space. Single diode configuration with peak reverse current of 15 mA for precise rectification.
Explore the extensive range of Taiwan Semiconductor products and semiconductor diodes on EnvMart for your electronics manufacturing and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 10 A, which ensures high load handling capability.
This diode has a peak reverse repetitive voltage rating of 60 V, making it suitable for low voltage power supply applications.
It comes in a 3-pin SMPC4 package type, designed for PCB mounting, facilitating easy integration into electronic circuits.
The operating temperature range for this model is from -55°C to 175°C, allowing reliable performance in harsh environments.
Yes, this model is AEC-Q101 automotive qualified, ensuring reliable usage in automotive electronics.
The forward voltage drop is 0.64 V, which helps reduce power loss and improve efficiency in switching circuits.
This diode can withstand a peak non-repetitive forward surge current of up to 330 A, providing excellent transient protection.
The dimensions of this Schottky diode are 4.45 mm in length, 6.35 mm in width, and 1 mm in height.
The peak reverse current rating for this diode is 15 mA, allowing for precise cutoff in switching and rectifier applications.
This model features a single diode configuration, which is typical for Schottky diodes used in rectification.
It is suitable for a variety of applications in industrial, automotive, power management, and electronic manufacturing sectors.
The country of origin for this Schottky diode is India.
