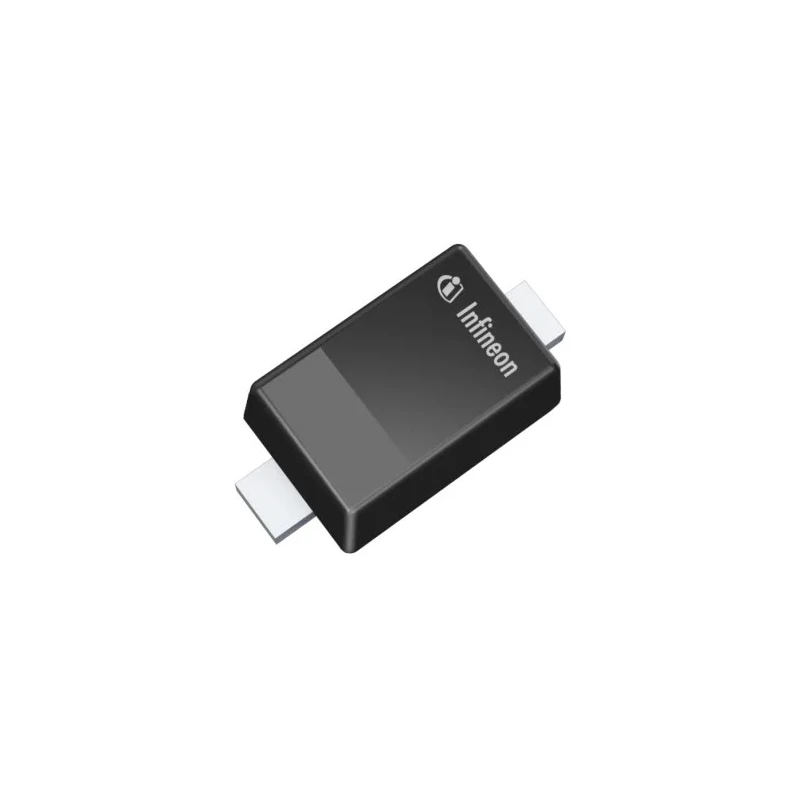

Infineon 3 V 100 mA Surface Mount Schottky Diode 2-Pin SC-79 BAT6202VH6327XTSA1

The Infineon BAT6202VH6327XTSA1 is a Schottky diode designed for high speed switching applications with a maximum continuous forward current of 100 mA and a peak reverse repetitive voltage of 3 V. Its surface mount package (SC-79) enables compact and low-profile PCB assembly.

This device features a low forward voltage drop of 1 V which improves energy efficiency and reduces power loss. The diode configuration is common anode with 2 pins, making it suitable for various semiconductor circuit designs.

Dimensionally compact, the diode measures 1.2 mm in length, 0.8 mm in width, and 0.55 mm in height, facilitating its use in densely populated electronic assemblies. It has a peak reverse current of 10 μA, ensuring low leakage in high-frequency switching environments. The device is lead-free, meeting modern environmental standards.

Typical industrial applications include wireless communications equipment, satellite receivers, base stations, RFID systems, and high-speed data networks. Surface mount type suitable for compact PCB designs. Maximum continuous forward current of 100 mA.

Peak reverse repetitive voltage rating of 3 V providing low voltage drop. Common anode configuration with 2 pins. Low forward voltage of 1 V enhances efficiency. Compact dimensions: length 1.2 mm, width 0.8 mm, height 0.55 mm.

Peak reverse current maximum of 10 μA supports low leakage. Pb-free construction compliant with environmental standards. Ideal for wireless communications, satellite receivers, base stations, RFID, and high-speed data networks.

This diode is categorized under Schottky Diodes in semiconductor components on EnvMart, suitable for industrial and commercial electronics manufacturing and repair.
