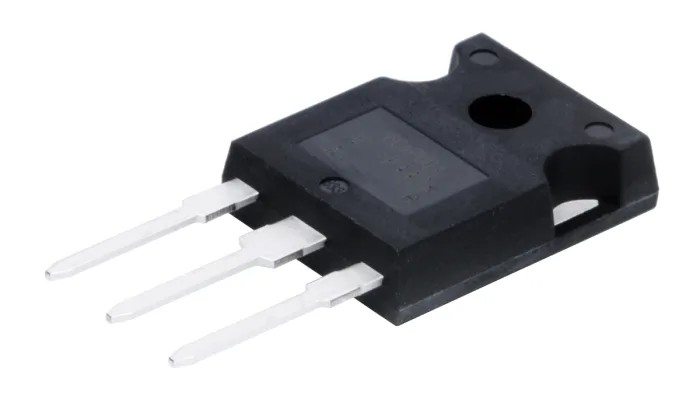

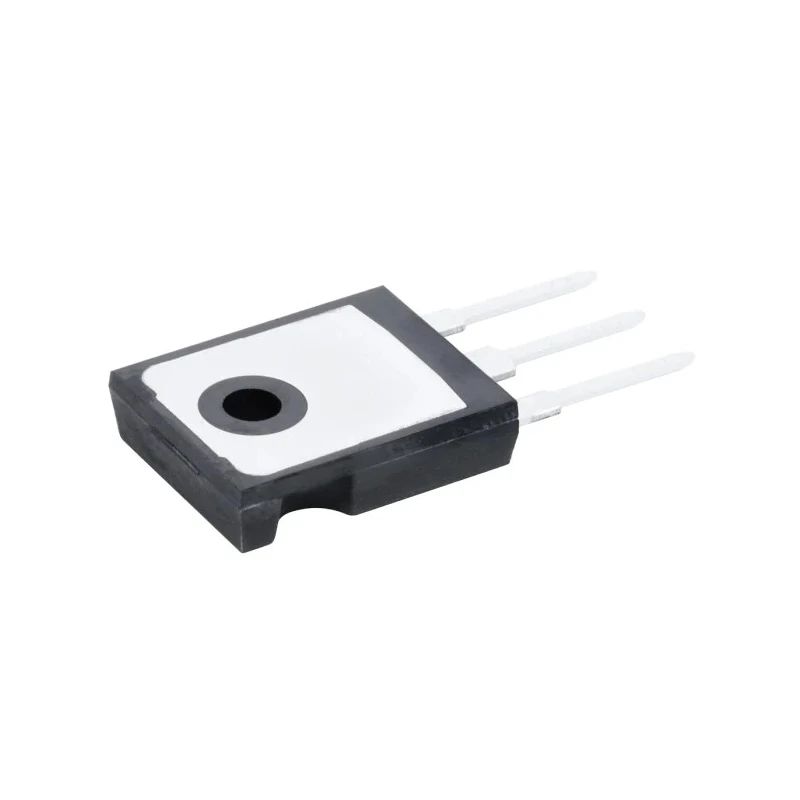

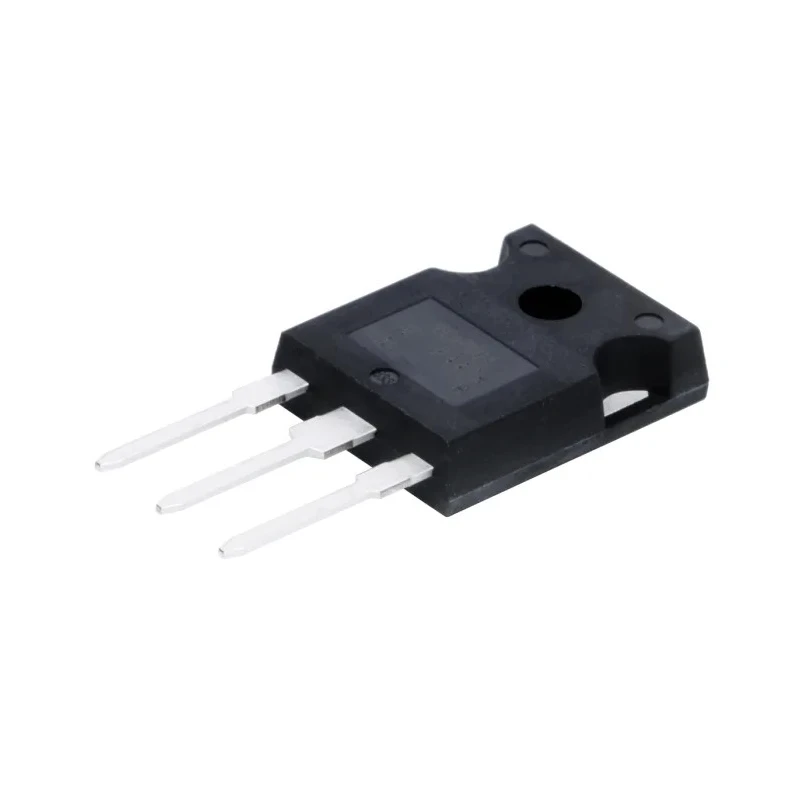

Vishay 400 V 60 A Switching Diode 3-Pin Through Hole TO-247AC VS-60APU04-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-60APU04-N3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VS-60 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 60ns |
| Vishay 400V 60A, Silicon Junction Diode, 3-Pin TO-247AC 60APU04Brand | Vishay |
Key Features
- Maximum continuous forward current of 60 amperes for high current applications.
- Peak reverse repetitive voltage rating of 400 volts ensures reliable switching performance.
- Ultrafast recovery with peak reverse recovery time of 60 nanoseconds.
- Operates reliably between -55°C and 175°C temperature range.
- Compact TO-247AC 3-pin package with dimensions length 15.87 mm and height 20.7 mm.
- Maximum forward voltage drop of 1.25 volts minimizing conduction losses.
- Peak non-repetitive forward surge current up to 600 amperes enhances transient tolerance.
- Very low peak reverse current of 50 microamperes for reduced leakage.
Product Description
Vishay VS-60APU04-N3 switching diode is a high-performance discrete semiconductor device designed for demanding power electronics applications. This diode is enclosed in a through-hole TO-247AC 3-pin package, providing robust mechanical stability and ease of mounting in industrial electronic assemblies.
It supports a maximum continuous forward current of 60 A and a peak reverse repetitive voltage up to 400 V, making it suitable for switching and rectification tasks in power converters, inverters, and other high current circuits. The device features ultrafast recovery with a peak reverse recovery time of 60 ns, which is essential for high-frequency switching applications to minimize loss and improve efficiency.
This diode operates reliably between temperatures of -55°C and 175°C, ensuring durability in harsh electrical and environmental conditions common in industrial, automotive, and manufacturing systems. The compact dimensions of 15.87 mm length, 20.7 mm height, and 5.31 mm width simplify integration into circuit boards where space is at a premium.
Maximum continuous forward current of 60 A. Peak reverse repetitive voltage rating of 400 V. Ultrafast recovery time of 60 ns. Operating temperature range from -55°C to 175°C. Compact TO-247AC 3-pin through hole package design.
Maximum forward voltage of 1.25 V. High surge current capacity of 600 A non-repetitive forward surge current. Low peak reverse current of 50 μA. Single diode configuration optimized for power switching. Ideal for industrial power electronics, automotive controls, and laboratory equipment.
This diode embodies Vishay's reputation for high quality and reliability in semiconductor solutions used globally. Its combination of electrical performance and mechanical durability makes it indispensable for engineers seeking efficient and dependable rectifiers and Switching Diodes in power management, industrial automation, and electronic device manufacturing.
Explore the comprehensive range of Vishay semiconductor components available on EnvMart to meet diverse electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 60 A, making it suitable for high current applications.
The peak reverse repetitive voltage rating of this model is 400 V, ensuring reliable switching performance in various applications.
This diode features a peak reverse recovery time of 60 nanoseconds, which is beneficial for high-frequency switching applications.
It operates reliably between -55°C and 175°C, making it suitable for harsh environmental conditions.
The dimensions of the TO-247AC package are 15.87 mm in length, 20.7 mm in height, and 5.31 mm in width.
The maximum forward voltage drop is 1.25 V, which helps minimize conduction losses during operation.
This diode can handle a peak non-repetitive forward surge current of up to 600 A, enhancing its transient tolerance.
The peak reverse current is 50 microamperes, which helps reduce leakage in the circuit.
This model supports through-hole mounting, providing robust mechanical stability in electronic assemblies.
The diode configuration is single, optimized for power switching applications.
This diode is part of the VS-60 series, known for its high-performance characteristics in power electronics.
The country of origin for this diode is India.
