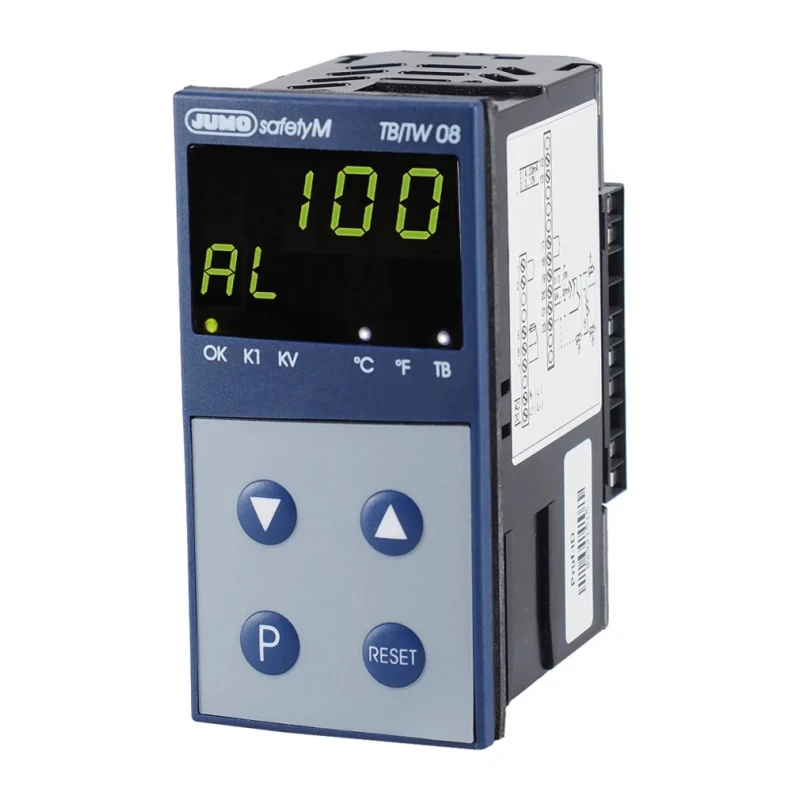

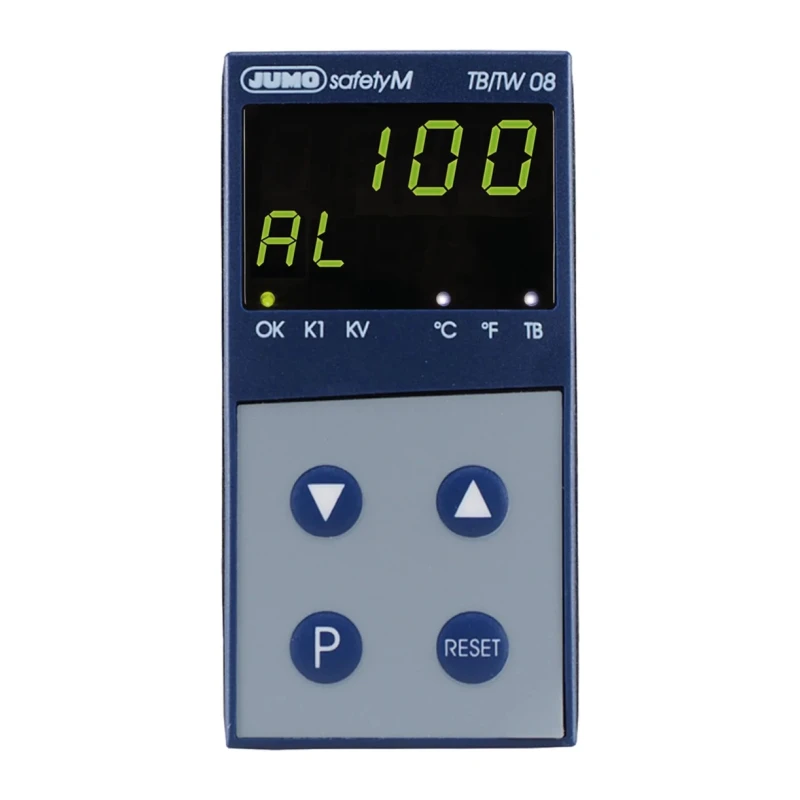

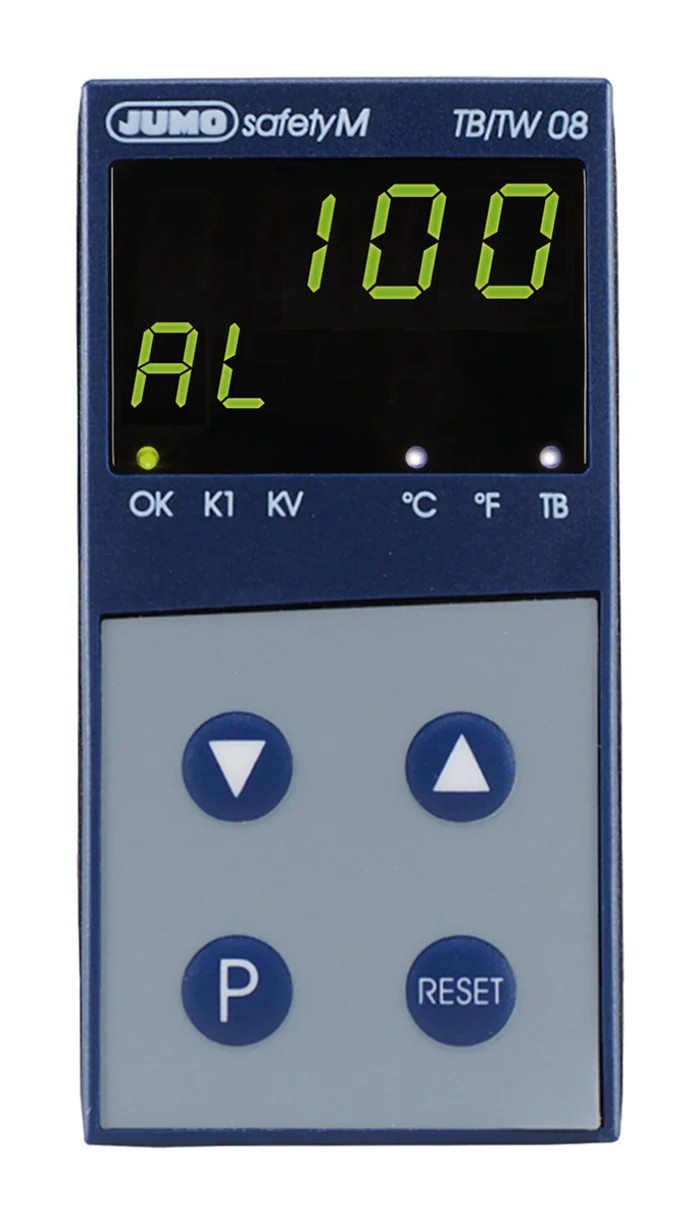

Jumo TB/TW 08 Panel Temperature Limiter 1 Input 2 Output Relay 3A Maximum Current 240V On-Off 701170/8-0153-1001-23/000

Jumo 701170/8-0153-1001-23/000 Panel Temperature Limiter is a high-quality device designed for accurate temperature monitoring and limitation in industrial and process control environments. It supports a single input and two output relay channels with a maximum current rating of 3A and a maximum supply voltage of 240V, suitable for On-Off control systems.

The device is freely programmable to accept inputs from RTD temperature probes, thermocouples, as well as current and voltage signals, providing flexibility for a variety of thermal process applications. It features a digital input filter with an adjustable time constant to ensure stable and precise readings.

Safety and control are enhanced by its pre-alarm function which can be set as an absolute value or relative distance to the limit, and flexible configuration options as either TB or TW types with 17 different linearization settings to match specific measurement needs. The limiter also offers both internal and external unlocking methods to meet various operational requirements.

Equipped with two Pt100 inputs, it allows for differential temperature calculations, which expands its applicability in complex monitoring setups. The unit is designed for panel mounting with compact dimensions of 48mm width and 67mm panel depth, and it provides robust protection with an IP65 rating on the front, ensuring suitability in harsh environments.

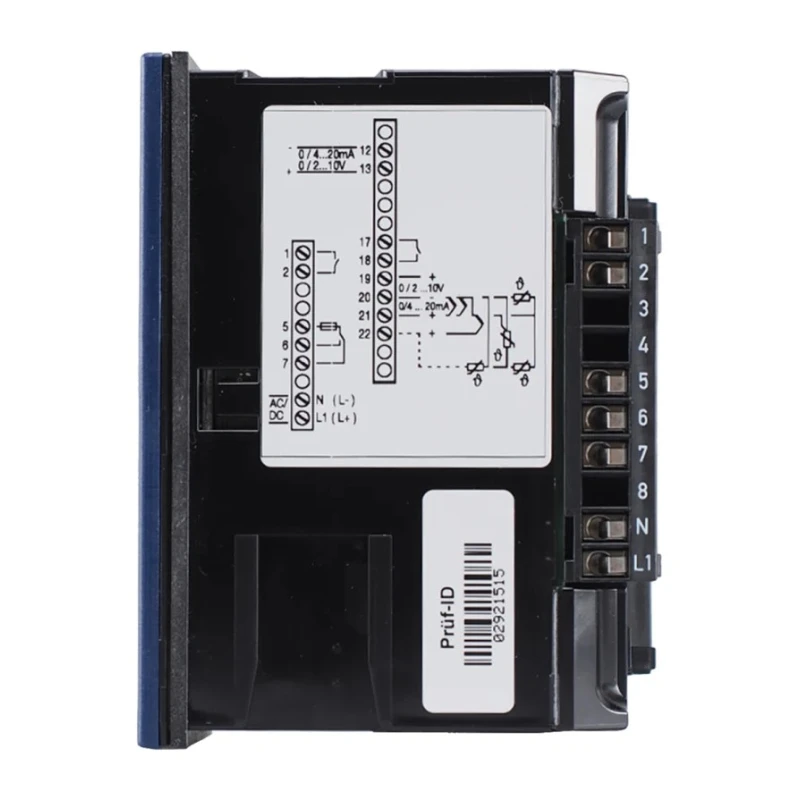

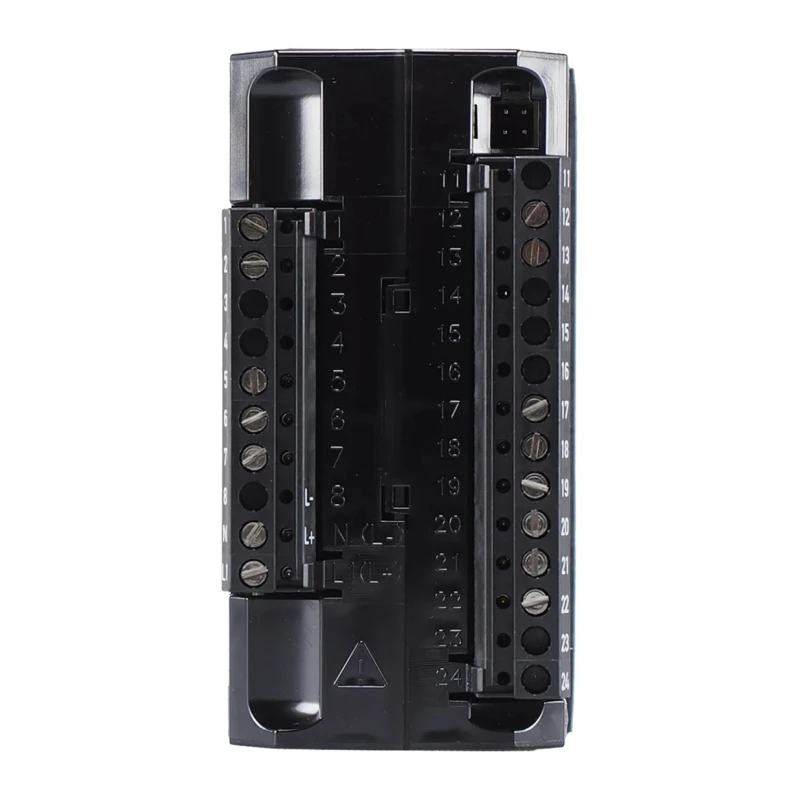

Installation is simplified with plug-in screw terminals supporting cables up to 2.5mm². The device can be configured and archived via PC software, facilitating easy setup and maintenance. Its compliance with multiple international standards including c UL us (UL 60730-2-9), DIN EN 14597, and DIN EN 61326 underscores its quality and reliability.

This temperature limiter is ideal for industrial, laboratory, manufacturing, HVAC, and process control applications requiring precise temperature limitation and safety monitoring.

Choose the Jumo TB/TW 08 Panel Temperature Limiter for dependable performance and versatile control in your thermal management systems. Explore more products within the Temperature Controllers category on EnvMart for complementary solutions.

Freely programmable temperature limitation device for flexible thermal process monitoring. Supports programming for RTD temperature probes, thermocouples, current, and voltage signals. Digital input filter with adjustable filter time constant for stable measurements.

Features pre-alarm capability adjustable as absolute or relative to the limit value. Configurable as TB or TW with 17 linearizations available for diverse applications. Internal and external unlocking for enhanced operational safety.

Two Pt100 inputs support differential value calculations. Designed for panel mounting with a front protection class of IP65 for durability. Screw terminals accept cables up to 2.5mm² for secure connections. Setup and configuration via PC software for easy parameter adjustments and archiving.

Operates with maximum current of 3A and control voltage of up to 240V.
