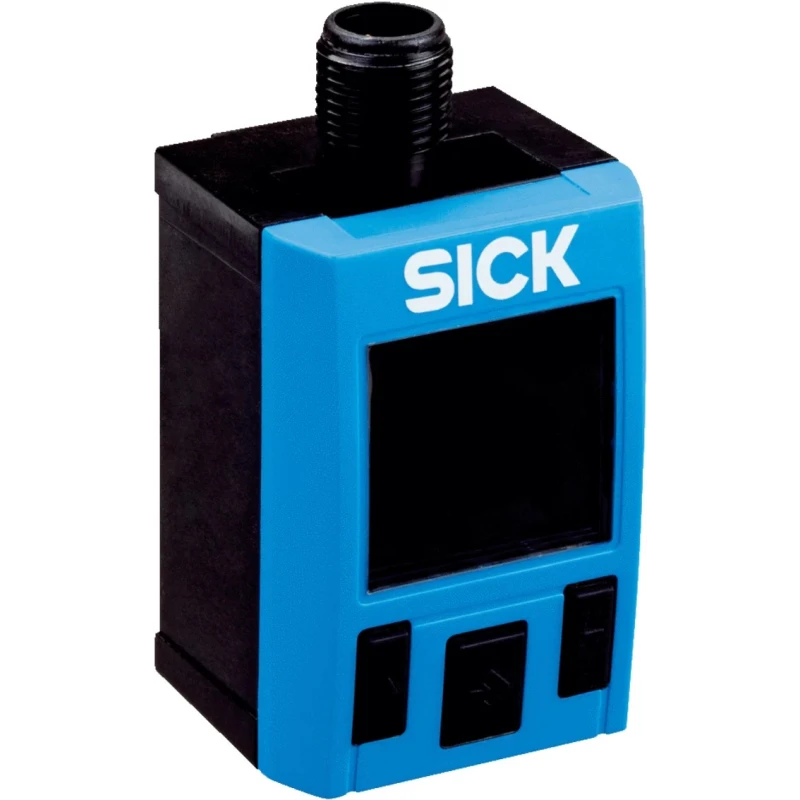

SICK Pressure Switch 1/4 in Port Size -1 bar to 0 bar Gauge Pressure 30V DC 40mA Output PAC50-AGB PAC50-AGB / 1062946
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 30V dc |
| Brand | SICK |
| Maximum Operating Pressure | 0 bar |
| Current | 40mA |
| Height | 63mm |
| Model | PAC50-AGB / 1062946 |
| Depth | 35mm |
| IP Rating | IP65, IP67 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | PAC50-AGB |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Gauge Pressure |
| Switch output | PNP, NPN, 0 to 10 V, Push Pull + 4 mA to 20 mA |
| Port Size | 1/4 in |
| Minimum Operating Temperature | 0°C |
| Analogue Output | 4-20 mA, 0-10V |
| Connection Thread Standard | G |
| Minimum Operating Pressure | -1bar |
| Port Gender | Female |
| Suitable Medias | Gas, Air |
| Standards/ApprovalsEN 61326-2-3, EMC Directive | 2004/108/EC |
Key Features
- The switch offers multiple output options including PNP, NPN, 0 to 10 V, Push Pull, and 4 mA to 20 mA analog signals.
- Designed for use with gases and air, it features gauge pressure measurement suitable for vacuum and overpressure conditions.
- Mounting is DIN Rail type for convenience and flexibility.
- The device has IP65 and IP67 enclosure ratings, ensuring high protection against dust and water.
- Includes a large bi-color display with LED indicators for clear status visualization.
- It supports two independently programmable switching outputs and an optional analog output.
- Operating temperature ranges from 0°C to 60°C with a compact size of 63mm (H) x 35mm (W) x 35mm (D).
- Manufactured in Thailand with compliance to EN 61326-2-3 and EMC Directive 2004/108/EC standards.
Product Description
SICK PAC50-AGB Pressure Switch is a highly reliable vacuum and gauge pressure switch designed for industrial pneumatic and vacuum applications. With a measuring range from -1 bar to 0 bar, it supports vacuum pressure and offers accurate monitoring and control of compressed air and non-corrosive gases.
This pressure switch features a 1/4 inch female port with a G thread connection standard, suitable for DIN rail mounting for easy installation. It operates at 30V DC and delivers a current output of 40mA. The versatile switch output supports PNP, NPN, analog voltage from 0 to 10 V, push-pull outputs, and analog current signals from 4 mA to 20 mA, allowing integration into various control systems.
The device’s IP65 and IP67 ratings indicate its ruggedness and suitability for harsh industrial environments with dust and water exposure. The large bi-color display and three function keys offer intuitive menu navigation and quick commissioning. The switch provides two independently programmable digital outputs and an optional analog output for enhanced control capabilities.
Typical applications include compressed-air monitoring in machinery, vacuum monitoring in robotics, leakage detection in compressed air systems, and pneumatic pressure maintenance.
The compact design with dimensions 63mm height, 35mm width, and 35mm depth, along with LED indicators, enhances usability in tight spaces. The device complies with EN 61326-2-3 and the EMC Directive 2004/108/EC, ensuring electromagnetic compatibility and reliable operation.
Manufactured in Thailand, the PAC50-AGB pressure switch delivers precise vacuum pressure control for industrial, laboratory, HVAC, and manufacturing environments, offering cost-efficient, flexible, and reliable pressure sensing and switching solutions.
The switch offers multiple output options including PNP, NPN, 0 to 10 V, Push Pull, and 4 mA to 20 mA analog signals. Designed for use with gases and air, it features gauge pressure measurement suitable for vacuum and overpressure conditions.
Mounting is DIN Rail type for convenience and flexibility. The device has IP65 and IP67 enclosure ratings, ensuring high protection against dust and water. Includes a large bi-color display with LED indicators for clear status visualization.
It supports two independently programmable switching outputs and an optional analog output. Operating temperature ranges from 0°C to 60°C with a compact size of 63mm (H) x 35mm (W) x 35mm (D). Manufactured in Thailand with compliance to EN 61326-2-3 and EMC Directive 2004/108/EC standards.
Explore more industrial Pressure Switches available on EnvMart for advanced pneumatic and vacuum system management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a measuring range from -1 bar to 0 bar, suitable for vacuum pressure and gauge pressure applications.
The switch supports multiple output options including PNP, NPN, 0 to 10 V, Push Pull, and 4 mA to 20 mA analog signals.
It features a 1/4 inch female port with a G thread connection standard.
The dimensions are 63mm in height, 35mm in width, and 35mm in depth.
It operates within a temperature range of 0°C to 60°C.
The current output is 40mA.
It is designed for DIN Rail mounting, providing convenience and flexibility during installation.
It has IP65 and IP67 ratings, ensuring protection against dust and water exposure.
It is designed for use with gases and air.
It complies with EN 61326-2-3 and the EMC Directive 2004/108/EC standards.
It includes a large bi-color display with LED indicators for clear status visualization and three function keys for intuitive menu navigation.
Typical applications include compressed-air monitoring in machinery, vacuum monitoring in robotics, and leakage detection in compressed air systems.
