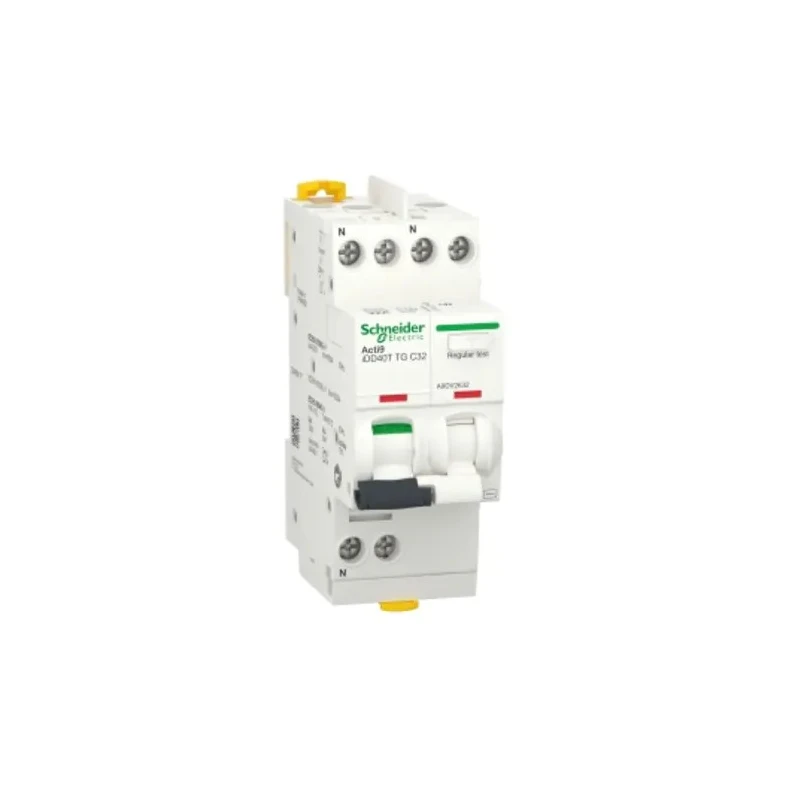

Schneider Electric Residual Current Circuit Breaker with Overload Protection 40A 230V AC Type C Thermal Magnetic A9DV2640

Schneider Electric A9DV2640 is a Residual Current Circuit Breaker with Overload Protection designed for reliable and safe electrical distribution applications. Operating at 230V AC with a current rating of 40A, this circuit breaker features a Type C thermal magnetic trip mechanism that protects circuits from overload and short circuit conditions effectively.

This product features a single-pole design, making it suitable for residential and light commercial installations. The device incorporates 30mA trip sensitivity for earth leakage protection, ensuring safety against electric shock hazards. It mounts effortlessly on standard DIN rails in electrical panels, simplifying installation and maintenance.

With compact dimensions measuring 85mm in height, 73mm in depth, and 36mm in width, the A9DV2640 is space-efficient while offering high breaking capacity of 10kA. Its toggle switch actuator allows easy manual operation with clear ON/OFF and trip indication. The device complies with international standards EN/IEC 60947-2 and RoHS directives, attesting to its quality and environmental compliance.

This residual current device has an impulse withstand voltage rating of 4 kV and an electrical durability of 20,000 operation cycles, highlighting its robustness and reliability. The operating ambient temperature range from -5°C to 60°C ensures stable performance in diverse environments. Additional safety feature includes a padlockable mechanism for circuit protection during maintenance or in critical applications.

The Schneider Electric Acti9 series offers premium classed protection with a thermal magnetic trip unit technology that integrates instantaneous earth-leakage detection and a time delay to avoid nuisance tripping. Ideal for distribution boards and overcurrent protection scenarios, this RCBO enhances electrical safety in residential and light industrial settings.

Equipped with 1-pole configuration for precise overload protection. Offers 30mA trip sensitivity ensuring reliable earth leakage protection. Mounts easily on DIN rail for convenient installation. Compact dimensions of 85mm height, 73mm depth, and 36mm width.

Complies with EN/IEC 60947-2 and RoHS standards for safety and environmental compliance. Features toggle switch actuator with ON/OFF and trip indicator. Designed to withstand impulse voltage up to 4 kV. Electrical durability rated for 20,000 cycles ensuring long service life.

Suitable for residential and distribution overcurrent protection applications. Padlockable for added circuit security and safety.

Ideal for use in electrical distribution, residential installations, and general overcurrent protection, Schneider Electric’s A9DV2640 is engineered to provide dependable performance and enhanced safety. Explore more electrical protection devices and Schneider Electric products in the Electronics & Electricals category at EnvMart.
